Integra CUSA Clarity System - Cart Base Plate Replacement Ref. S72905007

This document contains proprietary and confidential information of Integra LifeSciences Corporation. Integra’s confidential information may not be used, disclosed or reproduced without the prior wrien consent of Integra LifeSciences Corporation.
CUSA® Clarity System Service and Maintenance Manual Page 77 of 117 0645403-2-EN

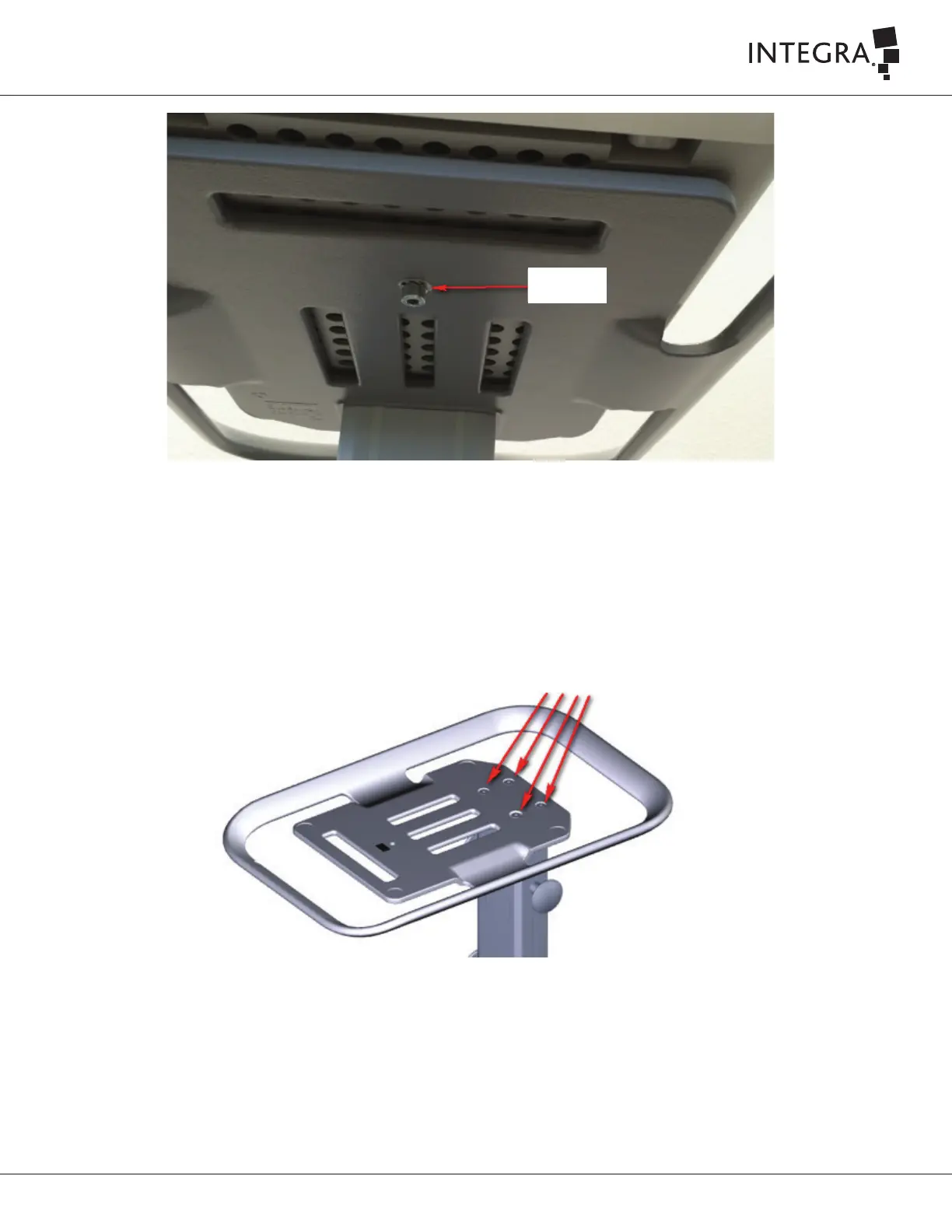

Figure 9-6
9.6 Cart Base Plate Replacement Ref. S72905007
Removal
Remove CUSA Clarity Console from the Cart according to Section 9.4 Disassembling CUSA Clarity Console from Cart.
• Remove the 4 x SCREW, SOCKET HEAD CAP, M8x50 MM Ref. S72905358 and the WASHER, EXTERNAL TOOTH, M8 Ref. S72905359 as shown
in Figure 9-7.
Figure 9-7
Screw
Unscrew
