Figure 9-8

Reinstall CUSA Clarity Console on the Cart according to section 9-5 Assembling CUSA Clarity Console on Cart.

NOTE

Cart Base Plate Replacement (Ref. S72905007) includes Screws and Washer.

9.7 Cart Vacuum Canister Holder Replacement Ref. S72905009

Removal

Remove the 2 x SCREW CAP, GRAY, M5/M6 Ref. S72905362, unscrew the 2 x SCREW, FLAT-HEAD SOCKET CAP, M6X12 MM Ref. S72905360

and the WASHER, EXTERNAL TOOTH, M6 Ref. S72905361 as shown in Figure 9-9.

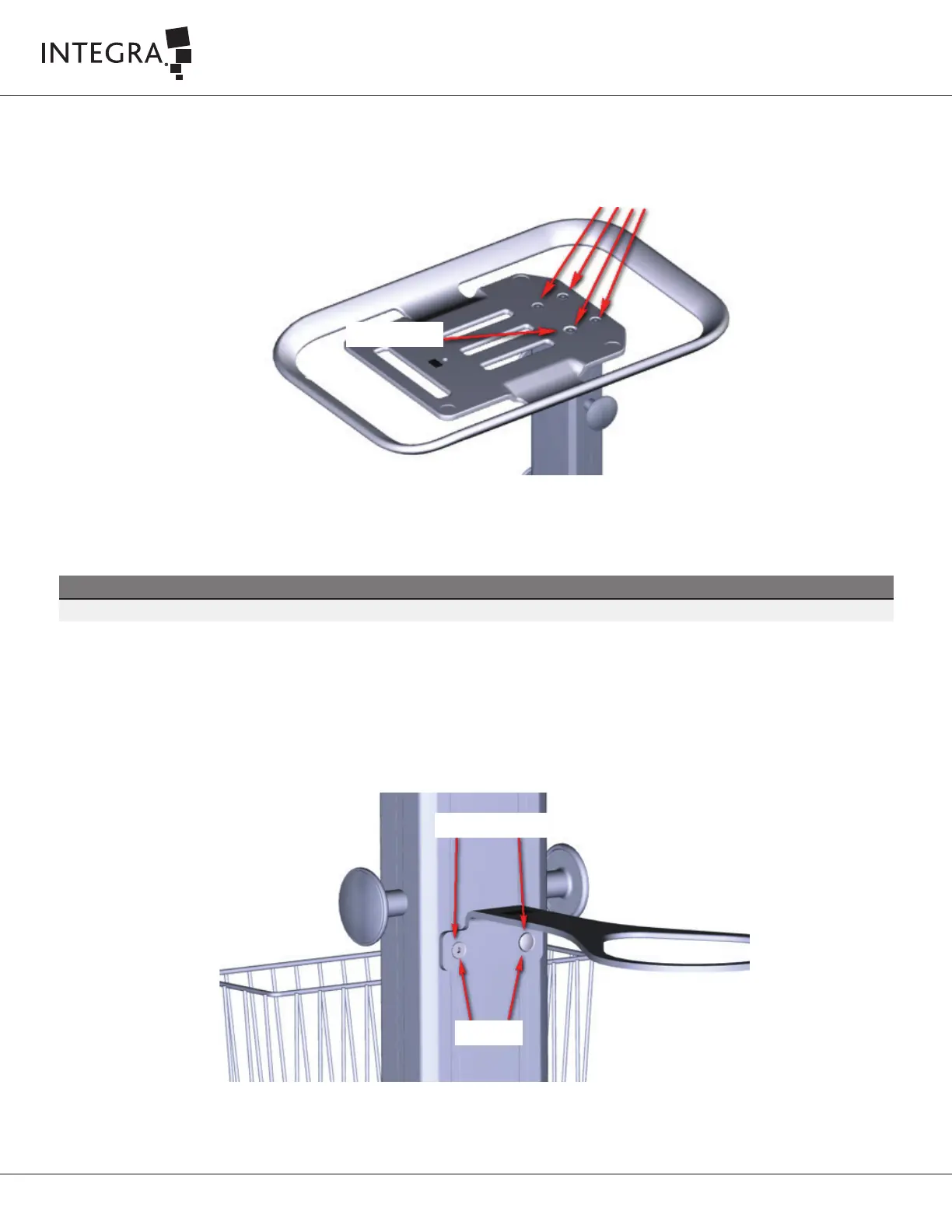

Figure 9-9

Installation

Reﬁt the 4 x SCREW, SOCKET HEAD CAP, M8x50 MM Ref. S72905358 and the WASHER, EXTERNAL TOOTH, M8 Ref. S72905359 as shown in Figure 9-8.
