Table 7-3 Functional Test Equipment and Tools

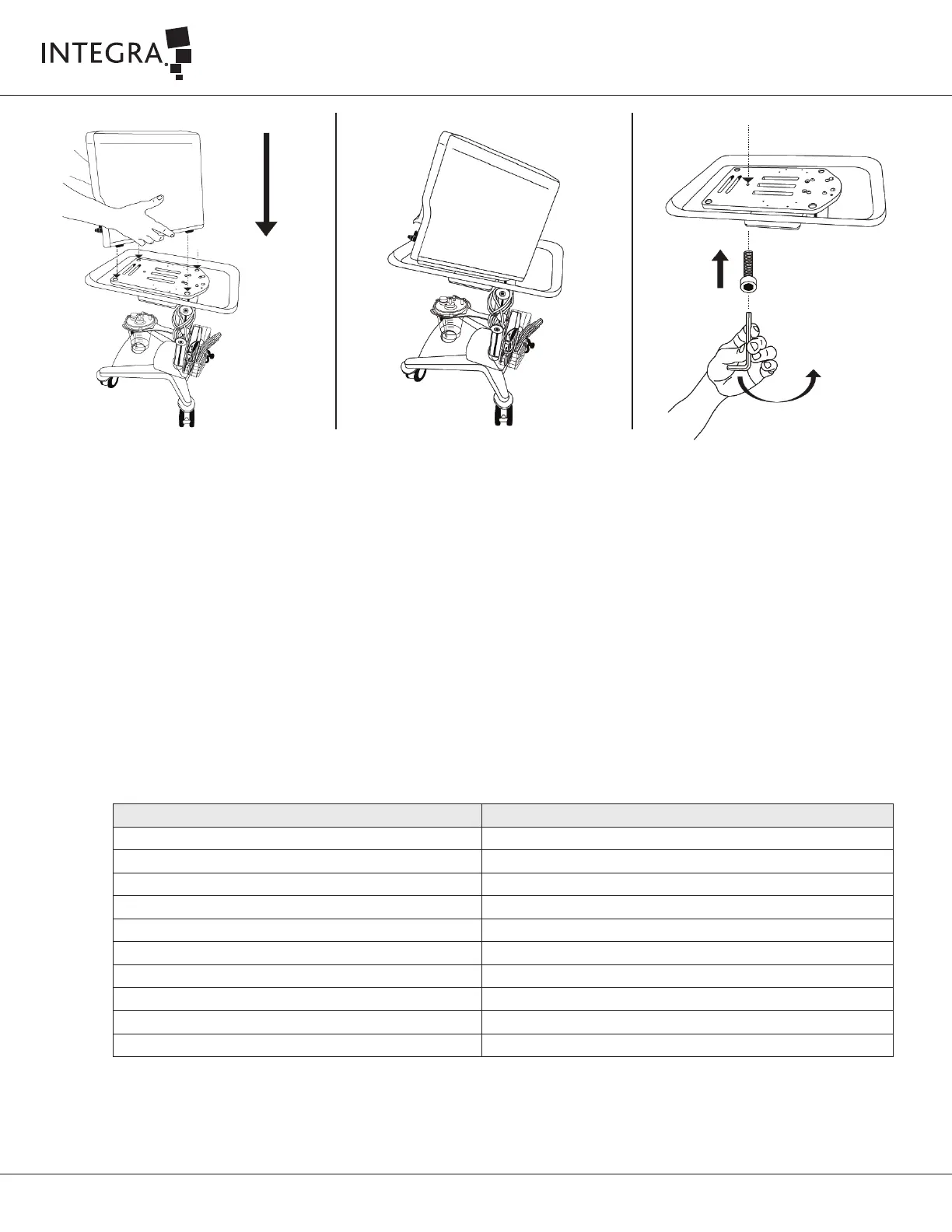

• Inspect cart for damage
• Inspect cart wheels for proper rotation and direction
• Inspect the connection aaching the console to the cart.
• Check that all four rubber feet on the console are in place, aligned with the indentations on the cart, and are not damaged.
7.8 Electrical Safety Tests
The electrical safety tests are required to meet the requirements specified in IEC 62353, Edition 2.0 2014-9. Refer to Integra Global Service and Repair
Procedure IT0738 for instructions to complete the tests. This Integra Global Service and Repair Procedure IT0738 and test datasheet are located in
Appendix A.
To reduce the risk to the service technician, perform and pass an electrical test before engaging in any service or maintenance activity on a CUSA
Clarity System.
7.8.1 Required Equipment and Tools
Equipment/Tools Description
Safety Analyzer Rigel 288 or Rigel 62353 or Fluke ESA620 or equivalent
Digital Multi-meter Keysight 34461A, Fluke 187 or equivalent
CUSA® Clarity console mains cable Fied with the console
CUSA® Clarity 36 kHz Handpiece Integra Ref. C7036
CUSA® Clarity 36 kHz Curved Ext MicroTip (Single Pack) Integra Ref. C7414
CUSA Clarity Quick Connect™ Tubing Set (Single pack) Integra Ref. C7300EA
Waste canister Bemis BEH484410 or equivalent
Jar of water Any 1-liter jar
Contamination guard Integra Ref. C7005
CUSA® Clarity footswitch Integra Ref. C7002
