Console – Rear Panel

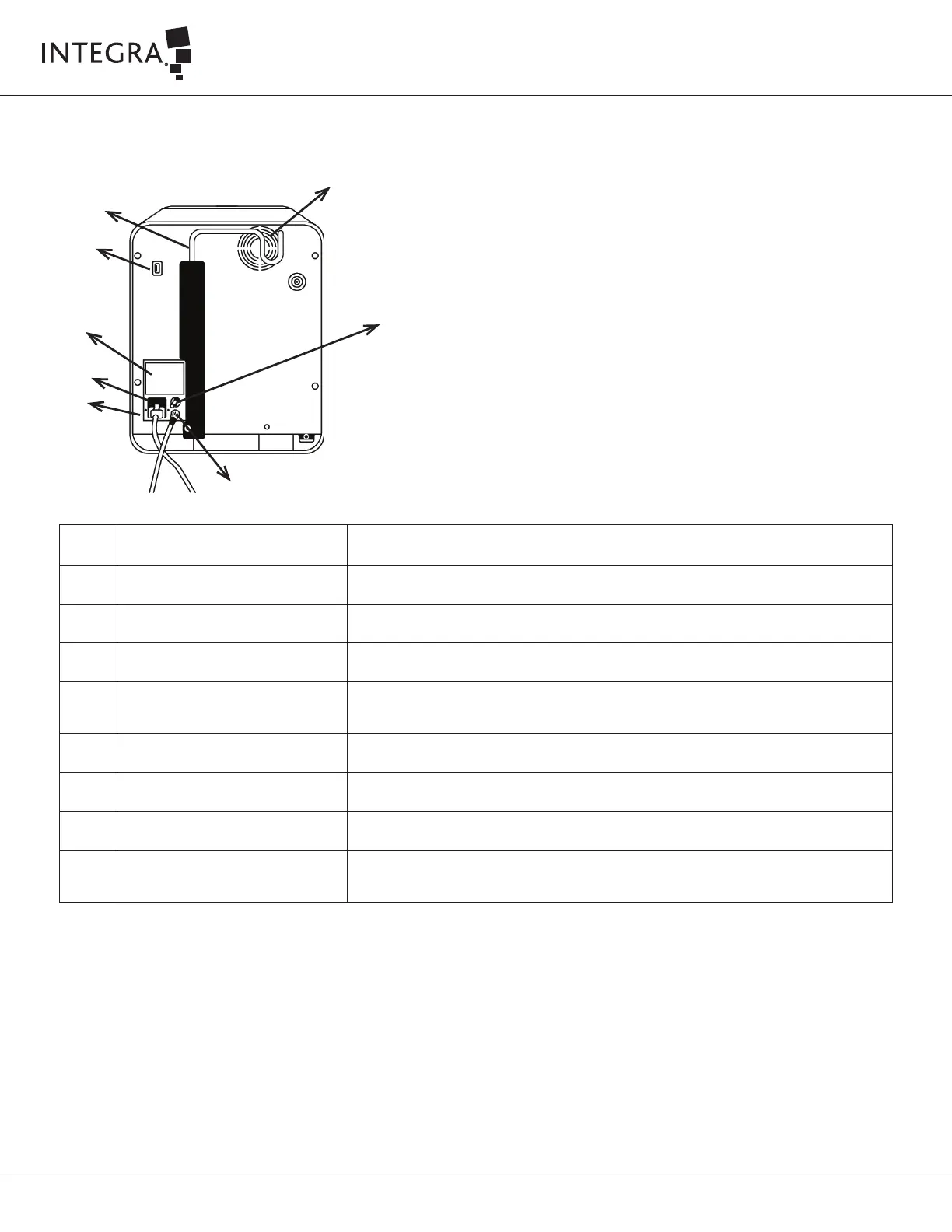

The figure illustrates the rear view of the console. The components are described in the table.
Component Description
➀
System Fan Vent Fan keeps internal system cool.
➁
Potential Equalization Terminal For use in locations where Potential Equalization Conductors are used.
➂
Footswitch Cable Connector Connects the footswitch to the console.
➃
AC Power Cord Connector
Connects the system to the Mains power supply.
A safety feature prevents the power cord from being accidentally unplugged.
➄
Fuses Protect the system from electrical overloads.
➅
Labels Displays the console model number, serial number and regulatory approvals.
➆
USB Connector Used for service
➇
I.V. Pole
Supports the sterile irrigation fluid container. The pole must be raised to use it. The pole can be
lowered when not in use. The safe working load for the I.V. pole is 2 kg.
➀
➁
➂
➃
➄
➅
➆
➇
