25
Connecting the AV receiver—Continued
• With connection , you can listen to and record audio from your TV or listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 as well, use and , or
and .)
If your TV has no audio outputs, connect an audio output from your VCR or cable or satellite receiver
to the AV receiver and use its tuner to listen to TV programs through the AV receiver (see pages 27 and
29).

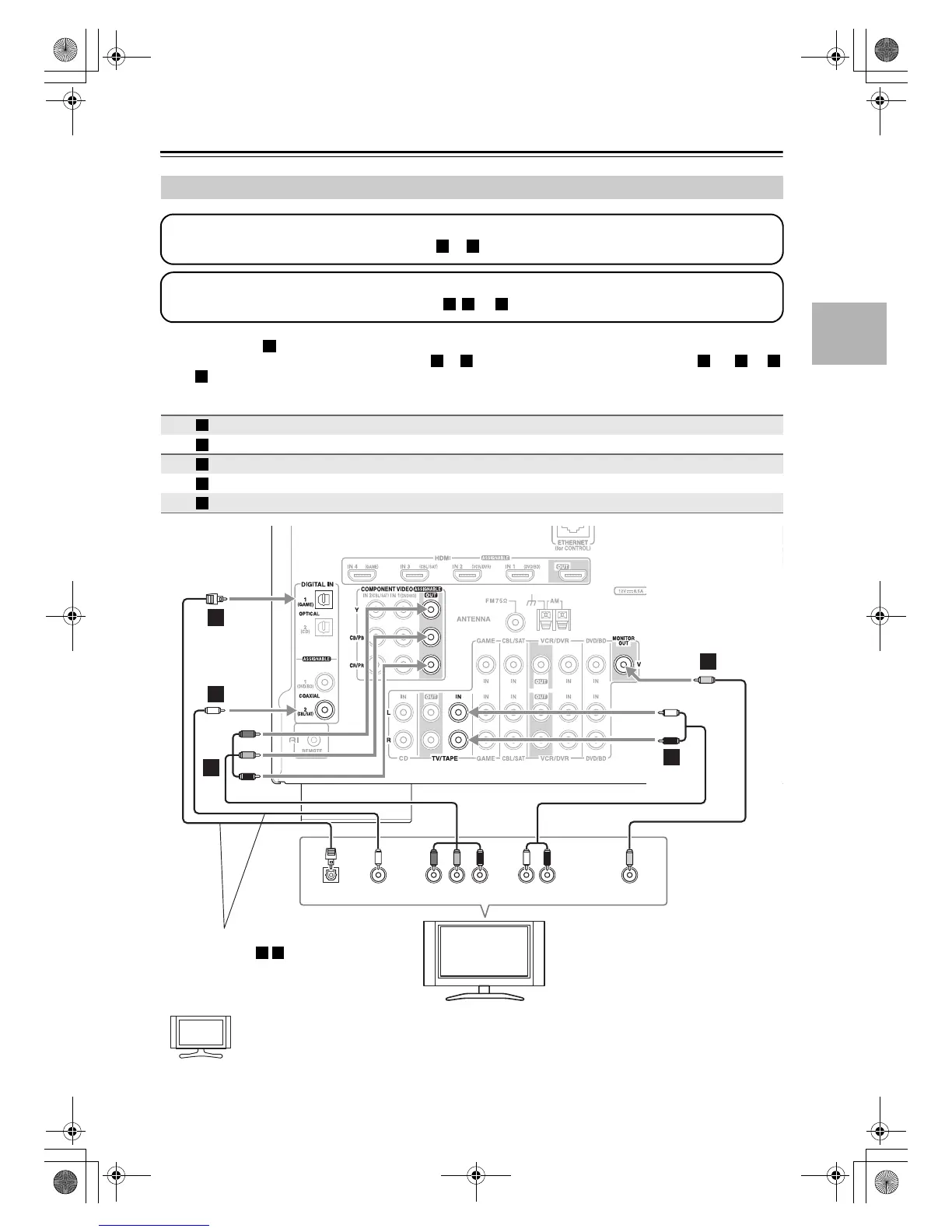

Connecting a TV or Projector
Connection AV receiver Signal flow TV
COMPONENT VIDEO OUT ⇒ Component video input
MONITOR OUT V ⇒ Composite video input
TV/TAPE IN L/R ⇐ Analog audio L/R output
DIGITAL IN COAXIAL 2 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
Step 1: Video Connection
Choose a video connection that matches your TV ( or ), and then make the connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches your TV ( , , or ), and then make the connection.
a b c
a
b c a b a
c
A
B
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO IN
P
R AUDIO
OUT
VIDEO
IN
LR
OPTICAL
OUT
b
c
A
a
B
TV, projector,
etc.
Connect one or the other
Connection must be
assigned (see page 40)
b c
Hint!
DTR-20.1_En_A.book Page 25 Wednesday, April 8, 2009 10:06 PM
To Next Page
