Front & Rear Panels—Continued
a DIGITAL IN COAXIAL 1 and 2
These coaxial digital audio inputs are for
connecting components with a coaxial digital audio
output, such as a CD player or DVD/BD player.
They’re assignable, which means you can assign
each one to an input selector to suit your setup. See
“Digital Input Setup” on page 40.
b DIGITAL IN OPTICAL 1 and 2
These optical digital audio inputs are for connecting
components with an optical digital audio output,
such as a CD player or DVD/BD player. They’re
assignable, which means you can assign each one to
an input selector to suit your setup. See “Digital
Input Setup” on page 40.
c COMPONENT VIDEO IN 1 and 2
These RCA component video inputs are for
connecting components with a component video
output, such as a DVD/BD player, DVD/BD
recorder, or DVR (digital video recorder). They’re
assignable, which means you can assign each one to
an input selector to suit your setup. See
“Component Video Input Setup” on page 39.
d COMPONENT VIDEO OUT
This RCA component video output is for
connecting a TV or projector with a component
video input.
e HDMI IN 1–4 and OUT
HDMI (High Definition Multimedia Interface)
connections carry digital audio and digital video.
The HDMI inputs are for connecting components
with an HDMI output, such as a DVD/BD player,
DVD/BD recorder, or DVR (digital video recorder).
They’re assignable, which means you can assign
each one to an input selector to suit your setup. See
“HDMI Input Setup” on page 38.
The HDMI outputs are for connecting a TV or
projector with an HDMI input.
f AM and FM ANTENNA
The AM push terminals are for connecting an AM
antenna. The FM jack is for connecting an FM
antenna.
g ETHERNET
This port is for connecting the AV receiver to home
automation equipment and external controllers.
h MONITOR OUT
The composite video jack should be connected to a
video input on your TV or projector.
i UNIVERSAL PORT
This jack is for connecting the component with the
Universal Port connector such as UP-A1 series
Dock.

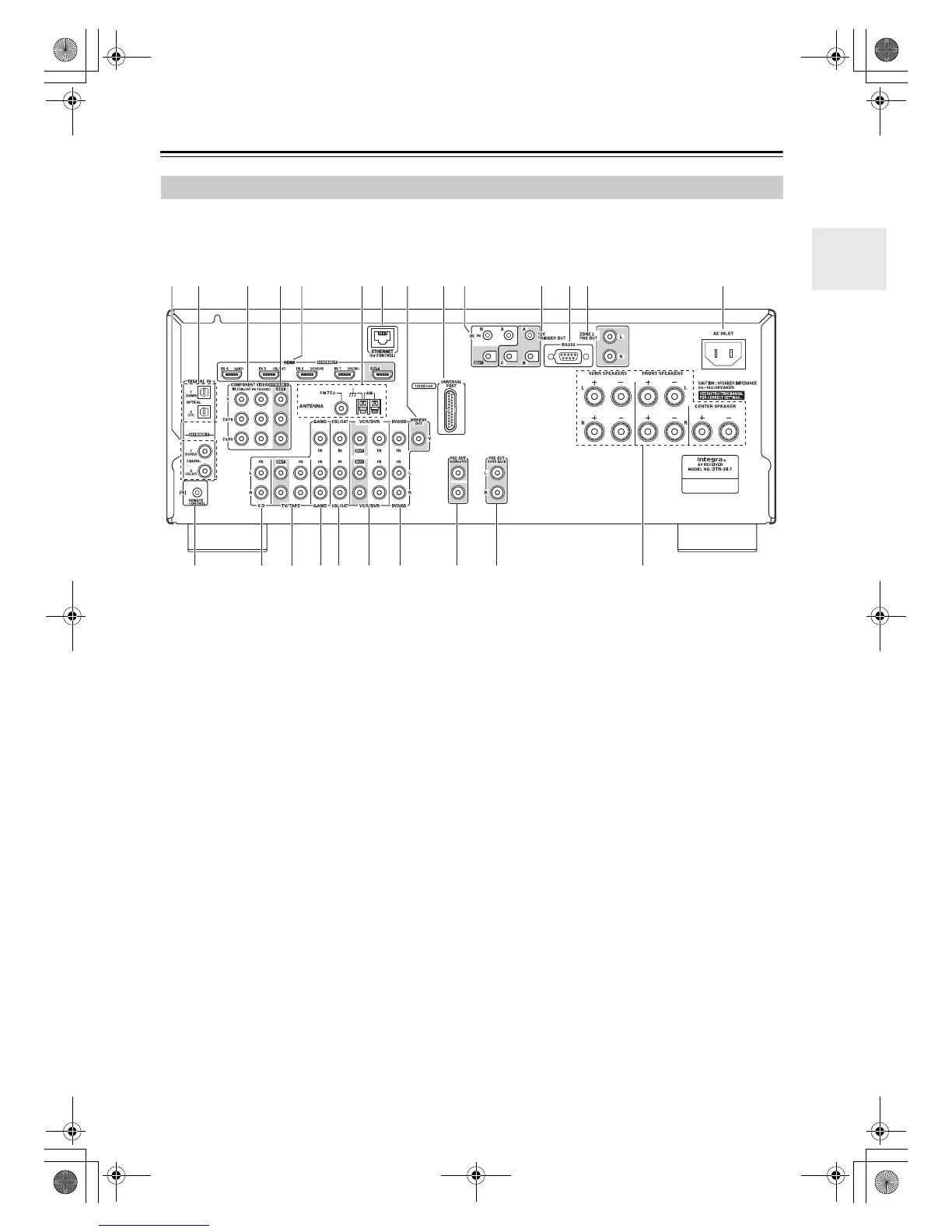

Rear Panel
b
j
k
l
m
n
o p q r tvw xus
c d ea g h if
