27
Connecting the AV receiver—Continued
With this hookup, you can use your VCR’s tuner to listen to your favorite TV programs via the AV
receiver, useful if your TV has no audio outputs.
• With connection , you can listen to the VCR or DVR even in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (To listen in Zone 2 as well, use and , or and .)

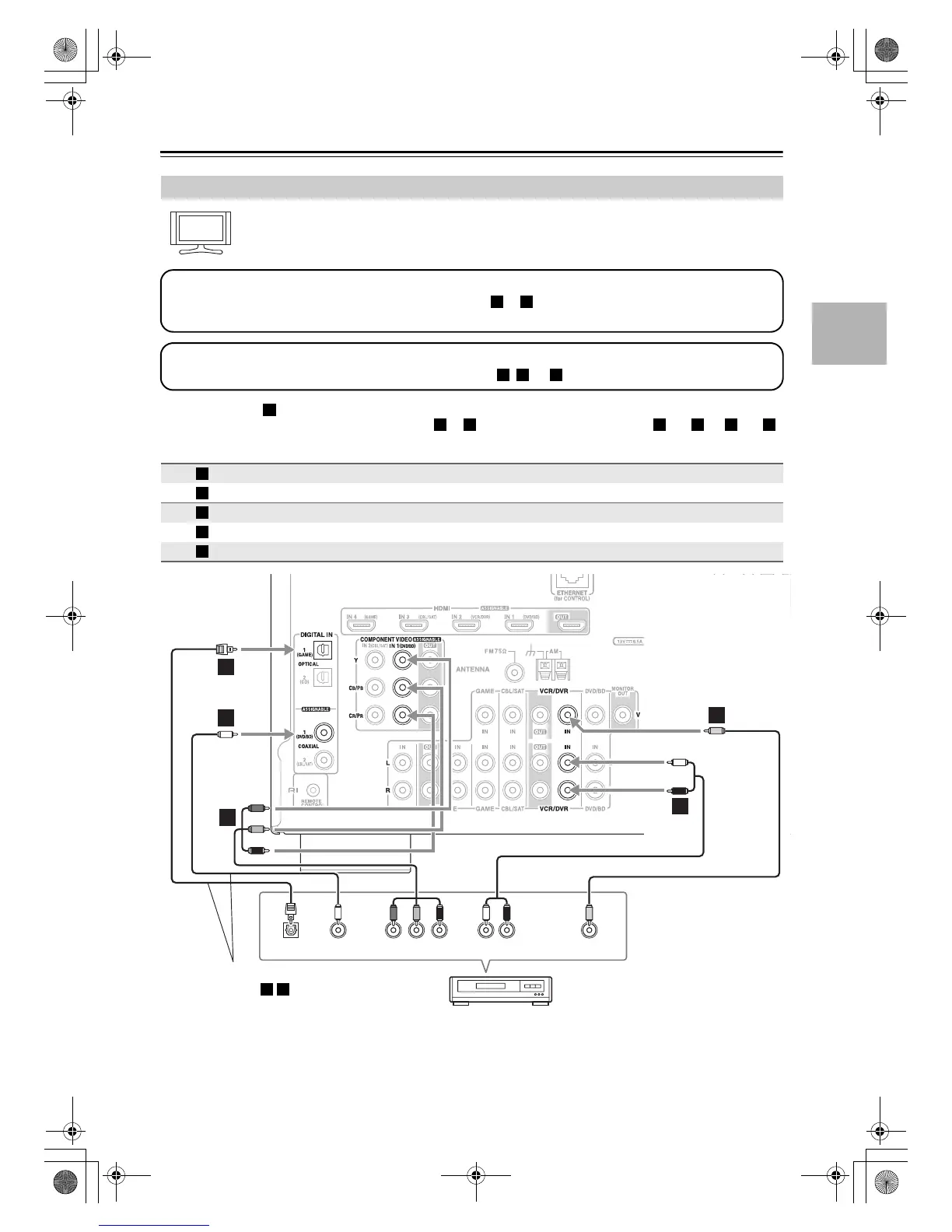

Connecting a VCR or DVR for Playback
Connection AV receiver Signal flow VCR or DVR
COMPONENT VIDEO IN 1 (DVD/BD) ⇐ Component video output
VCR/DVR IN V ⇐ Composite video output
VCR/DVR IN L/R ⇐ Analog audio L/R output
DIGITAL IN COAXIAL 1 (DVD/BD) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches your VCR or DVR ( or
), and then make the connection. You must
connect the AV receiver to your TV with the same type of connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches your VCR or DVR ( , , or ), and then make the connection.
a b c
a
b c a b a c
A
B
a
b
c
YCOAXIAL
OUT
PB
COMPONENT VIDEO OUT
P
R AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
c
A
C
a
B
VCR, DVR
Connect one or the other
Connection must be
assigned (see page 40)
b c
DTR-20.1_En_A.book Page 27 Wednesday, April 8, 2009 10:06 PM
