Zone 2

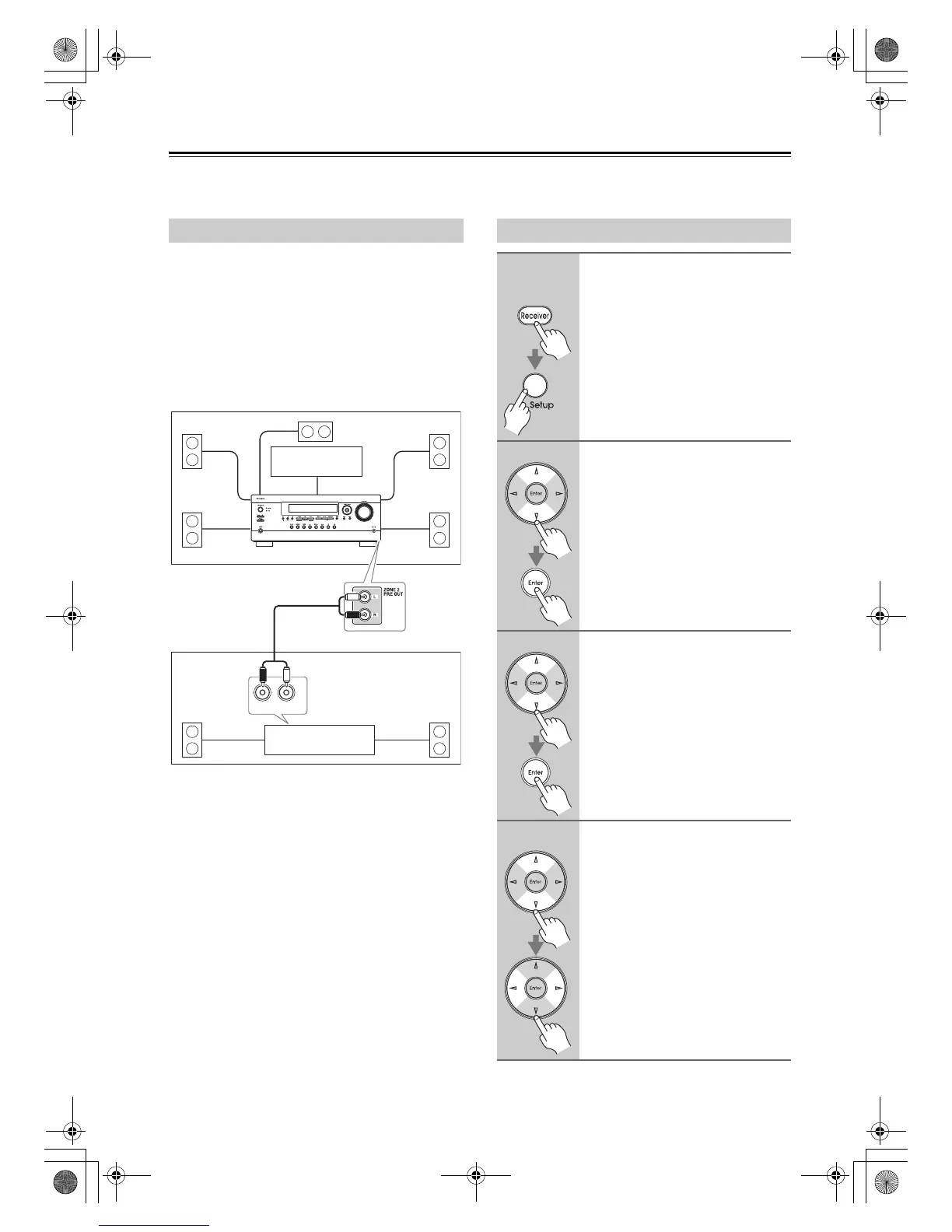

In addition to your main listening room, you can also enjoy playback in the other room, or as we call Zone 2. And, you
can select a different source for each room.
This setup allows 5.1-channel playback in your main
room and 2-channel stereo playback in Zone 2, with a
different source in each room.
Hookup
• Use an RCA audio cable to connect the AV receiver’s
ZONE 2 PRE OUT L/R jacks to an analog audio input
on your Zone 2 amp.
• Connect your Zone 2 speakers to the speaker
terminals on your Zone 2 amp.
Note:
With the default settings, the Zone 2 volume must be set
on the Zone 2 amp. If your Zone 2 amp has no volume
control, set the “Z2 Out” setting to “Variable” so that you
can set the Zone 2 volume on the AV receiver.
Connecting Zone 2
R
L
IN
Main room
Zone 2
TV
Receiver/
integrated amp
AV receiver
Setting the Zone2 Out
1
Remote
controller
Press the [Receiver] button
followed by the [Setup] button.
2
Use the Up and Down [q]/[w]
buttons to select “7. Hardware
Setup”, and then press [Enter].
3
Use the Up and Down [q]/[w]
buttons to select “Zone 2”, and
then press [Enter].
4
Use the Up and Down [q]/[w]
buttons to select an item, and
use the Left and Right [e]/[r]
buttons to change it.
The items are explained below.
