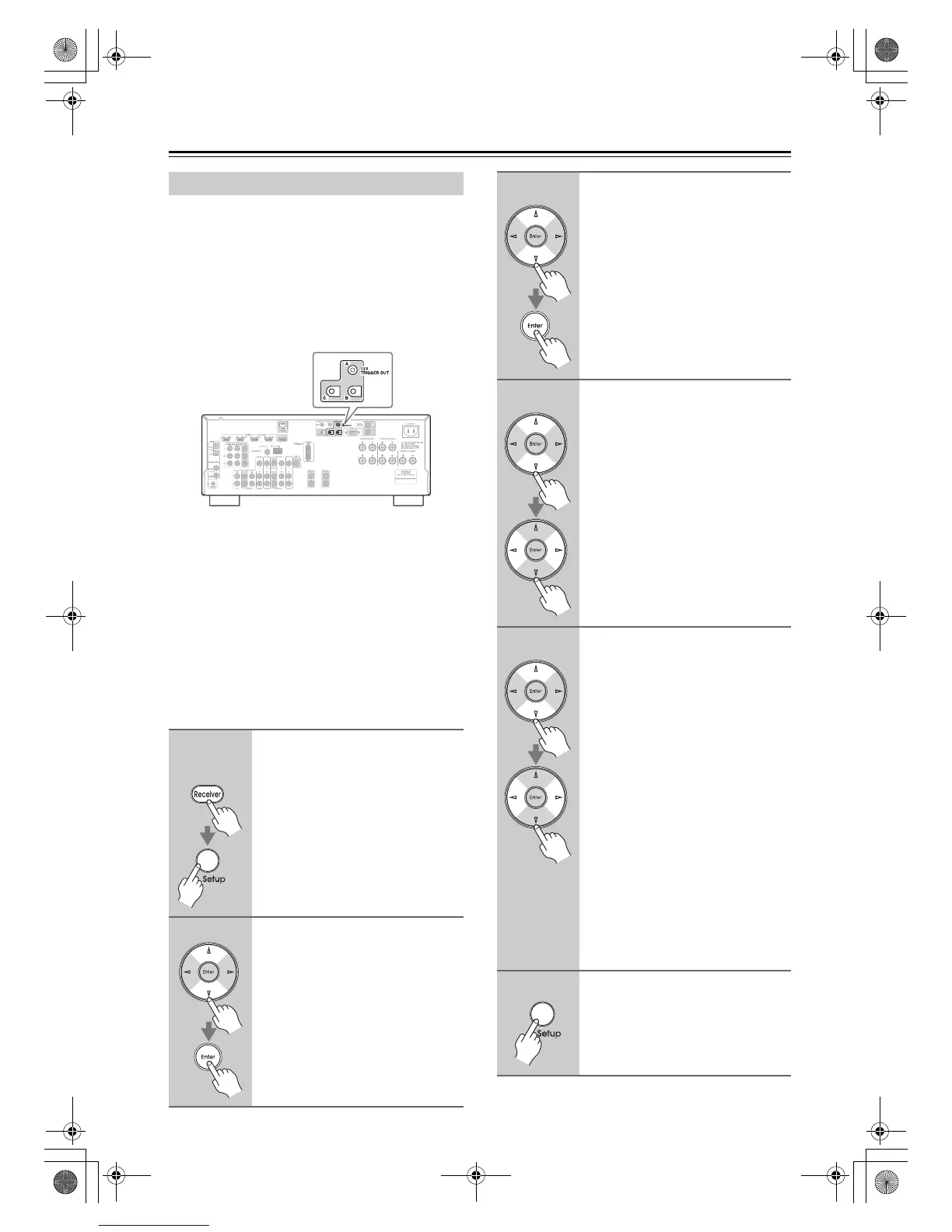

78
Zone 2—Continued
The 12V triggers A, B, and C can be used to turn on 12V
trigger-capable components automatically when they are
selected as the input source. The triggers can be set so
that they activate when a connected component is
selected as the input source for the main room, Zone 2 or
any combination of rooms.
When triggered, the output from a 12V TRIGGER OUT
goes high (+12 volts and 125 milliamperes max. at
TRIGGER OUT A; +12 volts and 25 milliamperes max.
at TRIGGER OUT B and C).
Hookup
Use a miniplug cable to connect the AV receiver’s 12V
TRIGGER OUT A, B, or C jack to the 12 V trigger
input on a connected component.
When several components are turned on simultaneously
by using triggers A, B, and C, depending on the type of
components, a large amount of current may be drawn
momentarily. To prevent this, you can delay trigger
signals A, B, and C individually. Another application for
trigger delay is eliminating the “thump” noise that’s
sometimes heard when a source component is turned on.
Delaying the trigger signal for your power amplifier so
that it’s the last component to be turned on will
accomplish this.
Using the 12V Triggers
1
Remote
controller
Press the [Receiver] button,
followed by the [Setup] button.
2
Use the Up and Down [q]/[w]
buttons to select
“6. Miscellaneous”, and then
press [Enter].
3
Use the Up and Down [q]/[w]
buttons to select “12V Trg A, B,
or C”, and then press [Enter].
4
Use the Up and Down [q]/[w]
buttons to select “Delay”, and
use the Left and Right [e]/[r]
buttons to select: 0sec, 1sec,
2sec, or 3sec.
5
Use the Up and Down [q]/[w]
buttons to select an input source,
and use the Left and Right
[e]/[r] buttons to select an
option.
Off: No trigger signal is output.
A 12-volt trigger signal is
output when the connected
component is selected as the
source for:
Main: Main room.
Zone2: Zone2.
Main/Zone2:
Main room or Zone 2.
Note:
By default, all input sources on the 12V
Trigger A Setup menu are set to Main,
those on the 12V Trigger B Setup menu
are set to Zone2, and those on the 12V
Trigger C Setup menu are set to off.
6
When you’ve finished, press the
[Setup] button.
Setup closes.
DTR-20.1_En_A.book 78 ページ 2009年4月21日 火曜日 午後5時47分
