Connecting the AV receiver—Continued
Notes:
• The AV receiver must be turned on for recording. Recording is not possible while it’s on Standby.
• If you want to record directly from your TV or another video source without going through the AV receiver, connect
the audio and video outputs from your TV or other video component directly to the recording VCR/DVR’s audio and
video inputs. See the manuals supplied with your TV or VCR/DVR for details.
• Video signals connected to composite video inputs can only be recorded via composite video outputs. If your
TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.

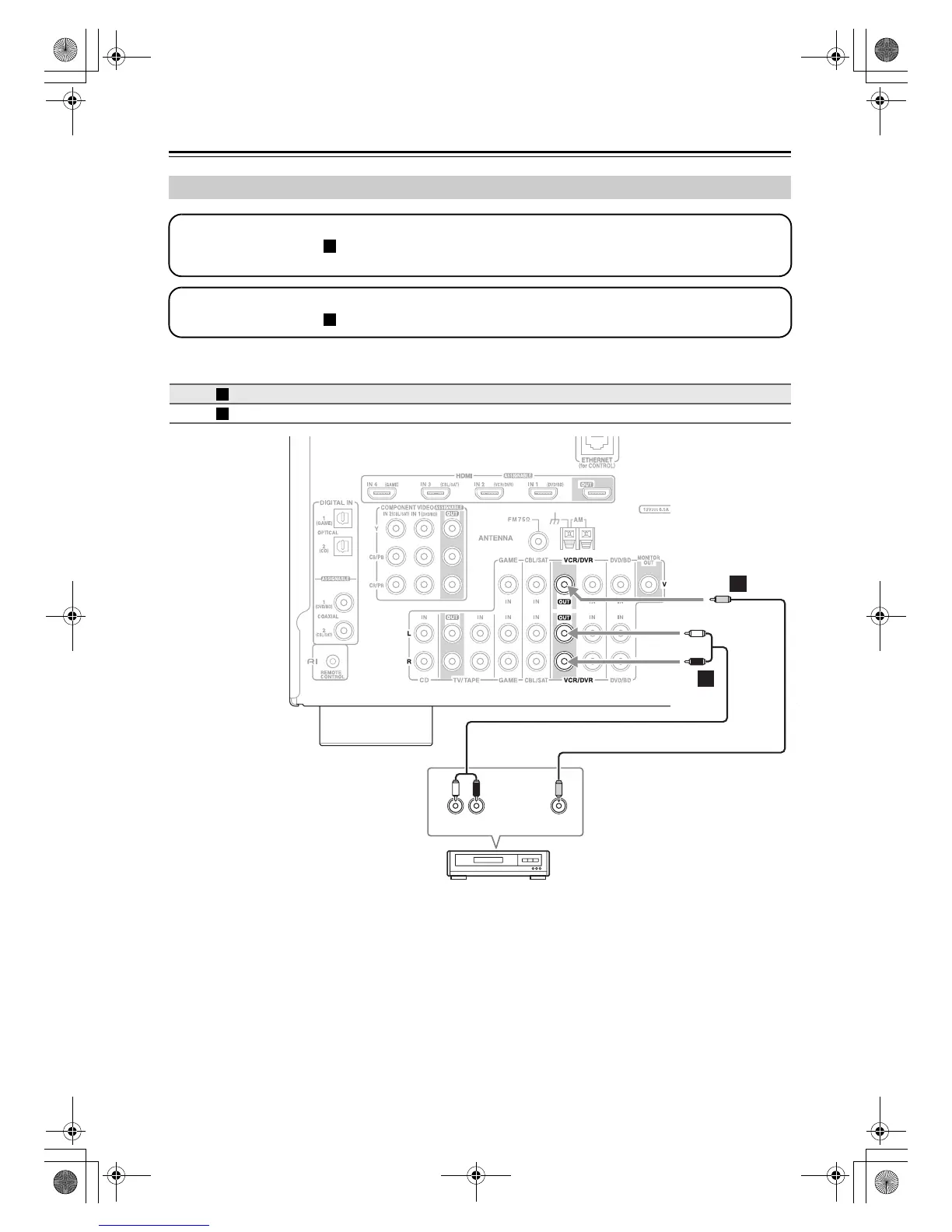

Connecting a VCR or DVR for Recording
Connection AV receiver Signal flow VCR or DVR
VCR/DVR OUT V ⇒ Composite video input
VCR/DVR OUT L/R ⇒ Audio L/R input
Step 1: Video Connection
Make the video connection . The video source to be recorded must be connected to the AV receiver via the same
type of connection.
A
Step 2: Audio Connection
Make the audio connection .
a
A
a
AUDIO
IN
VIDEO
IN
L R
a
A
VCR, DVR
