29
Connecting the AV receiver—Continued
With this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs
via the AV receiver, which is useful if your TV has no audio outputs.
• With connection , you can listen to and record audio from the video source or listen in Zone 2.
• To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 as well, use and , or
and .)

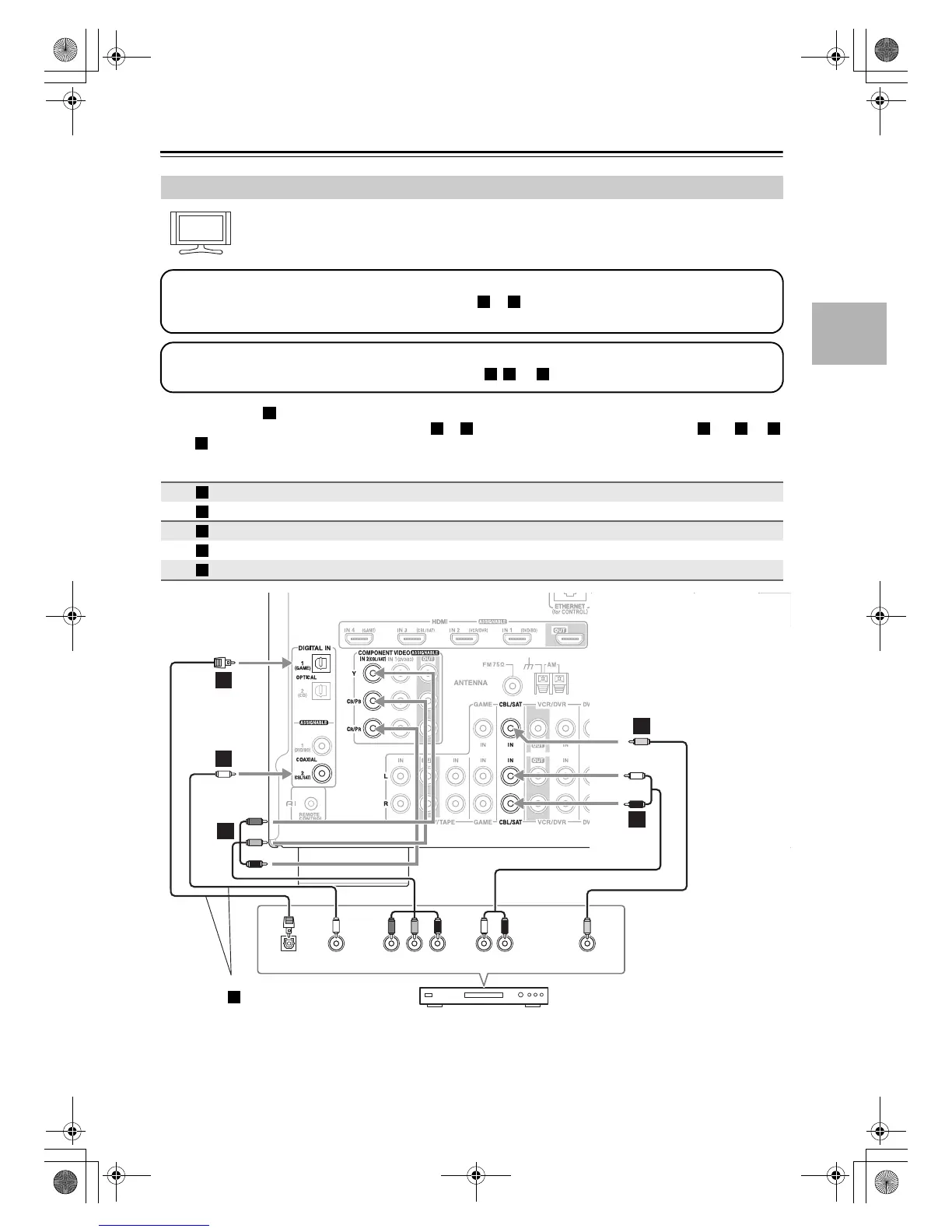

Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video Source
Connection AV receiver Signal flow Video source
COMPONENT VIDEO IN 2 (CBL/SAT) ⇐ Component video output
CBL/SAT IN V ⇐ Composite video output
CBL/SAT IN L/R ⇐ Analog audio L/R output
DIGITAL IN COAXIAL 2 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches the video source ( or
), and then make the connection.
You must connect the AV receiver to your TV with the same type of connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches the video source ( , , or ), and then make the connection.
a b c
a
b c a b a
c
A
B
a
b
c
YCOAXIAL
OUT
P
B
COMPONENT VIDEO OUT
P
R
AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
b
c
A
C
a
B
Satellite, cable, set-top box, etc.
Connect one or the other
Connection must be
assigned (see page 40)
c
DTR-20.1_En_A.book Page 29 Wednesday, April 8, 2009 10:06 PM
To Next Page
