31
Connecting the AV receiver—Continued
• With connection , you can play and record or listen in Zone 2.
• To connect the recorder digitally for playback, use connections and , or and .

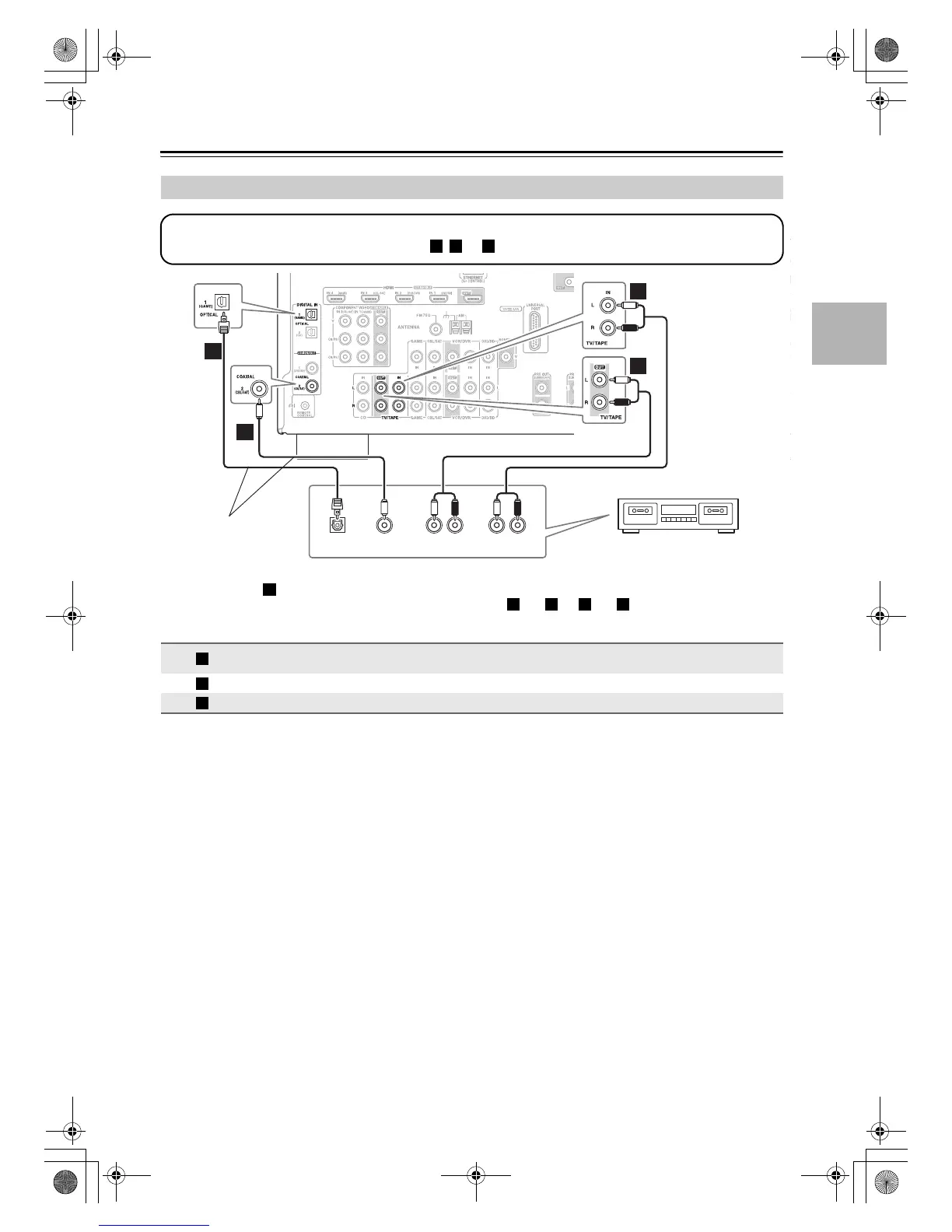

Connecting a Cassette, CDR, MiniDisc, or DAT Recorder
Connection AV receiver Signal flow Cassette, CDR, MD, or DAT recorder
TV/TAPE IN L/R
TV/TAPE OUT L/R
⇐
⇒
Analog audio L/R output
Analog audio L/R input
DIGITAL IN COAXIAL 2 (CBL/SAT) ⇐ Digital coaxial output
DIGITAL IN OPTICAL 1 (GAME) ⇐ Digital optical output
COAXIAL
OUT
AUDIO
IN
L R
OPTICAL
OUT
AUDIO
OUT
L R
b
c
a
a
Step 1:
Choose a connection that matches your recorder ( , , or ), and then make the connection.
a b c
Cassette, CDR, MD, etc.
Connect one or the other
These connections must be
assigned (see page 40)
a
a b a c
a
b
c
DTR-20.1_En_A.book Page 31 Wednesday, April 8, 2009 10:06 PM
