Add-In Card and Peripheral Interface Connectors

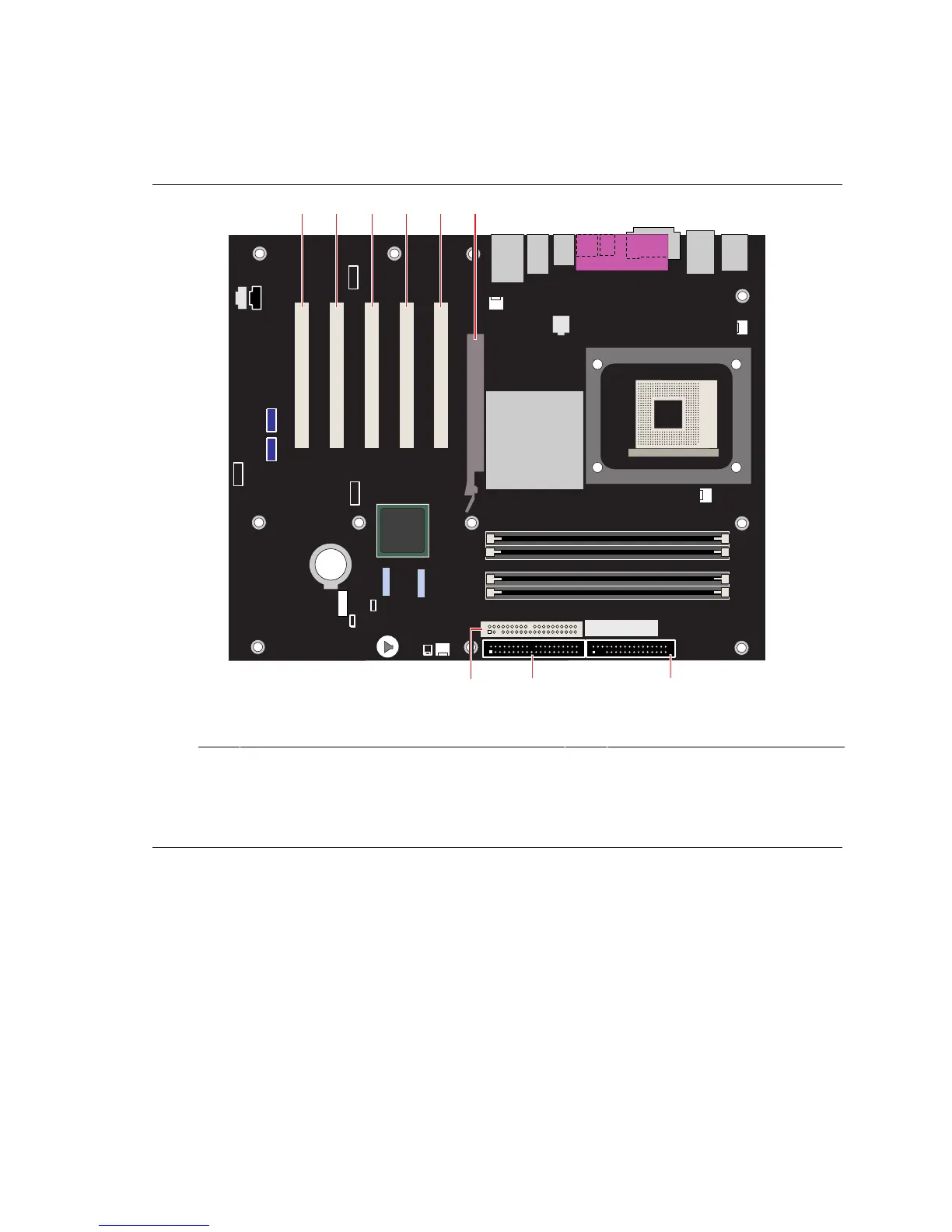

Figure 22 shows the PCI bus add-in card and peripheral interface connectors for the desktop board.
OM15488
G
I
H
A
B C D
E F
Item Description Item Description
A PCI bus add-in card connector 5 F AGP
B PCI bus add-in card connector 4 G Floppy drive
C PCI bus add-in card connector 3 H Primary IDE
D PCI bus add-in card connector 2 (SMBus routed) I Secondary IDE
E PCI bus add-in card connector 1
Figure 22. PCI Bus Add-in Card and Peripheral Interface Connectors

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
