Intel Desktop Board D865PERL Product Guide
52
Installing a Rear Panel USB 2.0 Adapter (Optional)
Follow these instructions to install a rear panel USB 2.0 adapter:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach the cable end with the connector to the front panel USB 2.0 header on the desktop
board.
3. Secure the cable’s metal bracket to the chassis back panel with a screw.
OM15480

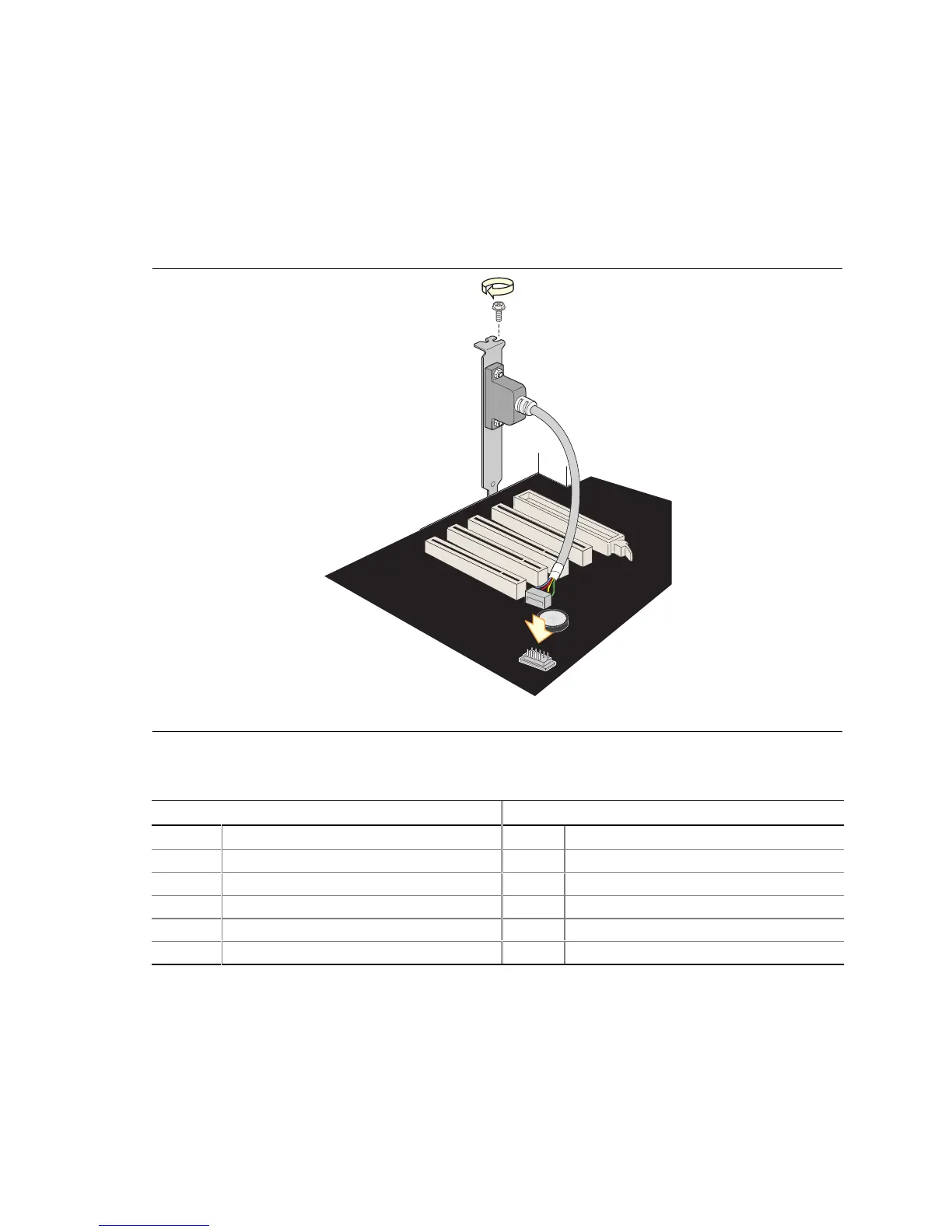

Figure 14. Connecting a Rear Panel USB 2.0 Adapter
Table 11. USB 2.0 Header Signal Names (J9F1 and J9H1)
USB Port A USB Port B
Pin Signal name Pin Signal name
1 Power 2 Power
3 D- 4 D-
5 D+ 6 D+
7 Ground 8 Ground
9 Key 10 No connect
Note: USB ports may be assigned as needed.

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
