Intel Desktop Board D865PERL Product Guide
14
Desktop Board Components

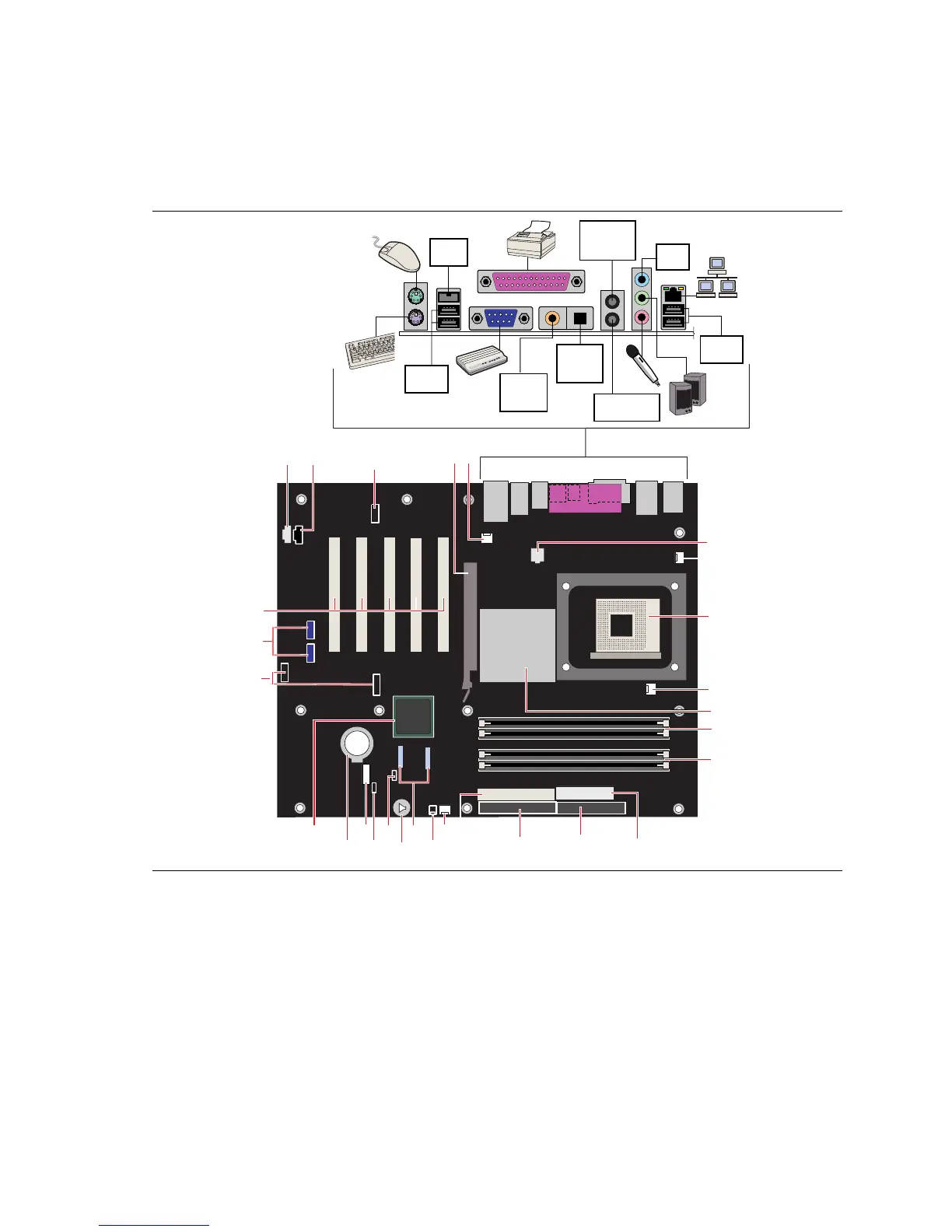

Figure 1 shows the approximate location of the major components on Desktop Board D865PERL.
OM15472
USB 2.0
Devices
AB
F
H
J
I
K
M
N
O
P
E
L
D
Line
In
Audio Rear
Left/Right
Out
Audio Center
LFE
RJ45
1394a
USB 2.0
Devices
G
SU
T
V
Z
AA
Q
Y
R
C
W
X
BB
IEEE
Coaxial
S/PDIF
Line Out
Optical
S/PDIF
Line Out
Figure 1. Desktop Board D865PERL Components
The following back panel connectors are optional:
• IEEE 1394a
• Coaxial S/PDIF (RCA) Line Out
• Audio Center LFE
• Optical S/PDIF (Toslink) Line Out
• Audio Rear Left/Right Out
• RJ45

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
