Intel D865PERL User Manual

Technical Reference
99
Audio Connectors

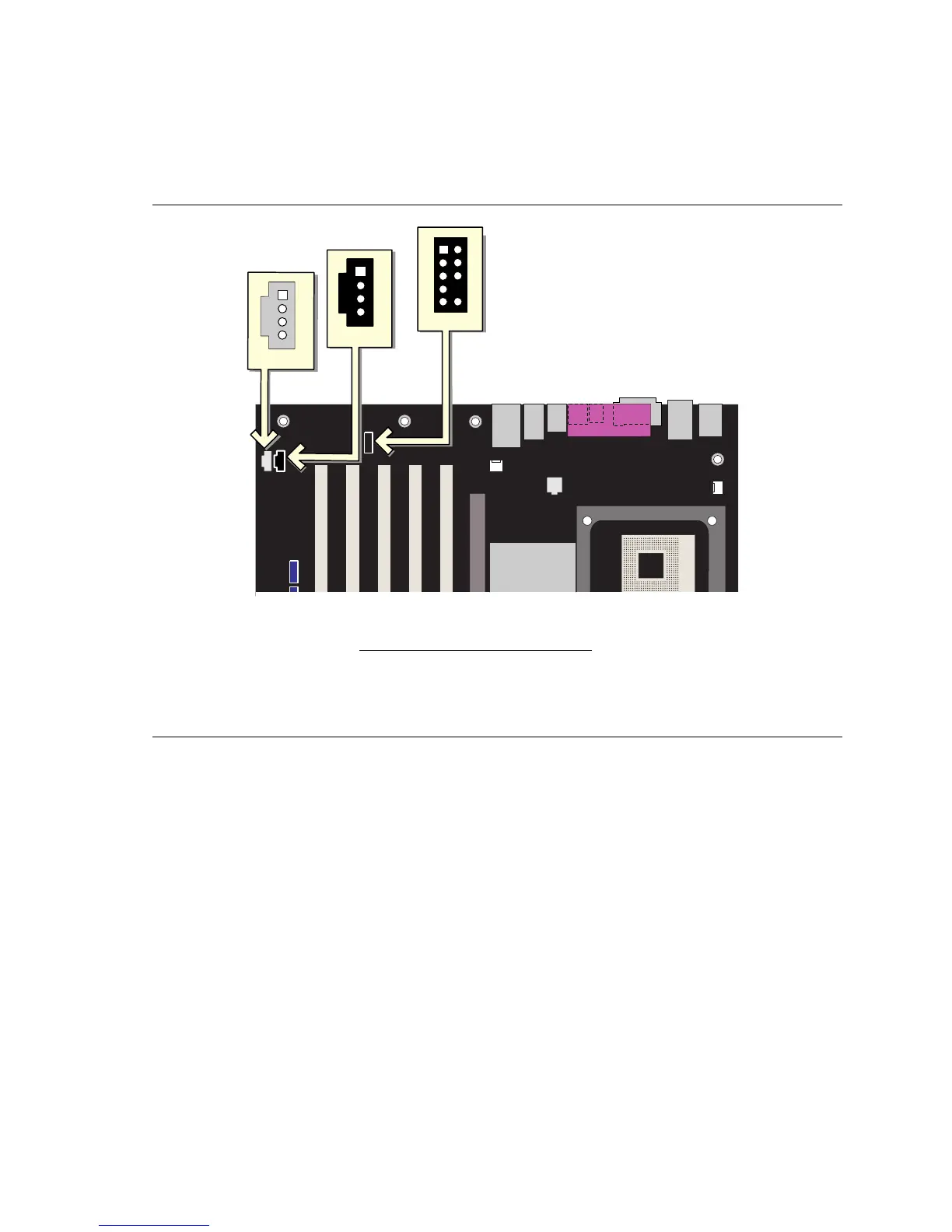

Figure 21 shows the approximate location of the audio connectors. For instruction on how to install
the front panel audio solution, go to page 51 in Chapter 2.
B
C
OM15486
1
2
3
4
1
2
3
4
2
1
3
4
5
6
7
9
10
A
J9B1
J9B2
J7A1
Item Description
A Auxiliary line in (ATAPI-
style)
B CD-ROM (ATAPI-style)
C Front panel audio
Figure 21. Audio Connectors

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
