Back Panel Connectors
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.

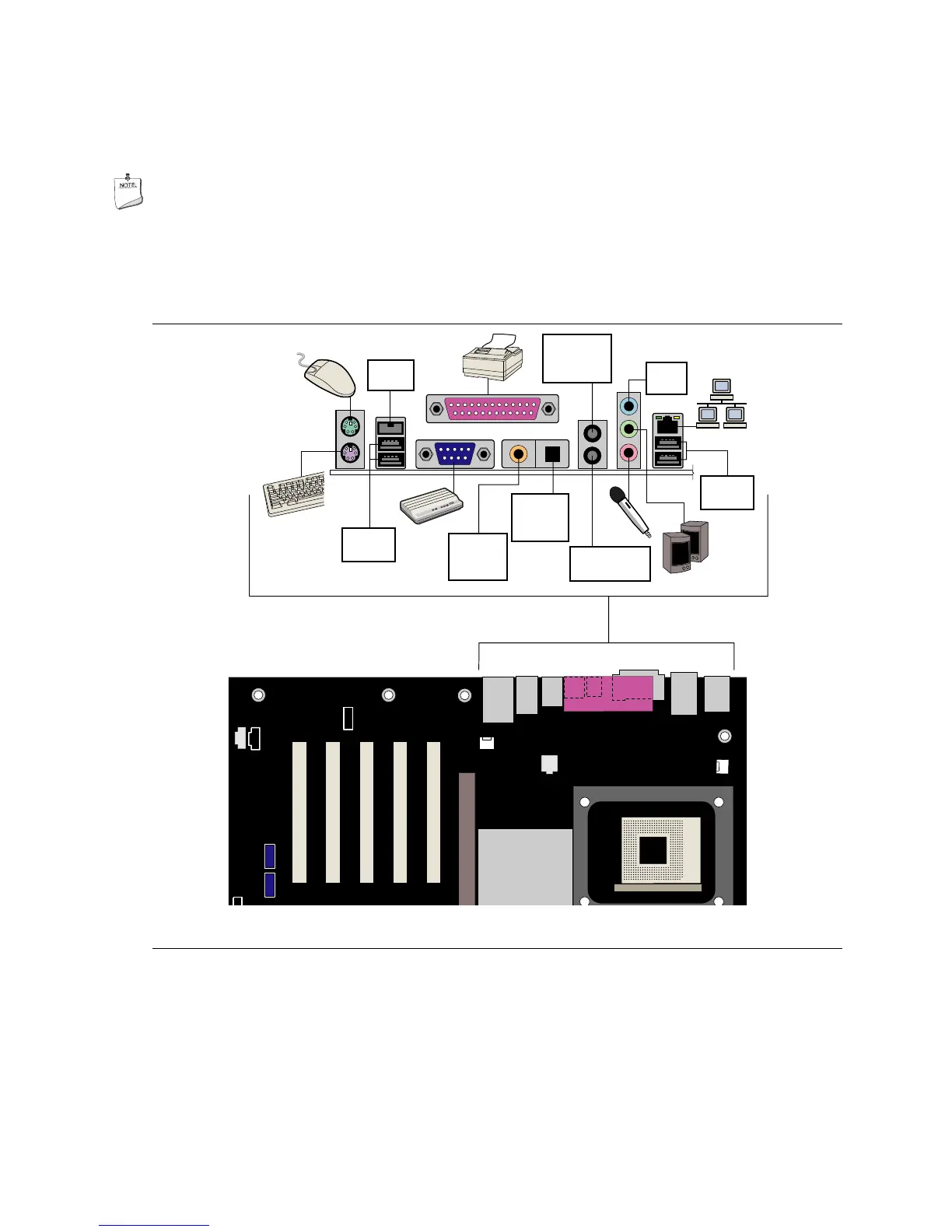

Figure 20 shows the back panel connectors.
OM15485
USB 2.0
Devices
Line
In
Audio Rear
Left/Right
Out
Audio Center
LFE
RJ45
1394a
USB 2.0
Devices
IEEE
Coaxial
S/PDIF
Line Out
Optical
S/PDIF
Line Out
Figure 20. Back Panel Connectors

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
