Removing the AGP Card
Follow these instructions to remove the AGP card from the RM:
1. Observe the precautions in "Before You Begin" on page 27.
2. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.
3. Push back on the RM lever, as shown in Figure 10, until the retention pin completely clears the
notch in the card.
4. Pull the card straight up (C).
OM15479
A
B
C
C

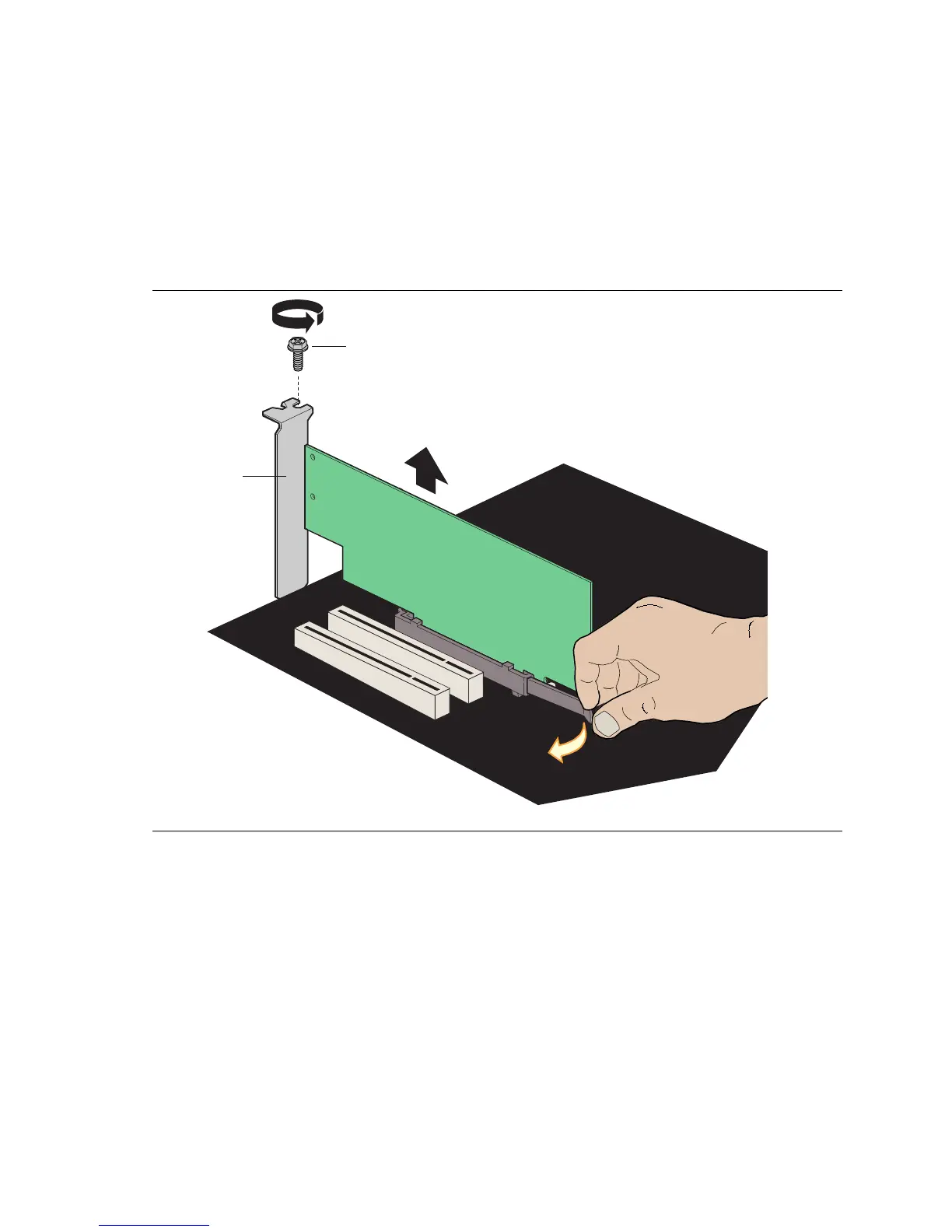

Figure 10. Removing the AGP Card
