Connecting Internal Headers
Before connecting cables to the internal headers, observe the precautions in “Before You Begin” on
page 27.
OM15489
D
9
8
7
6
5
2
1
3
4
5
6
7
B
8
A
E
C
1
2
2
1
3
4
5
6
7
10
8
9
2
1
3
4
5
6
7
10
9
2
1
3
4
5
6
7
10
8
Item Description
A Front panel audio
B IEEE 1394a (optional)
C USB 2.0
D Front panel
E Power LED

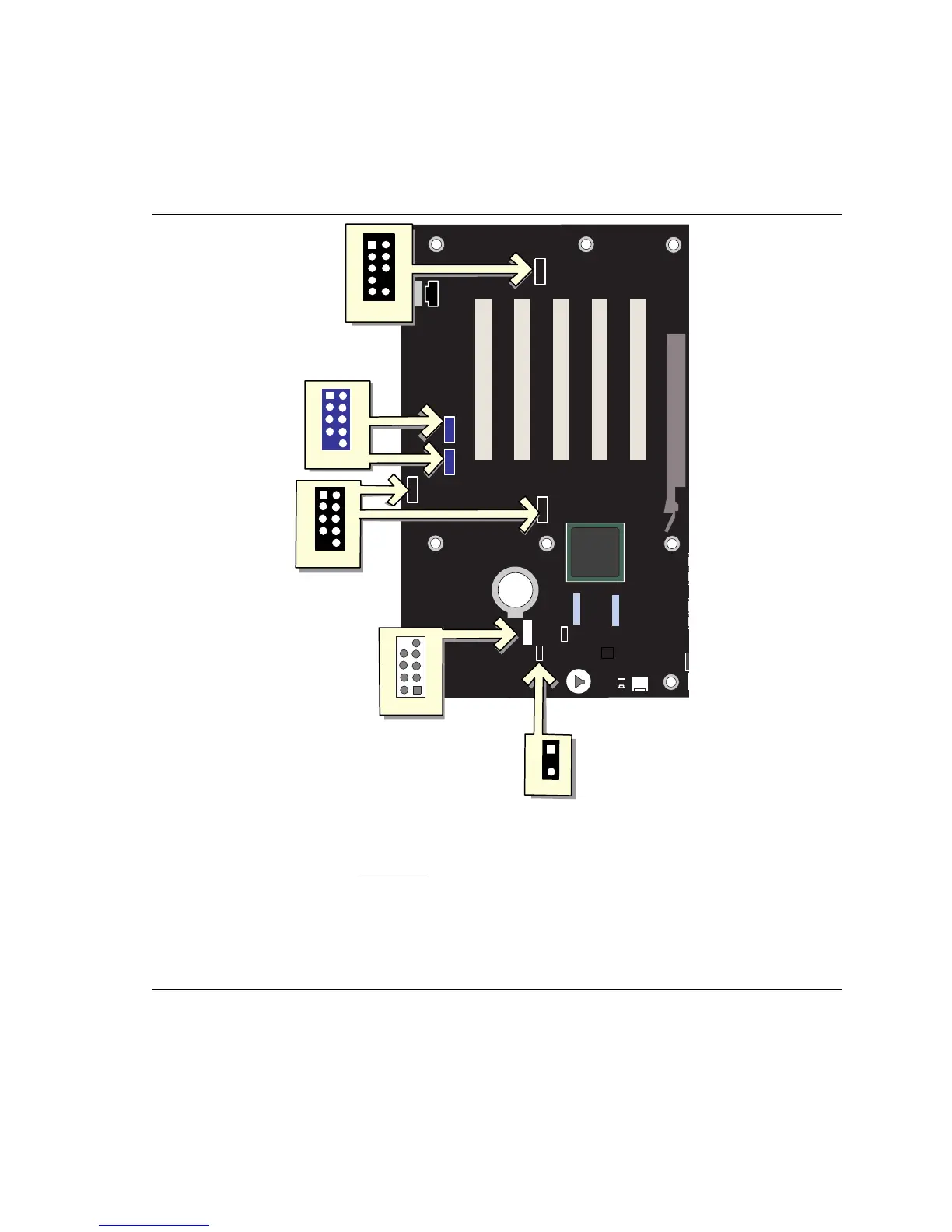

Figure 13. Internal Headers

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
