Intel D865PERL User Manual

Installing and Replacing Desktop Board Components
33
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the processor fan connector (see Figure 6).
OM15475

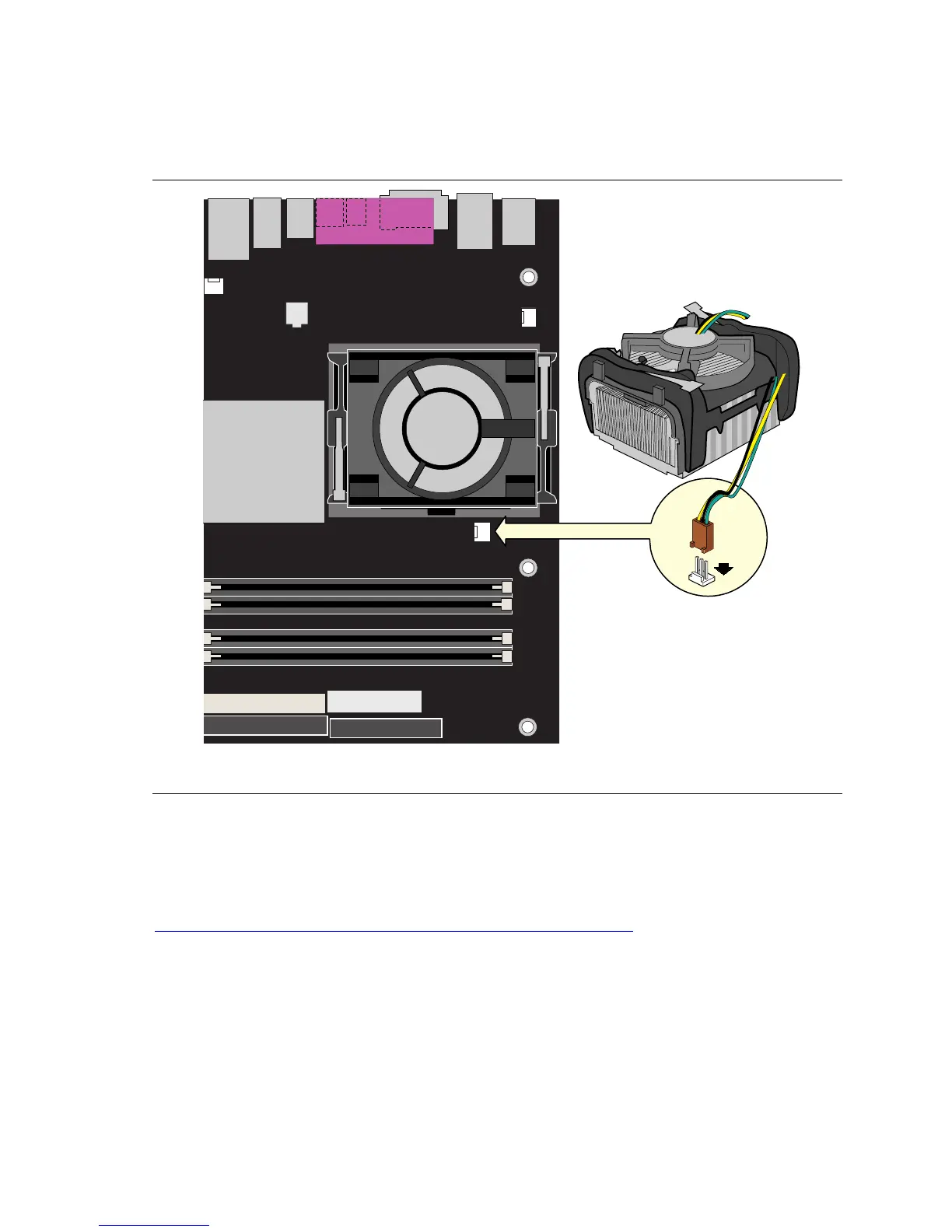

Figure 6. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector
Removing the Processor
For instruction on how to remove the processor fan heat sink and processor, refer to the processor
installation manual or the Intel World Wide Web site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97

Summary

Desktop Board Features

Desktop Board Components

Identifies and locates major hardware components on the desktop board.

Processor and Memory Support

Details processor support and main memory configurations.

Chipset and Integrated Peripherals

System Management Features

Explains BIOS, security, power management, and hardware monitoring.

Installing and Replacing Desktop Board Components

Installation Safety and Precautions

Provides essential safety guidelines and precautions before installing hardware.

Hardware Installation Procedures

Covers I/O shield, board, processor, memory, and AGP card installation.

Cable Connections

Provides instructions for connecting IDE, SATA, and configuring RAID.

Power, Fan, and BIOS Configuration

Details power/fan connections, BIOS jumper settings, and password management.

Updating and Recovering the BIOS

Intel Express BIOS Update Utility

Guide to updating the BIOS using the Windows-based Intel Express utility.

Iflash Memory Update Utility

BIOS Recovery Procedures

Steps to recover the BIOS if an update process fails or is interrupted.

Using the BIOS Setup Program

Advanced Menu

Security Menu

Power Menu

Boot Menu

Error Messages and Indicators

BIOS Beep Codes

BIOS Error Messages
