Intel Desktop Board D865PERL Product Guide
42
Upgrading to Serial ATA RAID 0 Configuration from a Single Drive Configuration
1. Install the second Serial ATA drive in the system. Refer to section “Connecting the Serial
ATA (SATA) Cable” on page 39.
2. Start the system and boot into Windows XP.
3. Launch the Intel Application Accelerator from the Start Menu
(Start ´ All Programs ´ Intel Application Accelerator ´ Intel Application Accelerator).

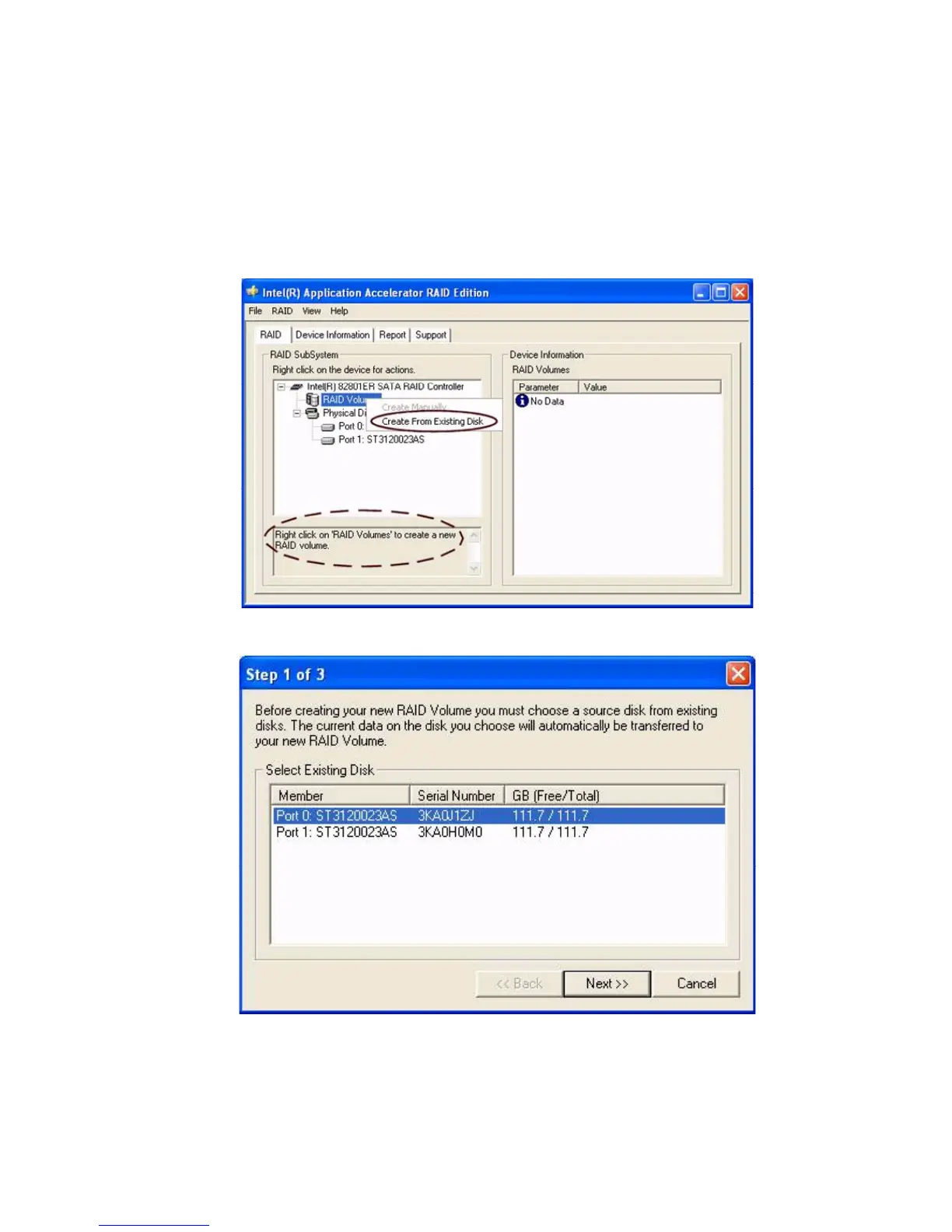

4. From the RAID tab, right-click on “RAID Volume” and select “Create from Existing Disk.”
5. Select the source disk to create the RAID Volume and then press the “Next” button.

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
