Intel Desktop Board D865PERL Product Guide
30
Use Only for Intended Applications
All Intel desktop boards are evaluated as Information Technology Equipment (I.T.E.) for use in
personal computers for installation in homes, offices, schools, computer rooms, and similar
locations. The suitability of this product for other applications or environments, such as medical,
industrial, alarm systems, test equipment, etc. may require further evaluation.
Related Links:
For information about regulatory compliance, go to Appendix B on page 107.
Installing the I/O Shield
The desktop board comes with an I/O shield. When installed in the chassis, the shield blocks radio
frequency transmissions, protects internal components from dust and foreign objects, and promotes
correct airflow within the chassis.
Install the I/O shield before installing the desktop board in the chassis. Place the shield inside the
chassis as shown in Figure 3. Press the shield into place so that it fits tightly and securely. If the
shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.
OM15693

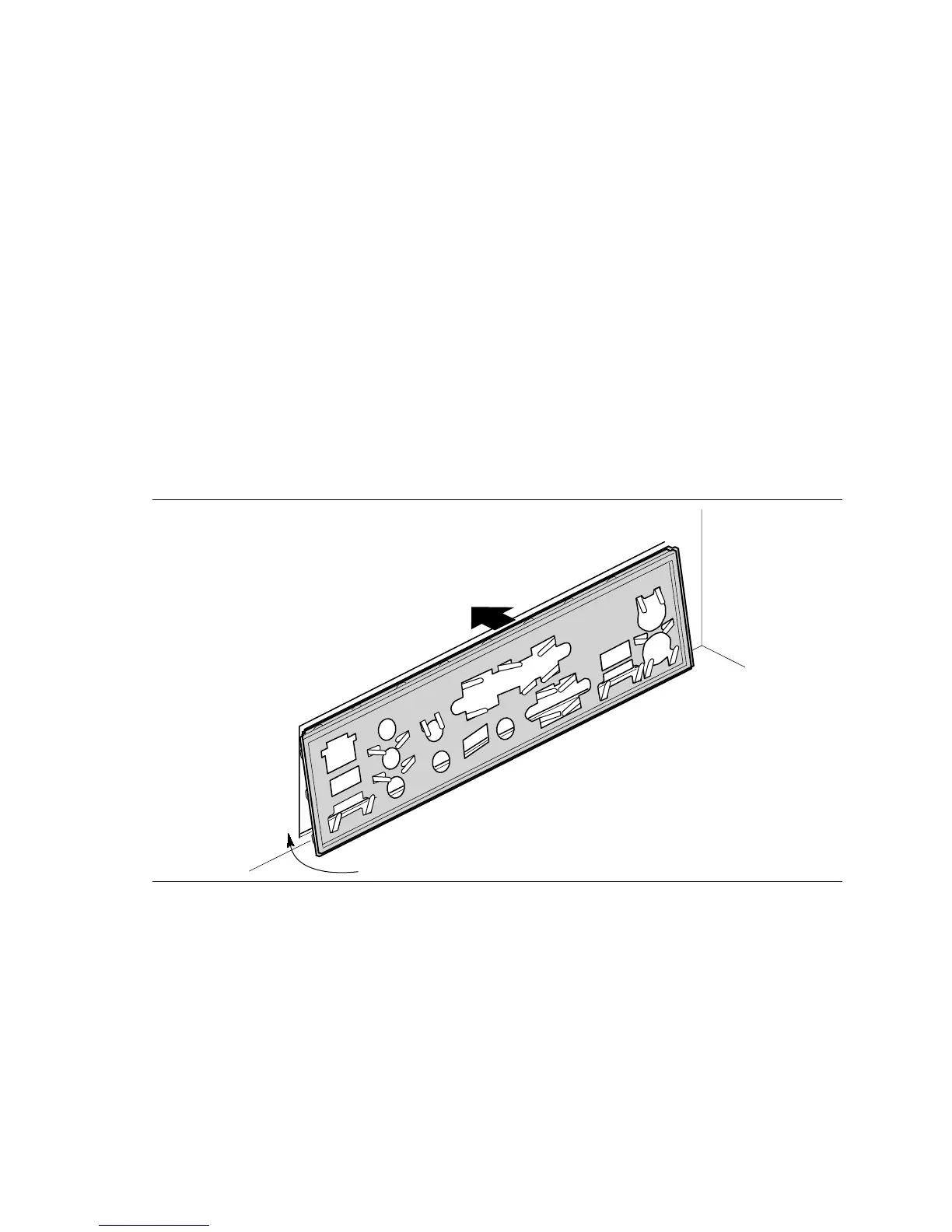

Figure 3. Installing the I/O Shield

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
