Intel D865PERL User Manual

Installing and Replacing Desktop Board Components
45

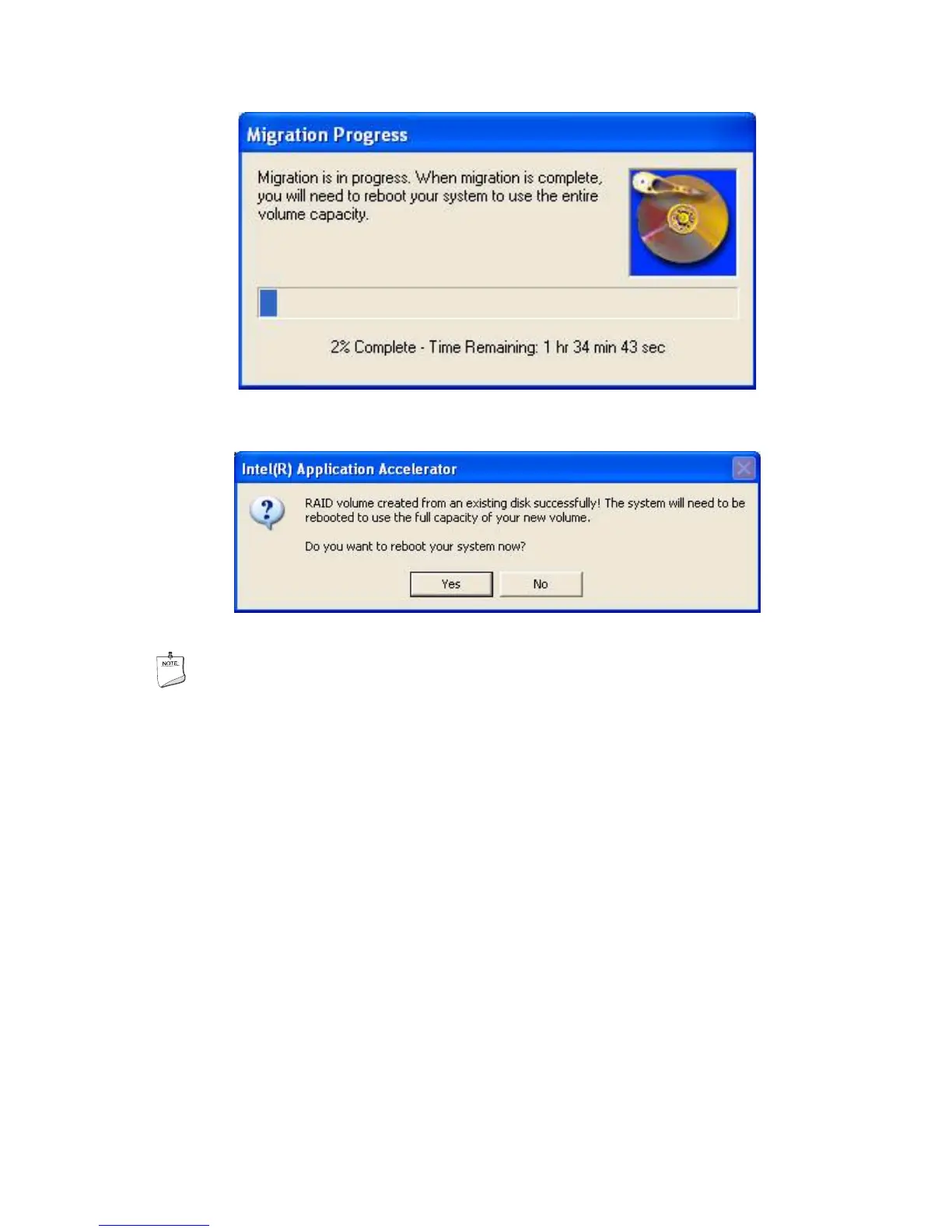

11. If the migration process completes successfully, the following dialogue box will appear:
NOTE
If an IDE hard drive is also attached to the system, the RAID volume will need to be moved
up in priority in order to boot from it. After the system reboots, press the <F2> key to enter
BIOS Setup. Then, navigate to the BOOT menu and select the Hard Disk Drives option.
Move the RAID volume to the 1st Drive position. Press <F10> to save the BIOS settings and
exit the BIOS Setup program.

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
