Intel D865PERL User Manual

Intel Desktop Board D865PERL Product Guide
48
CAUTION

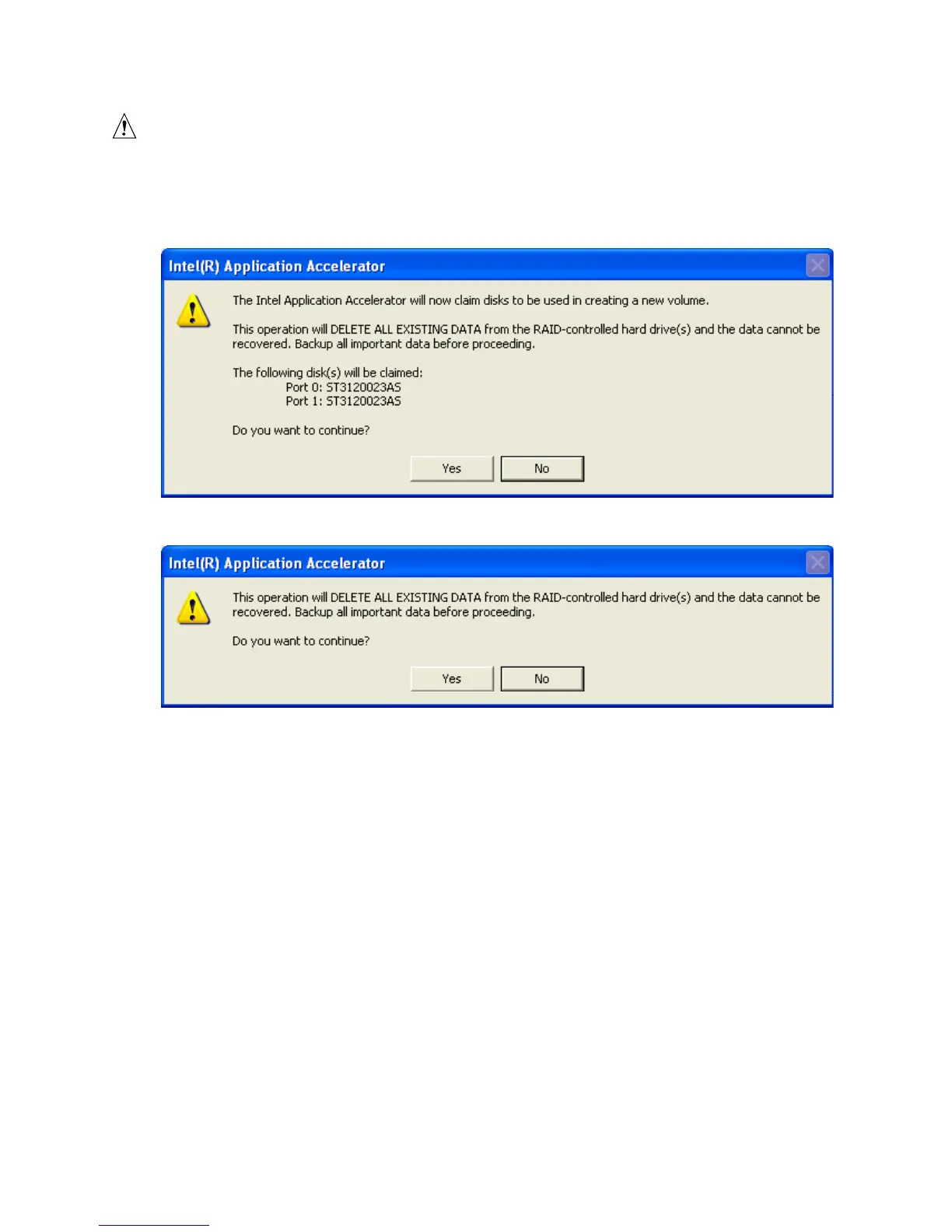

Carefully read the next two dialog boxes that appear and decide if you wish to continue. Note that
once you select “Yes” on the following two dialog boxes, the Intel Application Accelerator RAID
Edition will claim the disks to be used in creating a new volume and this operation cannot be
undone. It is critical that you backup important data before selecting “Yes” to these dialog boxes.

Intel D865PERL Specifications

General

Chipset	Intel 865PE
Socket	Socket 478
Form Factor	ATX
Memory Type	DDR SDRAM
Memory Slots	4
Maximum RAM	4 GB
Expansion Slots	1 x AGP 8x, 5 x PCI
LAN	10/100 Mbps Ethernet
Supported CPU	Intel Pentium 4, Intel Celeron
Storage Interfaces	2 x ATA-100, 2 x SATA
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Audio	6-channel AC'97
