Intel
®
Modular Server System Service Guide 111
To access the Chassis Back view, click the Chassis Back tab in the top menu. By default,
no components are selected on the chassis in this view.

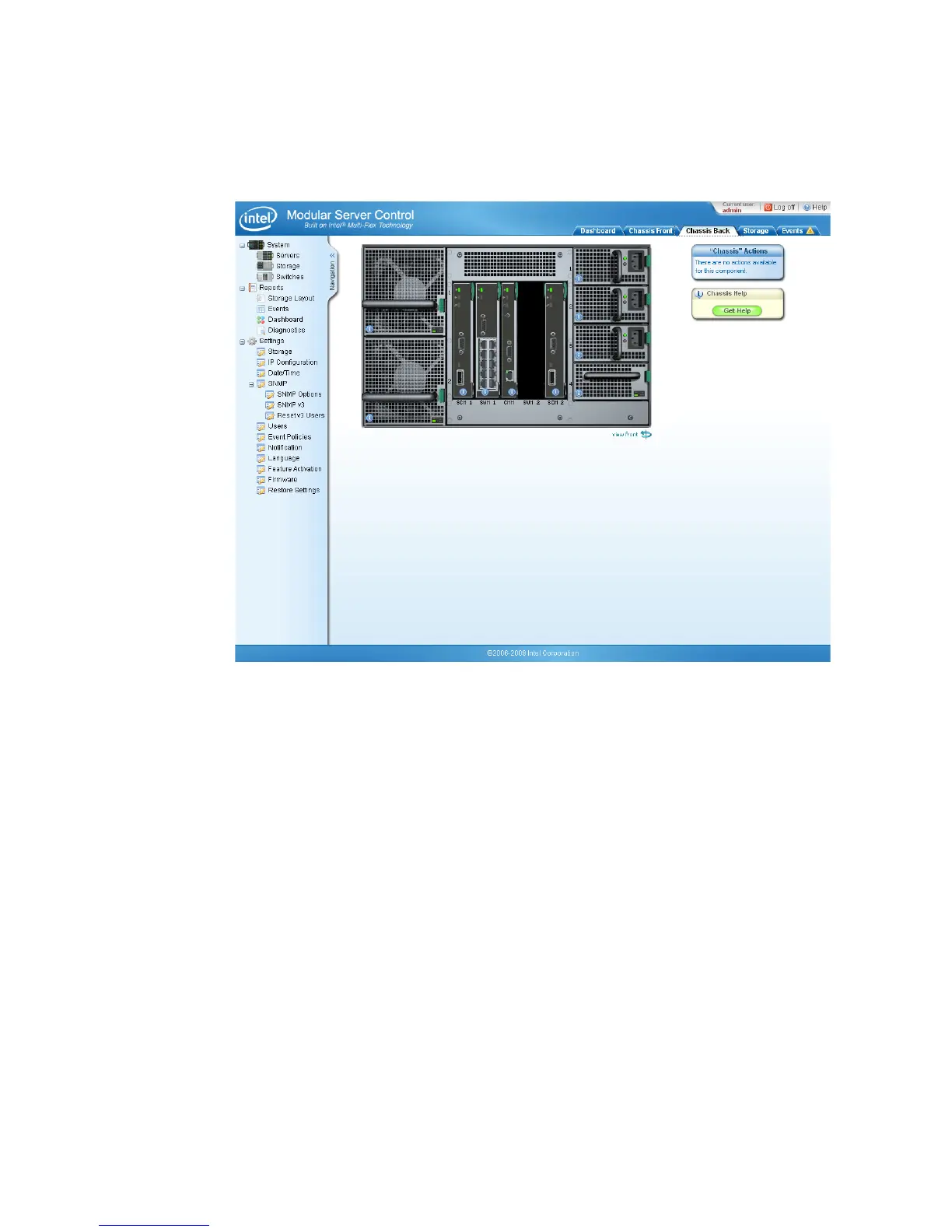

Figure 68. Chassis Back View
Intel
®
Storage Control Module 1 and 2
The Intel
®
Modular Server System MFSYS25/MFSYS35 contains at least one storage
module in slot SCM1. A second storage module may be added to improve performance
and provide redundancy in the event one SCM fails. If there are two SCMs installed in the
system, the SCMs are redundant and in the event of an SCM failure, the remaining SCM
will become the primary control module for all virtual drives.
The Intel
®
Modular Server Control UI enables an IT administrator to grant compute
modules with access to external storage via the expansion port, view health information,
and view product details. To view the current status, available actions, and product details
for an installed Intel
®
Storage Control Module, click the Chassis Back tab in the top menu
to display the back of the system and select the specific storage control module from the
system graphic. The content displayed on the informational tabs, action box, and help box
will be updated with product-specific information and available actions for the selected
