40 Intel
®
Modular Server System Service Guide
Caution: Only hard drives validated for use in the Intel
®
Modular Server System MFSYS25/
MFSYS35 should be installed. You may damage the Intel
®
Modular Server System
MFSYS25/MFSYS35 if you install a hard drive that is not listed in the Intel
®
Modular
Server System MFSYS25/MFSYS35 Tested Hardware and Operating System List.
Installing a 2.5-inch Hard Drive into the Storage Bay
To install a 2.5-inch hard drive into the storage bay, follow these steps:
1. Review the safety and ESD information at the beginning of this manual and in the
appendices.
2. Press the retaining lever on an available drive carrier to release the drive carrier from
the drive bay module (see letter “A” in Figure 27). Remove the drive carrier from the
drive bay module (see letter “B” in Figure 27).

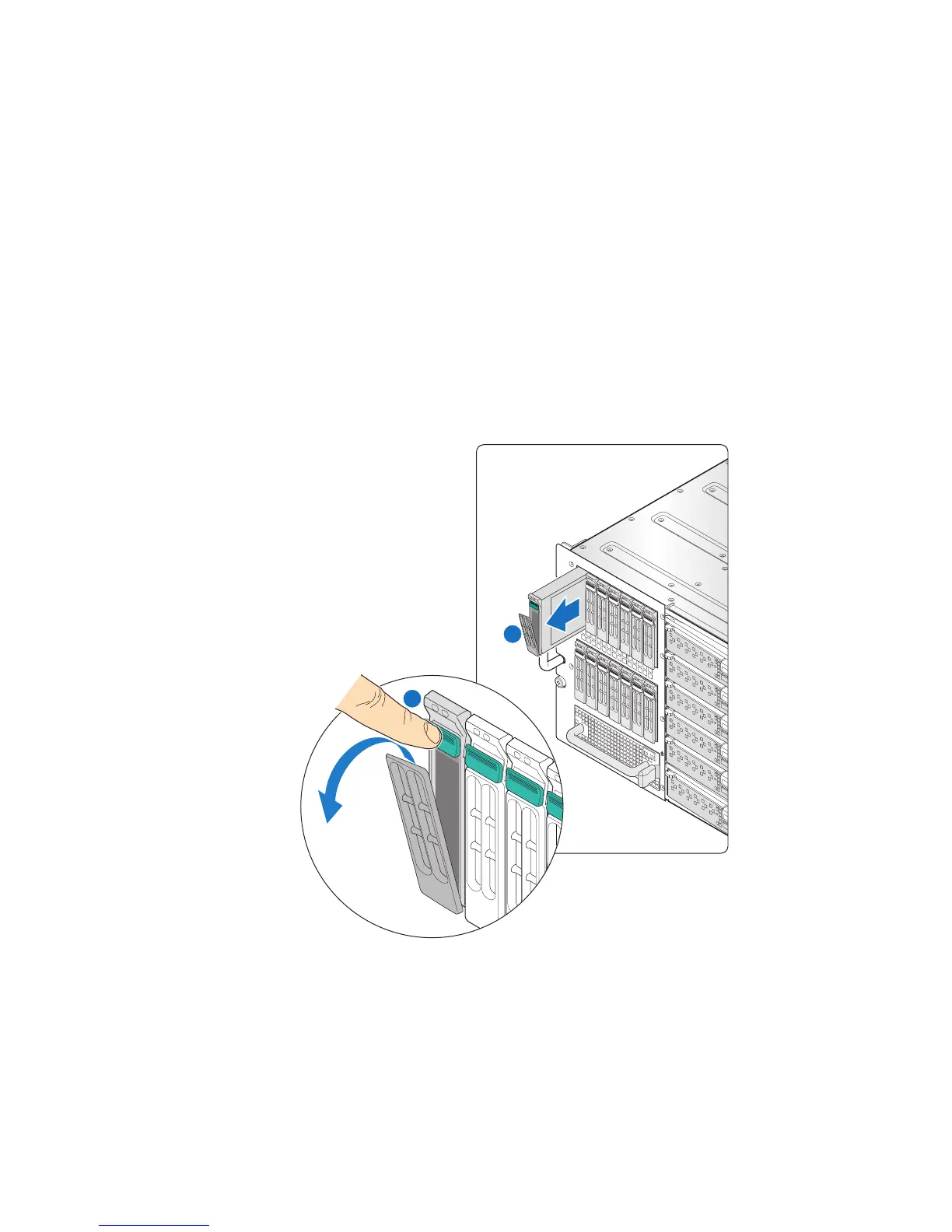

Figure 27. Removing a 2.5-inch Drive Carrier from a Drive Bay Module
3. With a Phillips* screwdriver, remove the four screws securing the filler panel to the
drive carrier.
AF002425
B
A
8
9
1
0
1
1
1
2
1
3
1
4
1
2
3
4
5
6
7
