Intel MFSYS25V2 Service Guide

Intel
®
Modular Server System Service Guide 9

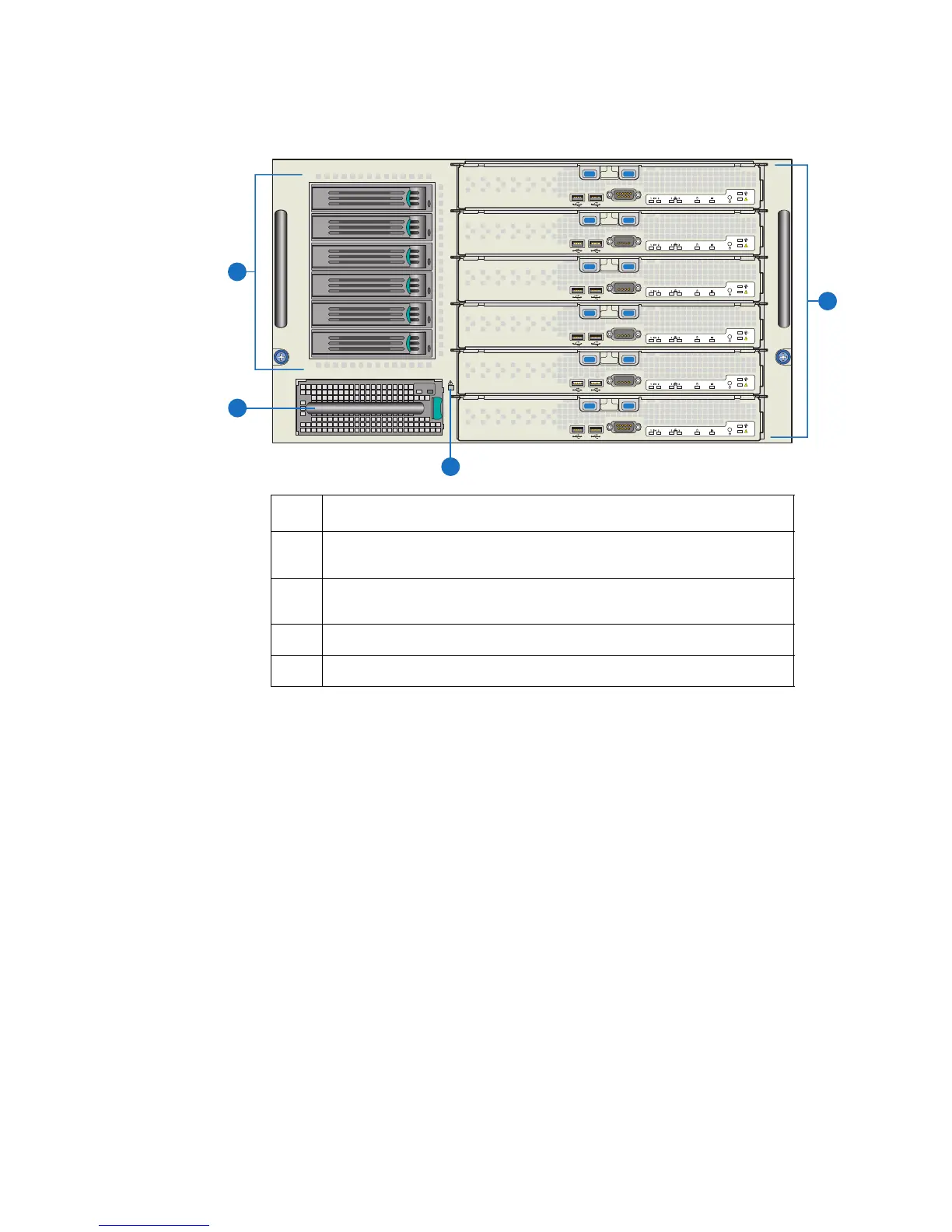

Figure 4. Front View of Intel
®
Modular Server System MFSYS35
Compute Module
The Intel
®
Modular Server System supports up to six compute modules. Each compute
module is a general-purpose server built around the following minimum features:
• Processor(s)
• Memory
• Integrated Baseboard Management Controller
• Network interface
• Storage control module
For more information, refer to the appropriate compute module Technical Product
Specification and User Guide.
Hard Disk Drive Bay Module
The Intel
®
Modular Server System has an integrated hard disk drive bay module with the
following features:
Item Description
A Compute modules or filler panels (six) [Compute Module 1 on top and
Compute Module 6 on bottom]
B Hard Disk Drive bay module with hot-swap 3.5-inch SAS or SATA hard
disk drives (6) [HDD 1 on top and HDD 6 on bottom]
C I/O cooling module
D System Status LED
A
AF002657
C
B
D
