Intel MFSYS25V2 Service Guide

62 Intel
®
Modular Server System Service Guide
17. Once loose, gently remove the midplane from the chassis taking note of the
orientation of the board as it is removed (see letter “B” in Figure 46).
Note: When removing the midplane, slightly tilt the top of the midplane towards the
rear of the chassis so that it is at an angle to allow removal from the chassis.

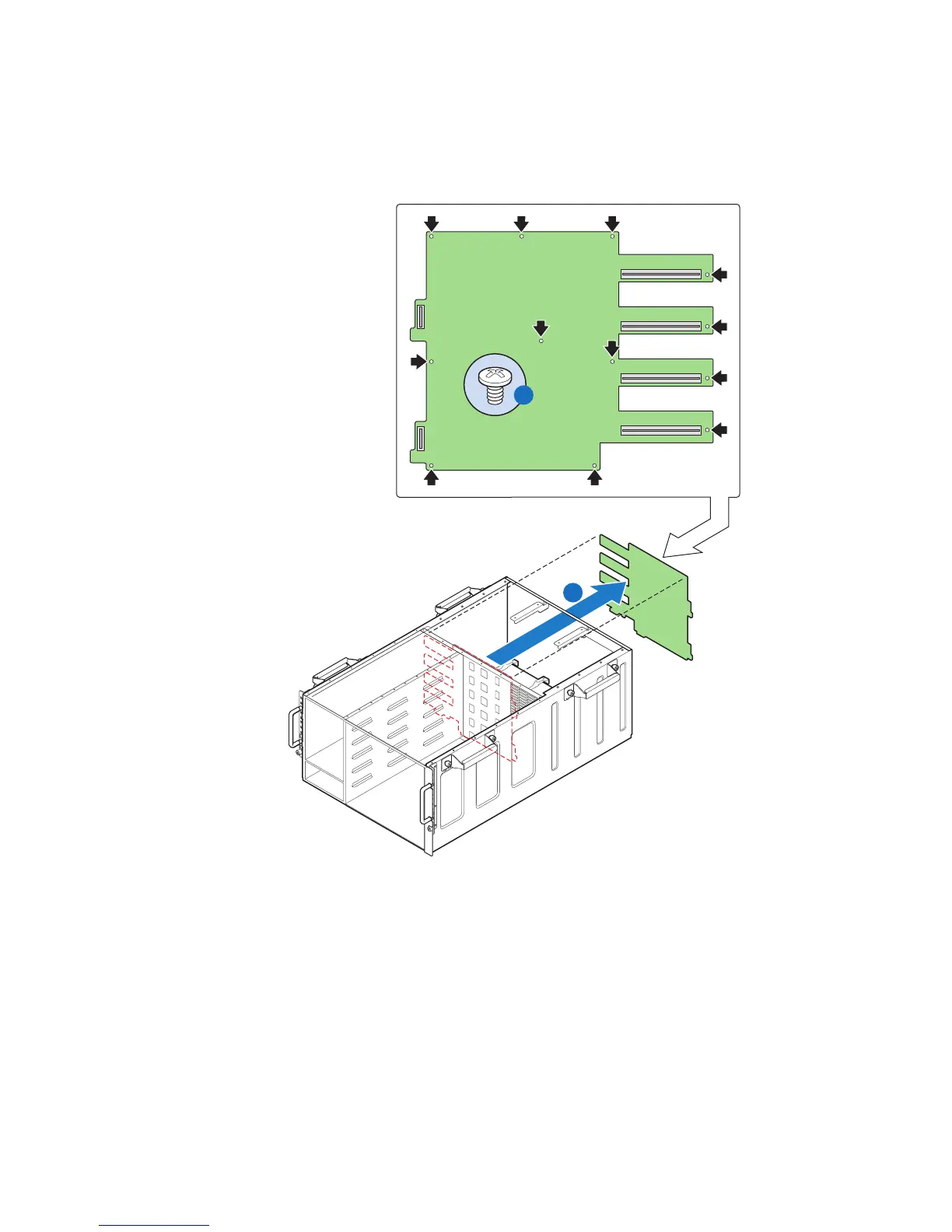

Figure 46. Removing the Midplane
B
AF003178
A
