112 Intel
®
Modular Server System Service Guide
storage control module highlighted in green. The current health and product summary
information is quickly available by moving the mouse over the Health/Information icon
located on the selected storage control module.

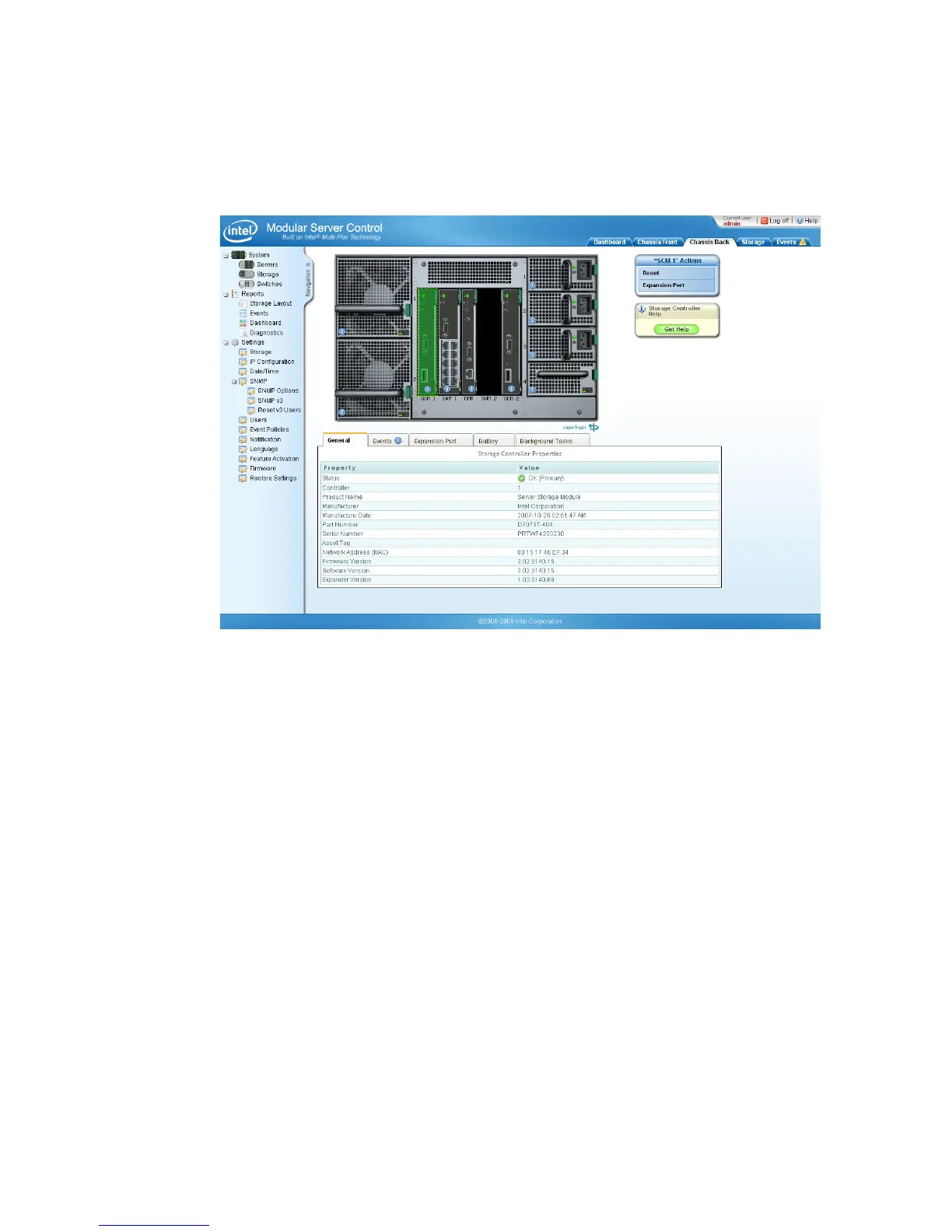

Figure 69. Intel
®
Storage Control Module View
Health Icons
The health icons are displayed on the graphical representation of the component when the
component is selected.
