30 Intel
®
Modular Server System Service Guide
6. Install the backup battery in the black plastic battery holder (see letter “A” in
Figure 17). Connect the battery cable to the battery connector on the printed circuit
board (see letter “B” in Figure 17).

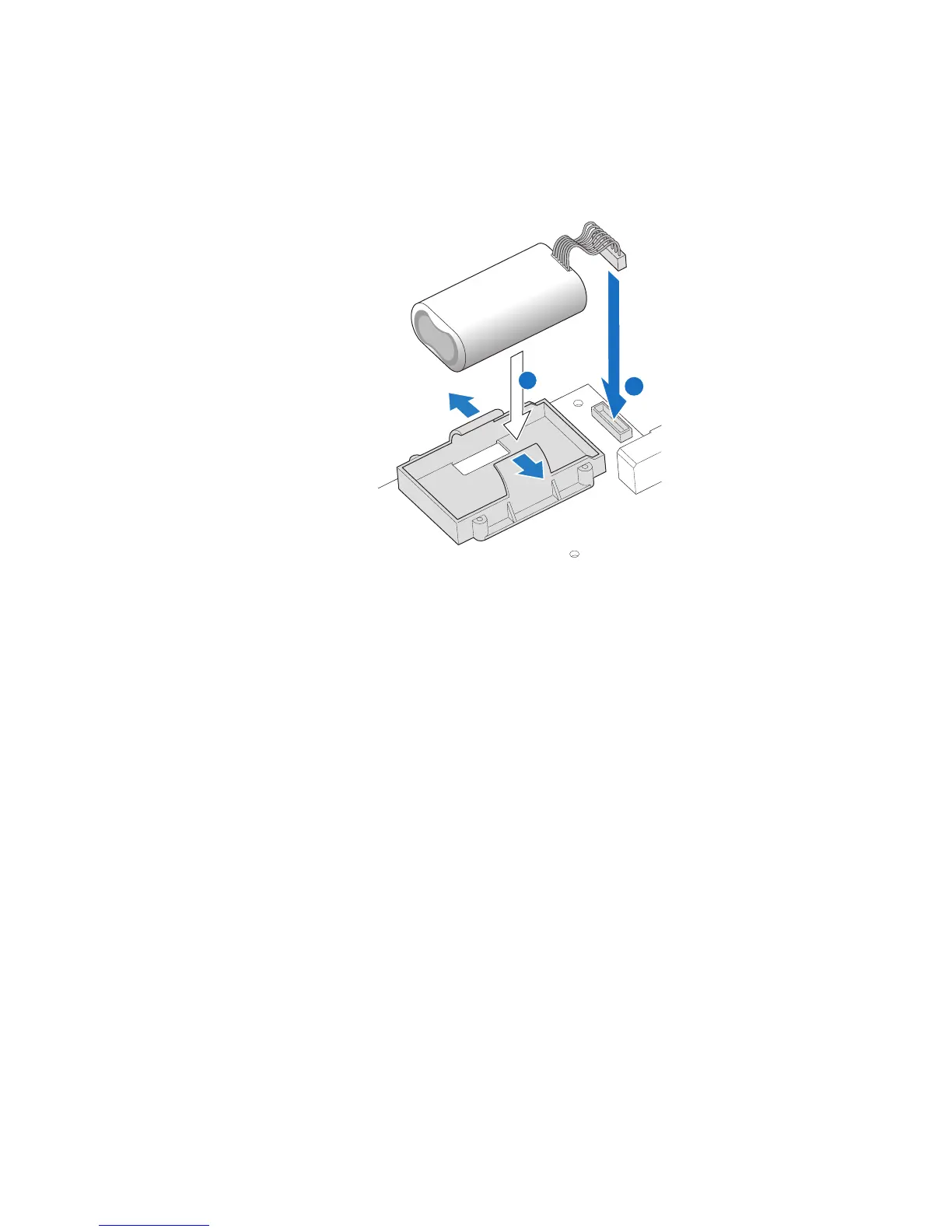

Figure 17. Installing Backup Battery
7. Align notches in the top cover with corresponding tabs in the storage control module.
Slide the top cover forward to close.
8. Secure the top cover to the storage control module with the two screws previously
removed.
9. Re-install the storage control module in the server system. For instructions, see
“Installing a Storage Control Module” on page 26.
Removing a Backup Battery
To remove a backup battery, follow these steps:
1. Review the safety and ESD information at the beginning of this manual and in the
appendices.
2. Remove the storage control module from the system. For instructions, see “Removing
a Storage Control Module” on page 27.
Warning: You must replace the storage control module with a filler panel or
another storage control module within two minutes.
A
B
AF002440
