Intel Thermal/Mechanical Reference Design Information
Thermal and Mechanical Design Guidelines 53

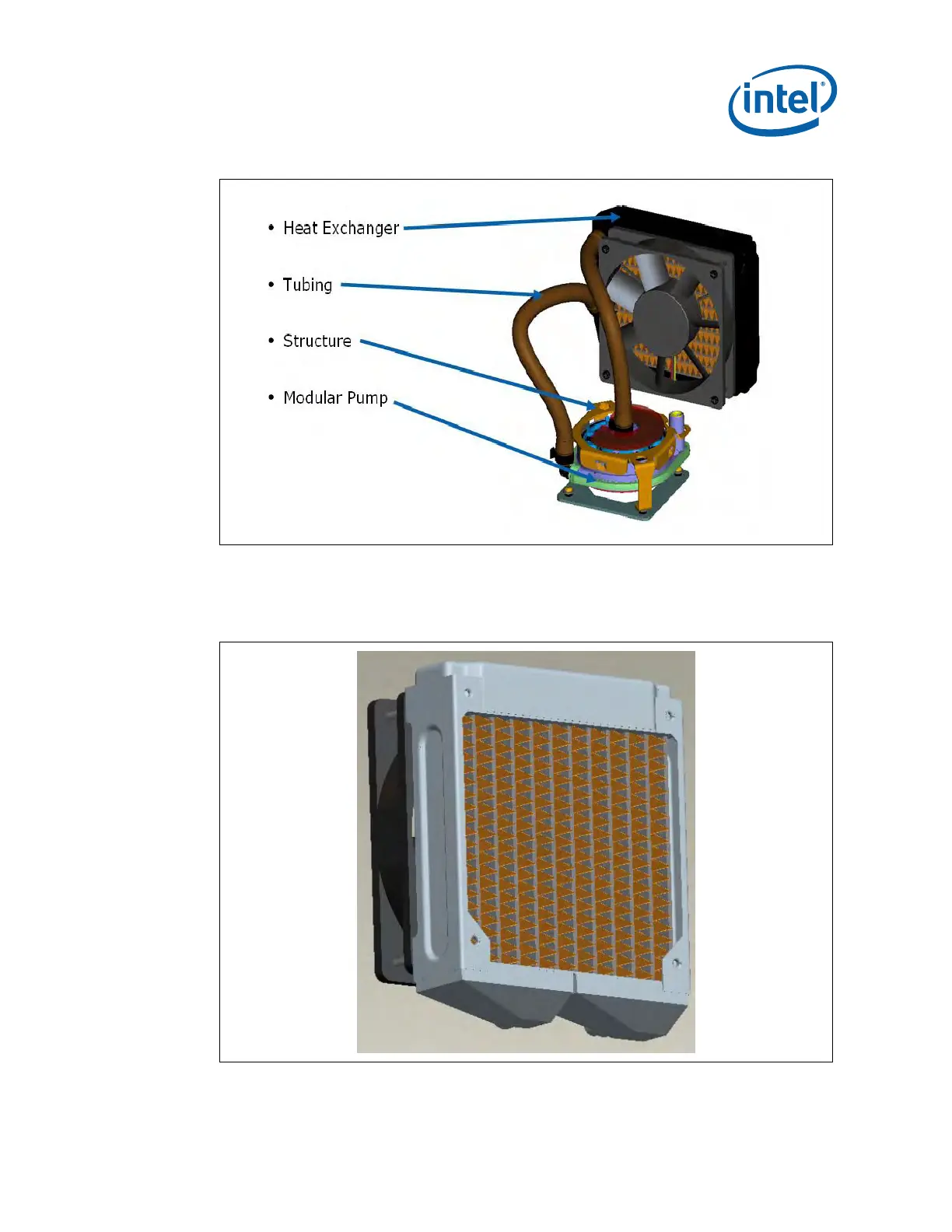

Figure 16. Intel
®
ALCT Reference Design Major Components
Development vendor information for the Intel
®
ALCT Reference Solution is provided in
Appendix A.
Figure 17. Heat Exchanger Fan Combination Foot Print View
