Intel QX9770 - Core 2 Extreme Quad-Core Processor User Manual

LGA775 Socket Heatsink Loading
54 Thermal and Mechanical Design Guidelines
5.6 Reference Attach Mechanism
The ALCT pump is attached to the motherboard through the use of a backside stiffener
plate. Prior to motherboard installation in the chassis the backside stiffener plate is
attached with two screws. Once installed these screws remain installed unless the
stiffener plate requires removal. After installation of the board into the chassis the
pump and upper structure are secured to the motherboard and backside stiffener with
two additional screws (
Figure 18). The heat exchanger is positioned on the back
panel and is secured in place using four screws provided in the accessory kit. The
heat exchanger can be mounted on most back panels that will accept 120 mm fans.
The range of recommended positions of the heat exchanger relative to the pump is
defined in
Figure 74.

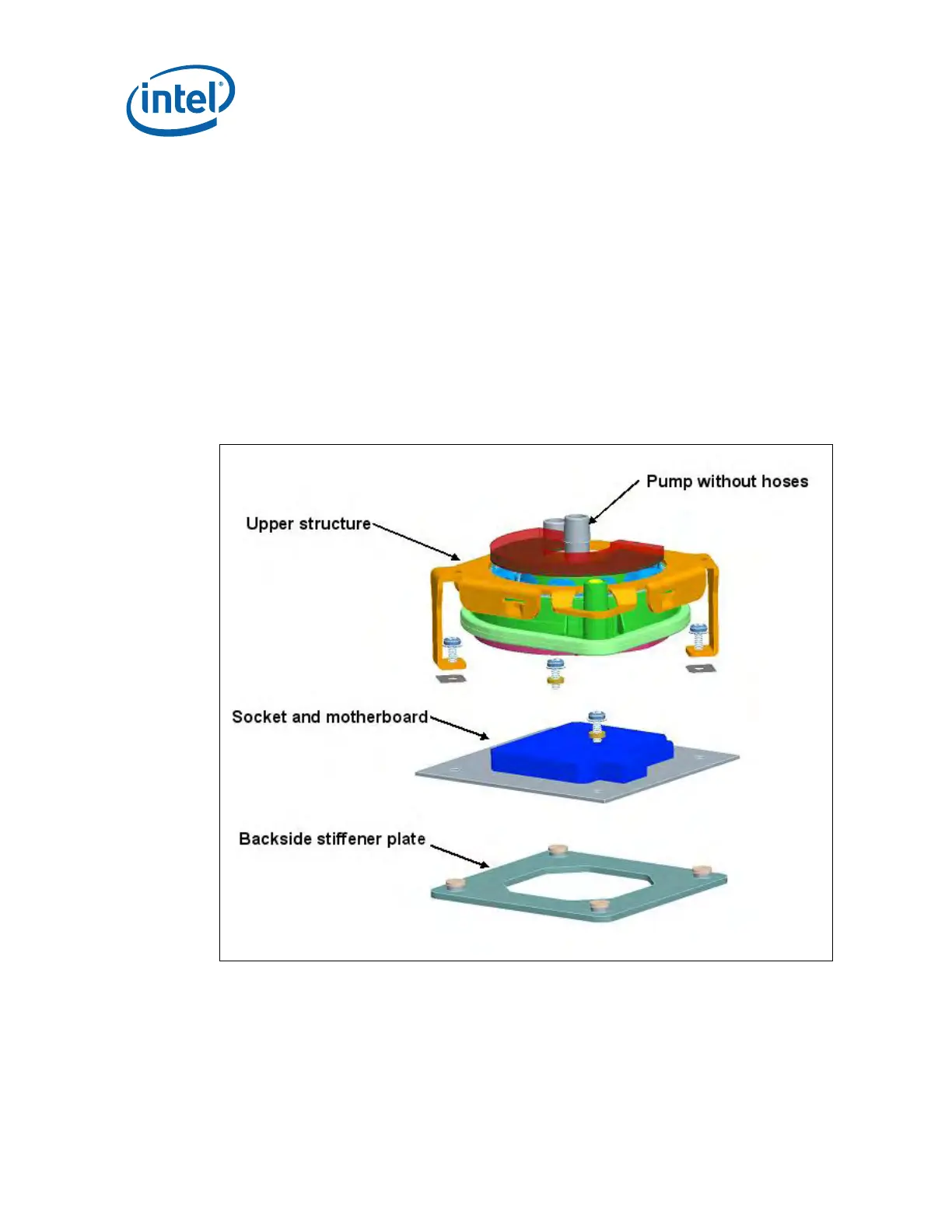

Figure 18. Structure to Motherboard Interface

Intel QX9770 - Core 2 Extreme Quad-Core Processor Specifications

General

Processor Number	QX9770
Number of Cores	4
Thread Count	4
Clock Speed	3.2 GHz
L2 Cache	12 MB
Bus Speed	1600 MHz
Thermal Design Power (TDP)	136 W
Socket	LGA 775
Manufacturing Process	45 nm
Max Operating Temperature	64.5°C
Virtualization Technology	Yes
64-bit Support	Yes
Instruction Set	SSE4.1
Memory Channels	2
Memory Types	DDR3
