Intel QX9770 - Core 2 Extreme Quad-Core Processor User Manual

Case Temperature Reference Metrology
92 Thermal and Mechanical Design Guidelines

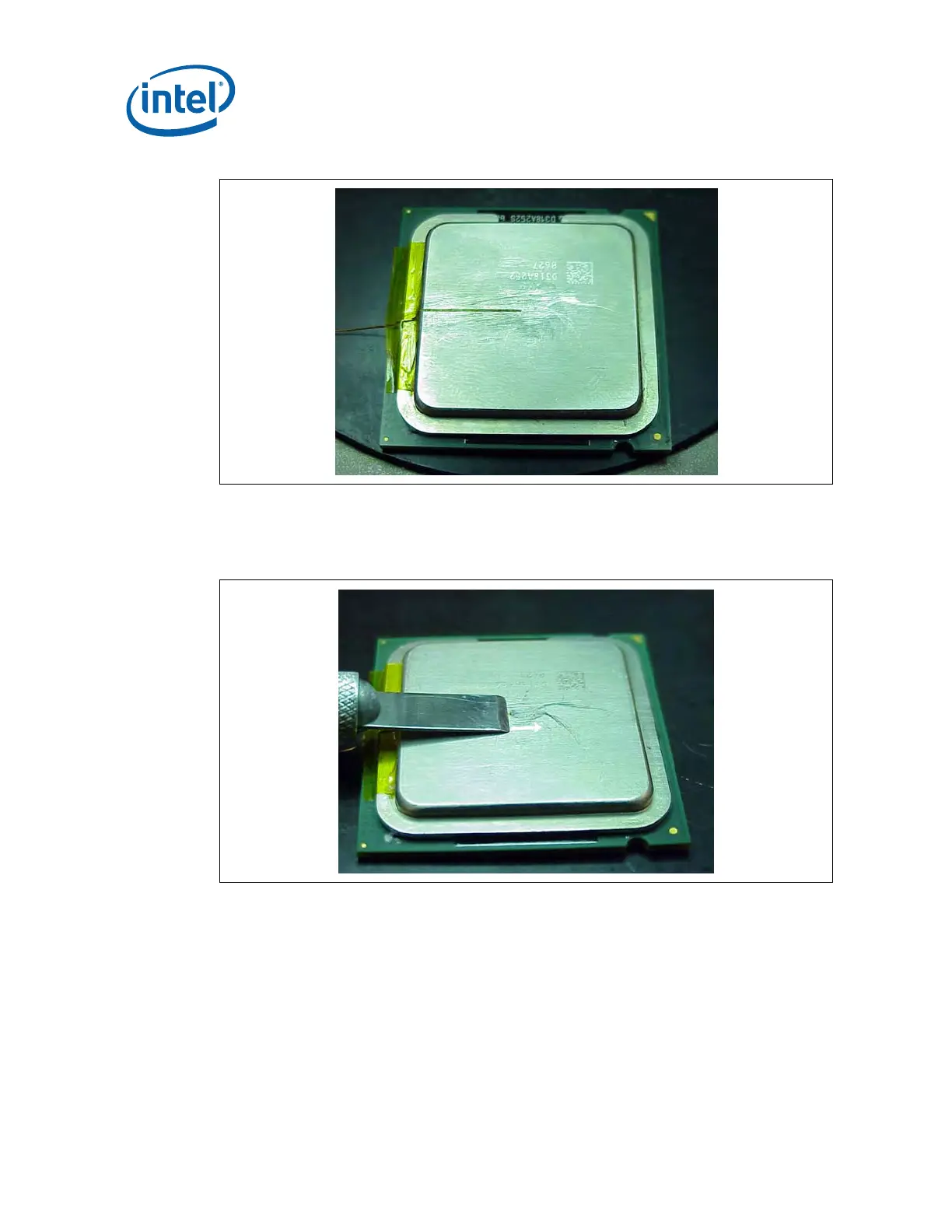

Figure 50. Thermocouple placed into groove
29. Using a blade carefully shave the excess solder above the IHS surface. Only shave
in one direction until solder is flush with the groove surface (
Figure 51).
Figure 51. Removing Excess Solder
Note: Take usual precautions when using open blades
30.
Clean the surface of the IHS with Alcohol and use compressed air to remove any
remaining contaminants.

Intel QX9770 - Core 2 Extreme Quad-Core Processor Specifications

General

Processor Number	QX9770
Number of Cores	4
Thread Count	4
Clock Speed	3.2 GHz
L2 Cache	12 MB
Bus Speed	1600 MHz
Thermal Design Power (TDP)	136 W
Socket	LGA 775
Manufacturing Process	45 nm
Max Operating Temperature	64.5°C
Virtualization Technology	Yes
64-bit Support	Yes
Instruction Set	SSE4.1
Memory Channels	2
Memory Types	DDR3
