Intel QX9770 - Core 2 Extreme Quad-Core Processor User Manual

Heatsink Clip Load Metrology
70 Thermal and Mechanical Design Guidelines
Remarks: Alternate Heatsink Sample Preparation
As mentioned above, making sure that the load cells have minimum protrusion out of
the heatsink base is paramount to meaningful results. An alternate method to make
sure that the test setup will measure loads representative of the non-modified design
is:
•
Machine the pocket in the heat sink base to a depth such that the tips of the load
cells are just flush with the heat sink base
•
Then machine back the heatsink base by around 0.25 mm [0.01”], so that the
load cell tips protrude beyond the base.
Proceeding this way, the original stack height of the heatsink assembly should be
preserved. This should not affect the stiffness of the heatsink significantly.

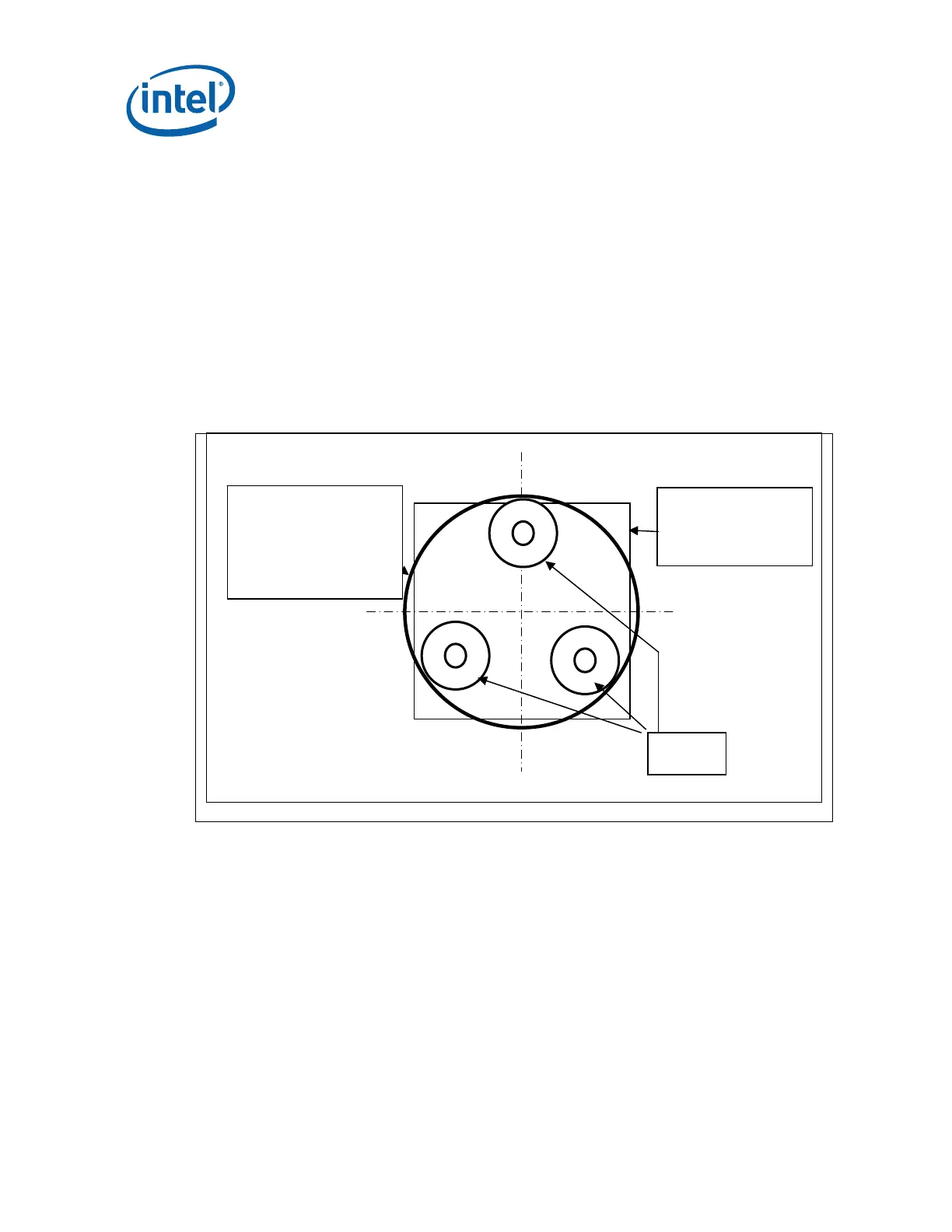

Figure 28. Load Cell Installation in Machined Heatsink Base Pocket – Bottom View
Package IHS
Outline (Top
Surface
)
Load Cells
Heatsink Base Pocket
Diameter ~ 29 mm
[~1.15”]

Intel QX9770 - Core 2 Extreme Quad-Core Processor Specifications

General

Processor Number	QX9770
Number of Cores	4
Thread Count	4
Clock Speed	3.2 GHz
L2 Cache	12 MB
Bus Speed	1600 MHz
Thermal Design Power (TDP)	136 W
Socket	LGA 775
Manufacturing Process	45 nm
Max Operating Temperature	64.5°C
Virtualization Technology	Yes
64-bit Support	Yes
Instruction Set	SSE4.1
Memory Channels	2
Memory Types	DDR3
