Attaching the Label to the I/O Shield
1. Remove the backing from the label included with your server board.
2. Press the label onto the outside face of the I/O shield.
TP00029
PARALLEL
KYBD
MOUSE
(Gbit)
NIC1
(Gbit)
NIC2
1
2
3
USB

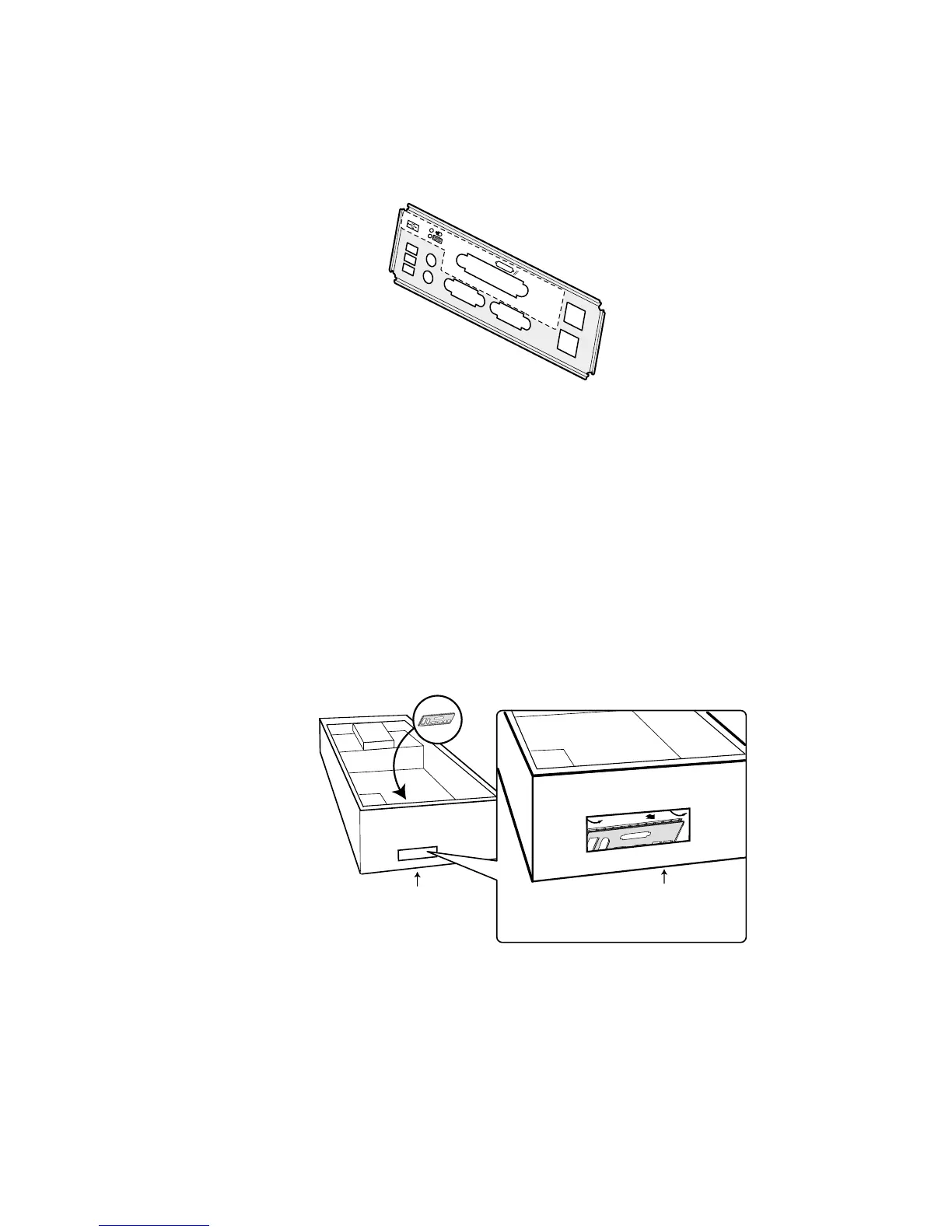

Figure 4. Attaching the Label to the I/O Shield
Installing the I/O Shield
The shield fits into the rectangular opening in the back of a chassis. It has cutouts that match the
I/O ports on the server board. Install the shield from inside the chassis before installing the server
board.
1. Position one edge so that the dotted groove is outside the chassis wall, and the lip of the shield
rests on the inner chassis wall.
2. Hold the shield in place, and push it into the opening until it is seated. Make sure the I/O shield
snaps into place all the way around.
OM14625
Chassis back
Shield installs
from inside
of chassis.
Rotate into chassis opening
until shield clicks into place.
Insert top edge
as shown.
Chassis back
Figure 5. Installing the I/O Shield

Intel SE7501HG2 Specifications

General

Form Factor	Extended ATX
Processor Socket	Socket 604
Chipset	Intel E7501
Maximum Memory	12 GB
Supported Memory Types	DDR SDRAM
USB Ports	4
Serial Ports	1
Parallel Ports	1
Supported CPU	Intel Xeon
Memory Slots	6
Storage Controllers	Intel ICH5
SCSI Controller	Adaptec AIC-7902W (optional)
Network Interface	2 x Intel 82546GB Gigabit Ethernet Controller
