Intel Server Board SE7501HG2 Product Guide
52
TP00104
3B
3A
1B
1A
2B
2A
CPU1
Socket

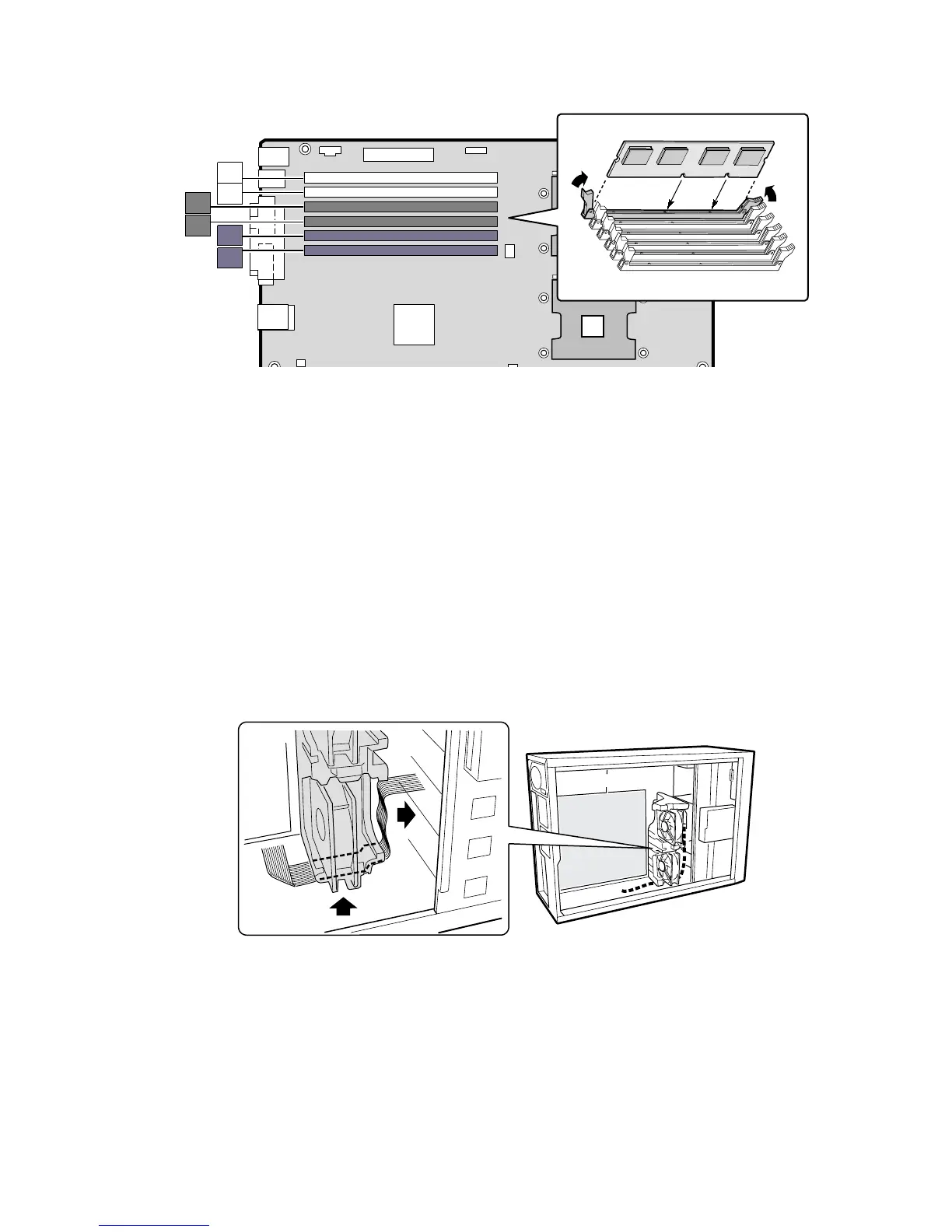

Figure 24. Installing Memory
Cable Routing for Intel SC5200 Base Chassis
To ensure proper air-flow within the chassis, follow the cable routing guidelines below.
IDE or SCSI Cables
Cables that connect to devices in the lower device bays should be routed around the epac system
fan carrier as shown below.
1. Route cables as shown.
2. Replace the top half of the epac.
OM14556
Figure 25. Routing Cables
