Intel SE7501HG2 User Manual

Installations and Upgrades
39
Installing the Processor and the Processor Wind Tunnel in the SC5200
Base Chassis or in a Reference Chassis
Use these instructions if you are installing a processor and the Processor Wind Tunnel (PWT) in the
SC5200 base chassis or in a reference chassis. If you are installing the Server Board SE7501HG2
in the Intel
®
Server Chassis SC5200 Hot Swap Redundant Power, disregard this section and instead
follow the instructions provided in the section titled, “Installing the Processor in the SC5200 Hot
Swap Redundant Power Chassis” on page 46.
If you are replacing a processor for which the PWT has already been installed, follow the
instructions provided on page 50 titled, “Replacing a Processor.”
1. Observe the safety and ESD precautions at the beginning of this chapter and the additional
precautions given here.
2. Remove power from your system by unplugging the AC power cord.
3. Remove the chassis cover (see your system or chassis documentation for instructions).
4. Lift the socket lever for the processor.
5. Align the pins of the processor with the socket, and insert the processor into the socket. Lower
the socket lever completely.
✏
NOTE
Make sure the alignment triangle mark and the alignment triangle cutout
align correctly. See Figure 9.
OM15042
A
B

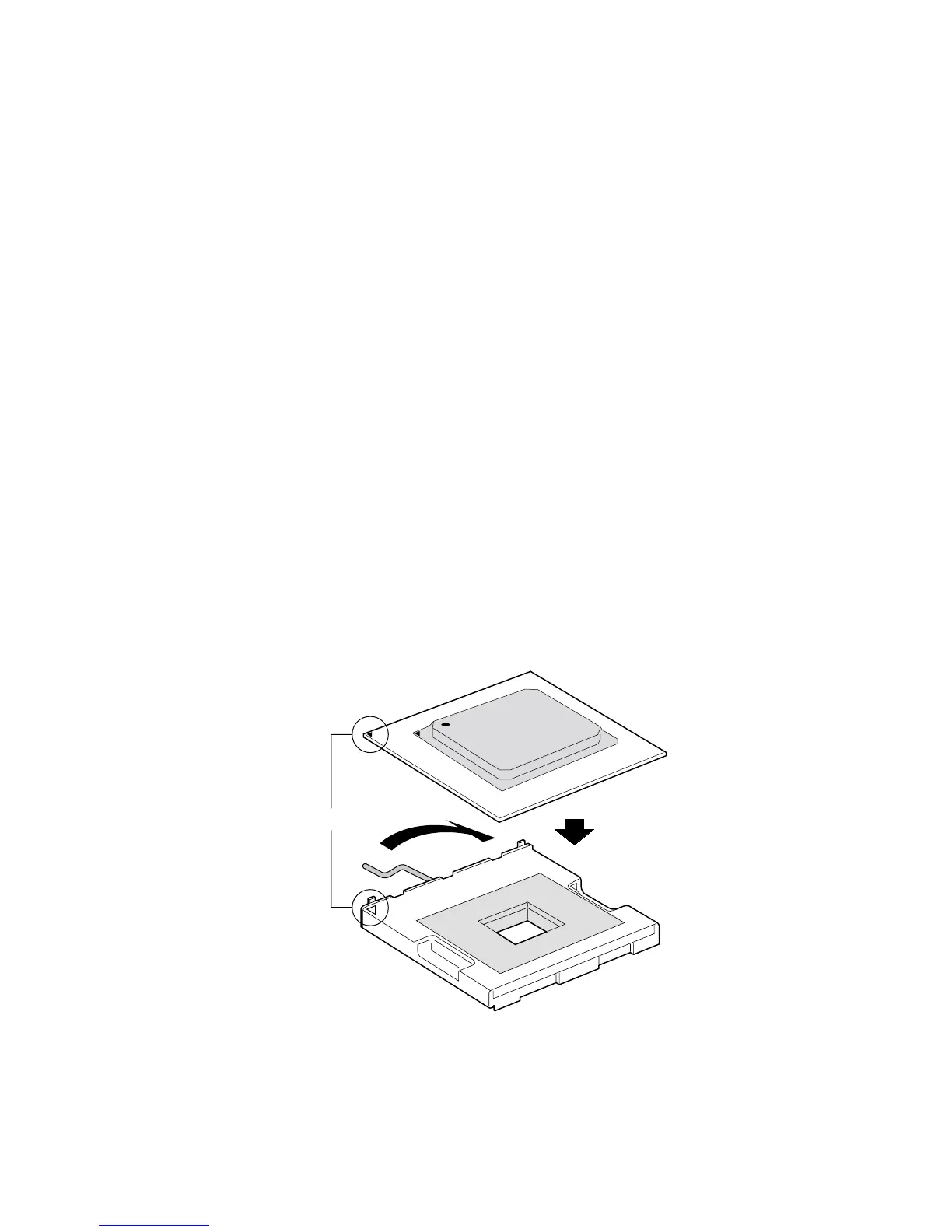

Figure 9. Opening Socket Lever and Attaching Processor
