Intellian C700 User Manual

22
C700 - Marine Satellite Communication System

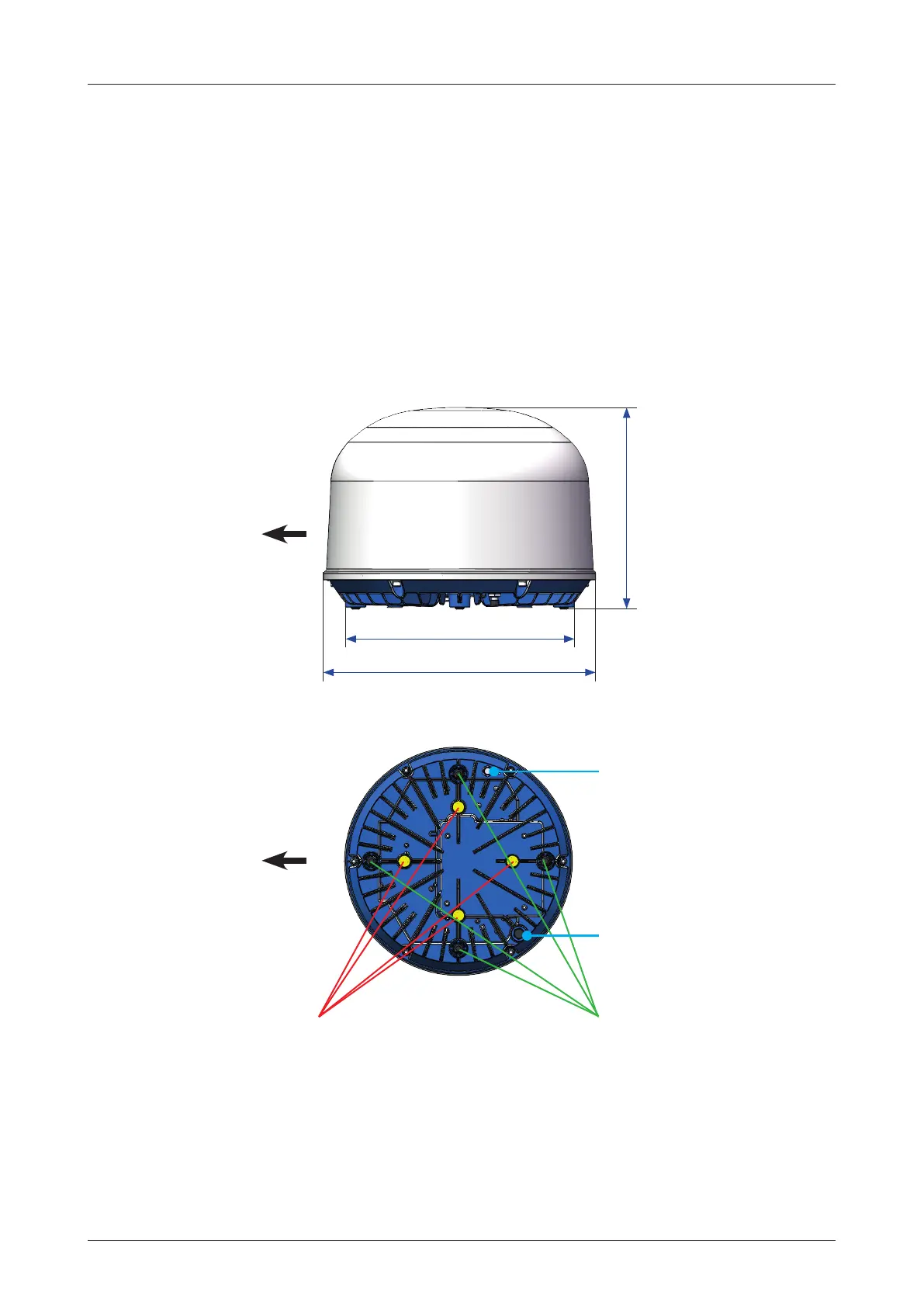

Figure 9: Antenna Dimensions
5.1 Antenna Dimensions
Conrm the height and diameter of the antenna unit shown in the following gure before installing it. To
protect the cable connectors on the radome bottom, the antenna is shipped from the factory with protective
stickers on the Inner Holes and protective covers on the Outer Holes .
Chapter 5. Installing ADU
Unit: mm (inch)
270 (10.62)
Ø311 (12.24)
Ø370 (14.56)
BOW
Cable Connector
Inner Holes Outer Holes
Vent Hole
BOW

Intellian C700 Specifications

General

Manufacturer	Intellian
Stabilization	3-axis
Wind Survival	50 m/s
Wind Operational	30 m/s
Compatibility	Inmarsat C
Mounting	Pole
Diameter	85 cm / 33.5 in
