3. Slide the BDU assembly into a 19" rack frame. Mount the screws in each side through the holes in
the front and fasten the screws to the rack. Make sure that the BDU assembly is mounted securely
according to the requirements for your 19" rack. In case of using a provided AC-DC adapter for AC
power connection, mount it securely in a safe place. After connecting all cables, x the cables on the
end of the connector tray using cable ties.
6.5 Setting up SIM Card
6.5.1 Inserting SIM Card
The system requires a SIM card from the service provider to use the terminal and congure the settings of
the BDU.

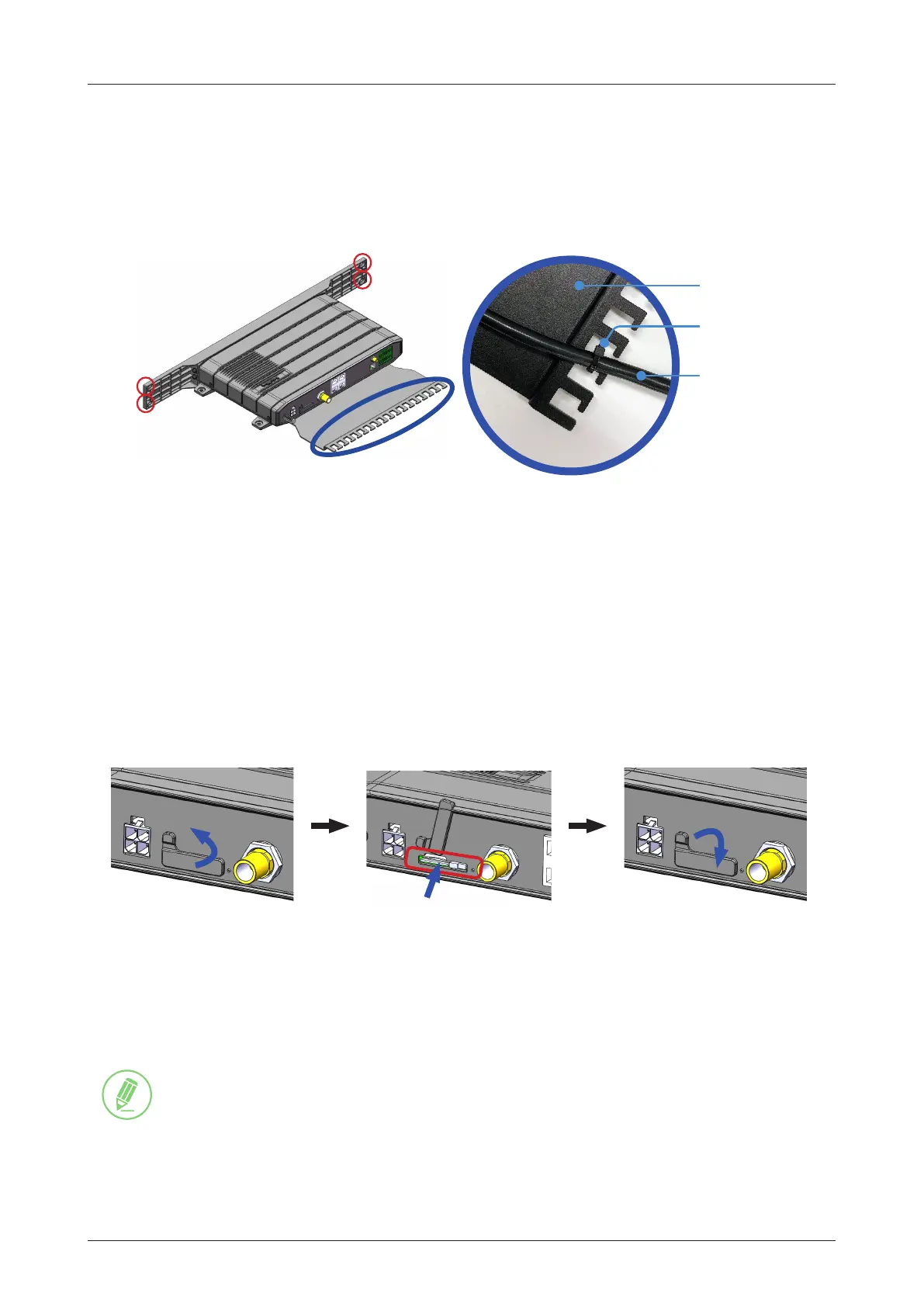

Figure 27: Mount BDU Assembly into 19" Rack
1. Pull the SIM card protective cover away from the BDU and expose the SIM card slot.
2. Install the SIM card by pushing it in the slot until it clicks into place. The contact surface of the SIM card
faces down.
3. After the SIM Card has been locked into place, secure the SIM Card cover.
Cable Tie
Cable
Connector Tray
NOTE
If the SIM card is not detected properly (“No USIM” message is displayed on the dashboard),
remove and re-insert the SIM card or turn the BDU power off and on again with the SIM card
inserted.
