3. Place the antenna on the pole-mounted bracket then tighten them using bolts. Before assembling bolts,
apply Loctite #263 to the bolt's threads to ensure the bolts are fastened rmly.
5.5 Vent Hole
In some weather conditions, there may occur condensation and moisture inside the ADU. The vent hole
is designed to allow easy air exchange and thus ensures that the enclosed area remains dry, and prevent
water condensation. There is no need to open the vent hole assembled at the factory.

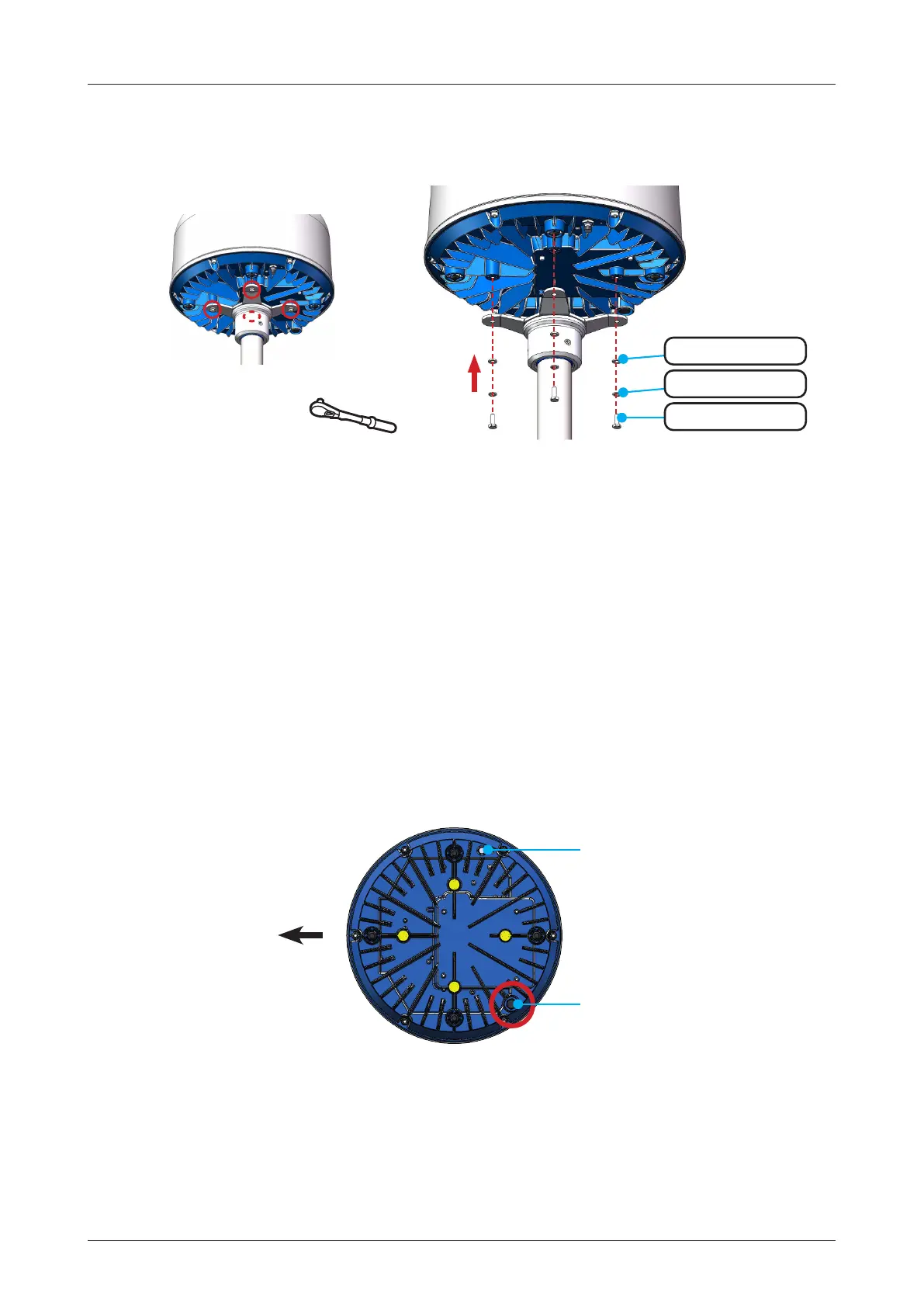

Figure 17: Mounting Antenna on Pole Mounted Bracket
Figure 18: Vent Hole
x Four Times
M6 x 20L Hex. Bolt
M6 Spring Washer
M6 Flat Washer
Use a torque wrench.
Vent Hole
BOW
Cable Connector
To Next Page
