32
C700 - Marine Satellite Communication System
6.3 BDU Mounting Template
The BDU mounting holes must be in the exact same place as shown in the provided mounting template
below.

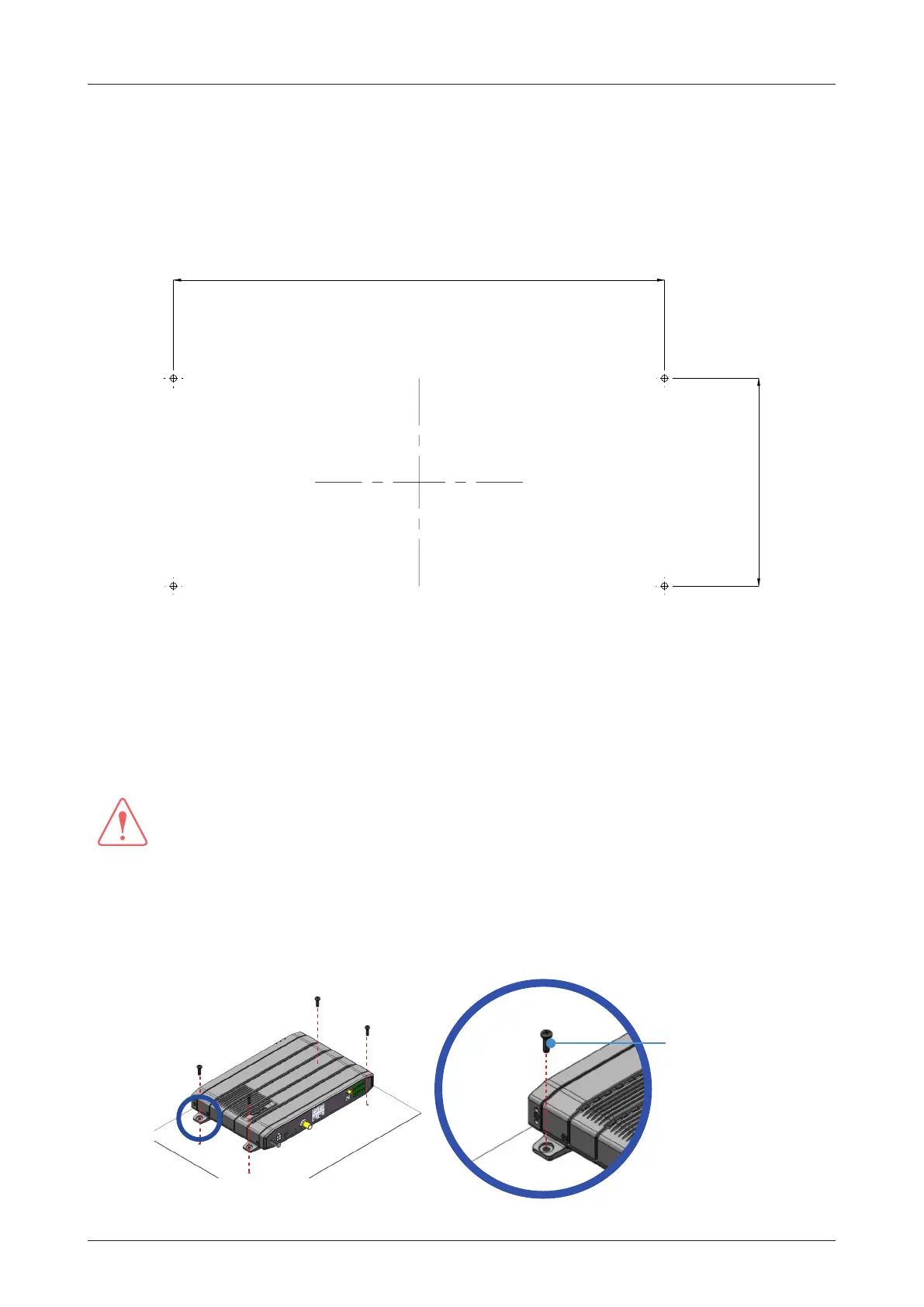

Figure 23: BDU Mounting Template
Drill Hole
Ф 3.8 mm (0.14")
diameter in
4 positions
300 mm (11.81")
126.8 mm (4.99")
6.4 Mounting BDU
The BDU can be mounted in any orientation but for best performance, Intellian recommends that it is mounted
horizontally.
Figure 24: Direct Mounting of BDU
6.4.1 Direct Mounting Type
The BDU is designed with four corner mounting holes to make direct mounting on the wall or desktop easily.
1. Mount the BDU on the mounting surface by inserting four screws through the mounting holes.
Tapping Screw,
M5 x 16L (4 ea)
WARNING
Ensure that the cables connected to the BDU are long enough to prevent damage when the BDU
is pulled out from the rack.
To Next Page
