27
Installing ADU
5.4.3 Mounting Antenna on Pole (Optional)
Intellian offers the Antenna Pole Mount Kit (separate purchase) to mount the antenna on the pole. The kit is
designed to work on the 40A pole. The kit has mounting holes that match the inner hole with M6 bolts on
the bottom of the antenna.
Name Diameter (inch) External Diameter (mm)
40A 1½
48.6
1. When mounting antenna on the 40A pole, the 40A pole bushing needs to be installed inside pole tube
additionally.
A
The one hole of the pole tube must be aligned with the BOW direction. Place the 40A
pole bushing inside pole tube, then tighten them on the
top end of the 40A pole using bolts. Before
assembling bolts, apply Loctite #263 to the bolt's threads to ensure the bolts are fastened rmly.
*The pole tube Inner Diameter is Ø52 mm.
2.
A
The end of one leg of the pole bracket must be aligned with the BOW direction. Place the pole
bracket onto the pole tube then tighten them using bolts. Before assembling bolts, apply Loctite #263 to
the bolt's threads to ensure the bolts are fastened rmly.
M6 x 20L Hex. Bolt
M6 Spring Washer
M6 Flat Washer
x Four Times
Pole Bracket
Pole Tube
Use a torque wrench.
BOW
A

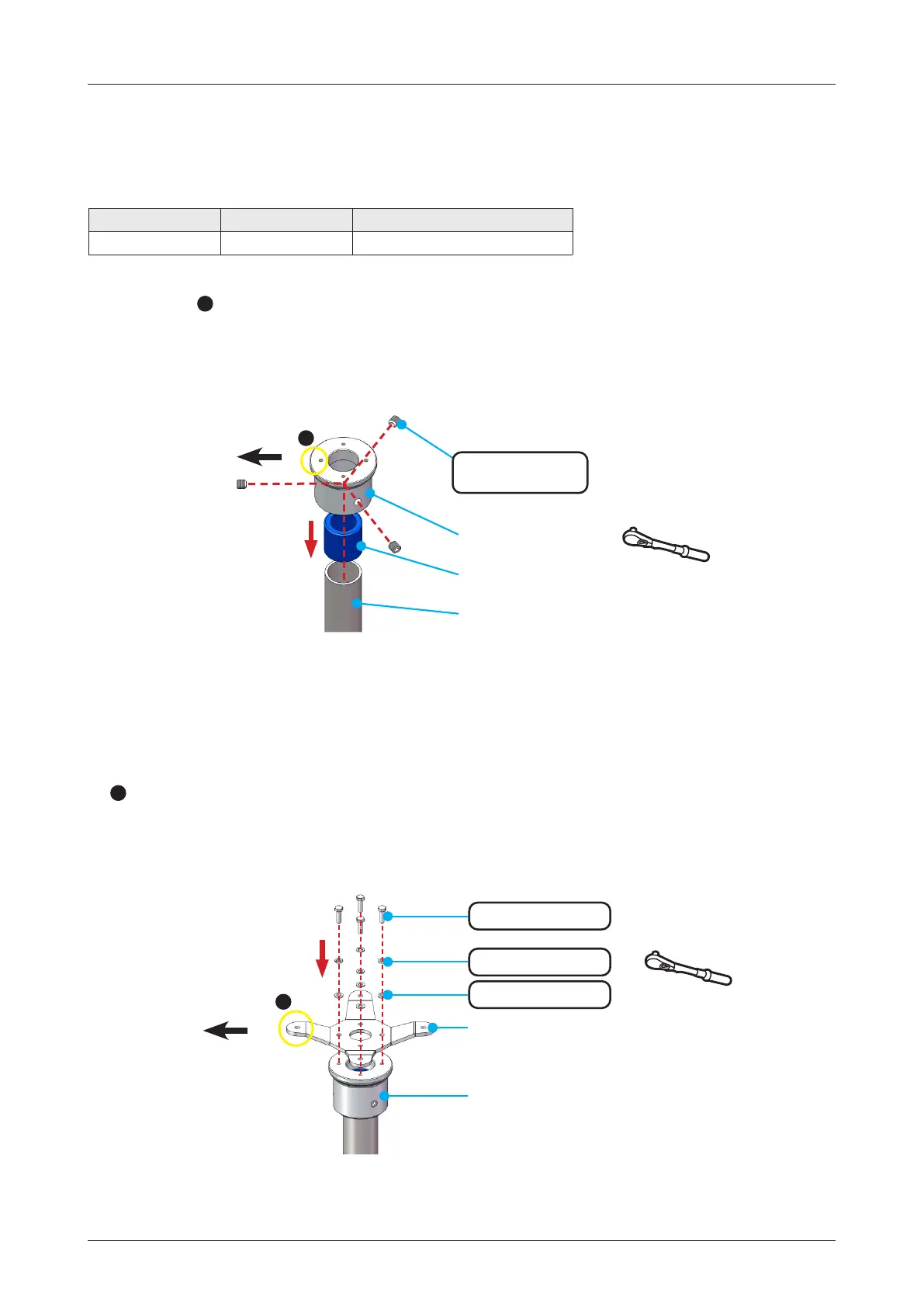

Figure 15: Installing 40A Pole Bushing inside Pole Tube
Figure 16: Installing Pole Bracket
Use a torque wrench.
x Three Times
M12 x 12L
Socket Set Screw
40A Pole Bushing
*Pole Tube
40A Pole
BOW
A
To Next Page
