Installing BDU
6.4.2 19-inch Rack Mounting Type (Optional)
Intellian offers the BDU Rack Mount Kit (separate purchase) including the
rackmount plate and connector
tray
to mount the BDU in a 19" rack
.

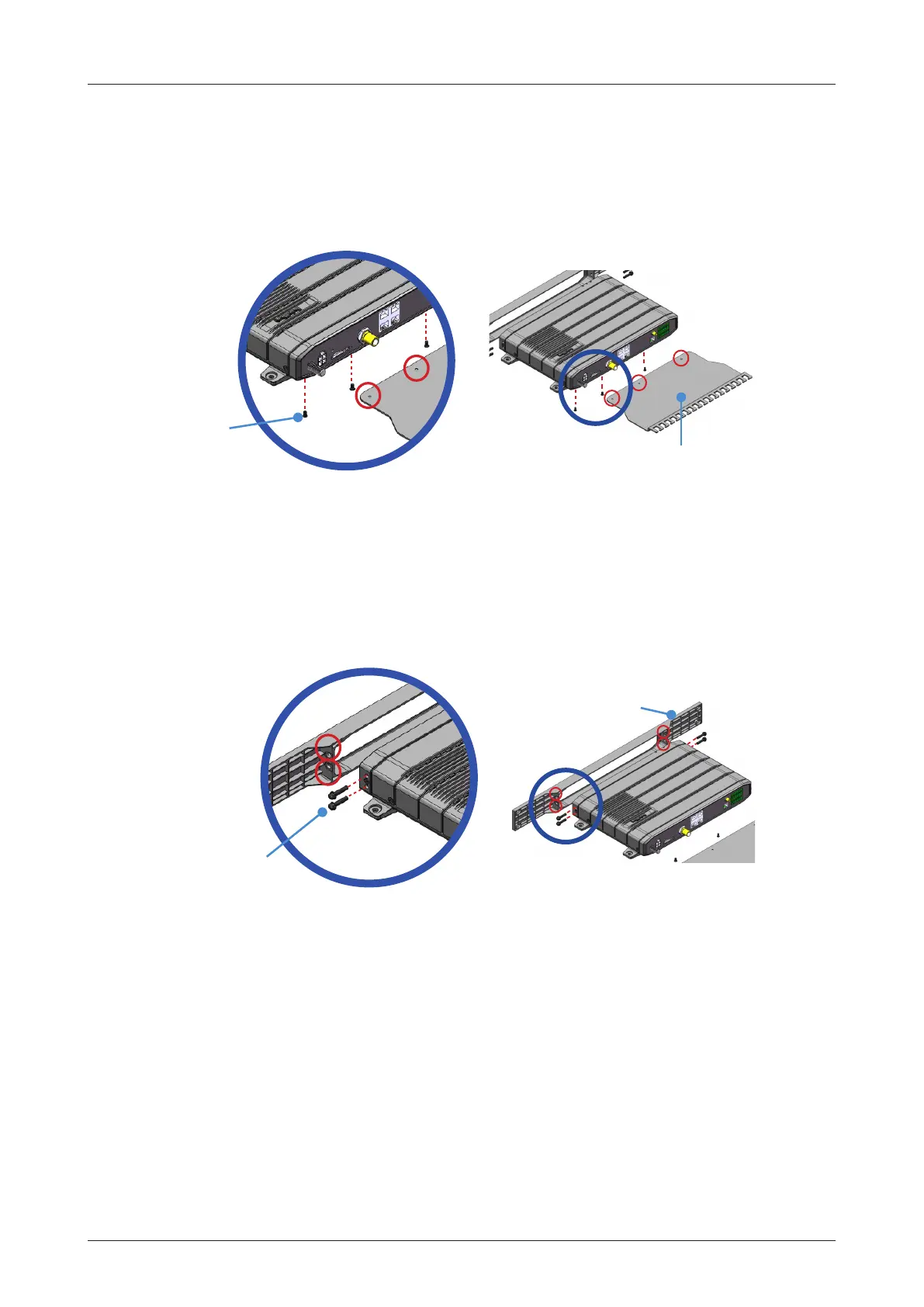

1. Using the Screws supplied, attach the connector tray to the BDU.
Figure 26: Attach Rackmount Plate to BDU
Figure 25: Attach Connector Tray to BDU
Flat Head Screw,
M3 x 6L (3 ea)
Connector Tray
2. Using the Screws supplied, attach the rackmount plate to the BDU.
Pan Head Screw
(with Spring & Flat Washer),
M4 x 16L (4 ea)
Rackmount Plate
