31
Installing BDU

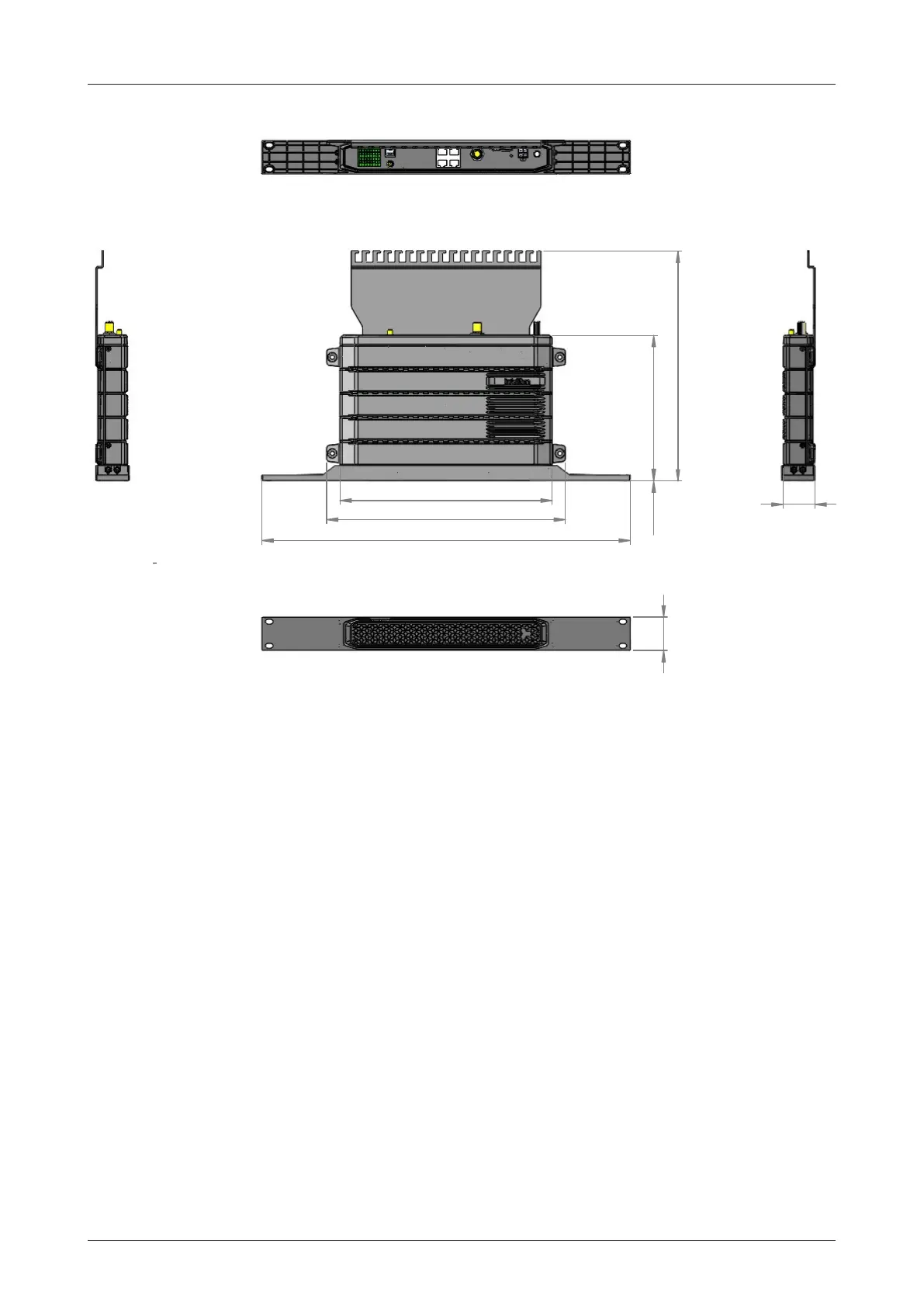

Figure 22: BDU Dimensions (19-inch Rack Mounting Type_Optional)
6.2 Selecting BDU Installation Site
The BDU should be installed below the deck in a location that is dry, cool, and ventilated. The front panel of
BDU should be easily accessible to users.
Unit: mm (inch)
44.1
(1.74)
303 (11.93)
191.5 (7.54)
0.5 (0.0)
42 (1.65)
280 (11.02)
315 (12.40)
485.7 (19.12)
