23
Installing ADU
5.2 ADU Mounting Hole Pattern
Use the supplied mounting template when drilling mounting holes on the mast. The hole placement for the
antenna must match the mounting hole pattern on the template.
The lower radome has two types of industry-standard mounting holes, each with four mounting points. This
hole pattern is compatible with other companies' mounting holes. Select one of the two mounting types to
secure the antenna to the desired mounting surface.
• Inner Hole Type: Mount the antenna using 'Inner Drill Holes' (with M6 Bolts). Intellian offers the
Antenna Pole Mount Kit (separate purchase) that uses Inner Holes (with M6 Bolts) to mount the antenna
on a pole.
• Outer Hole Type: Mount the antenna using 'Outer Drill Holes' (with M10 Bolts). Make a cut-out in the
ange using the 'Cutting Hole for Cable Connector' patten to avoid hiding the cable connector. Make
a cut-out in the ange using the 'Cutting Hole for Vent Hole' patten to avoid hiding the vent hole.

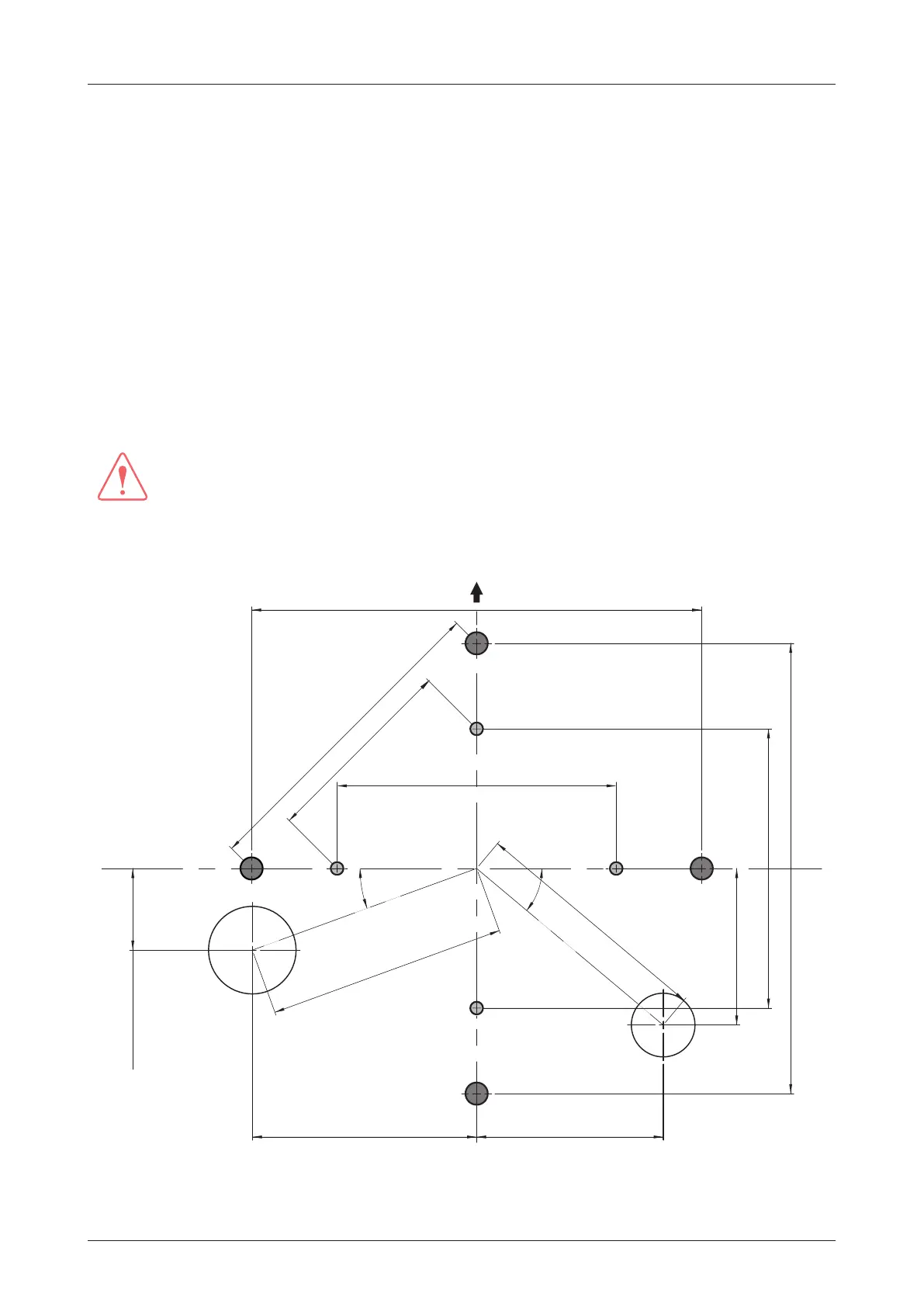

Figure 10: ADU Mounting Hole Pattern
Bow
20
°
153
mm (6.02")
40
°
282.84 mm (11.13")
150
mm (5.90")
51.30 mm (2.02")
141 mm (5.55")
175.40 mm (6.90")
282.84 mm (11.13")
124
mm (4.88")
200
mm (7.87")
117.20 mm (4.61")
98.35 mm (3.87")
Outer Drill Hole
Ф 14mm (0.55")
diameter in 4 positions
Inner Drill Hole
Ф 8mm (0.31")
diameter in 4 positions
Cutting Hole
for Cable Connector
Ф 55mm (2.16")
Cutting Hole
for Vent Hole
Ф 40mm (1.57")
175.40 mm (6.90")
Antenna Mounting Template
Doc. No. KC7011
NOTE: This is a real-size template. Make sure the hole
placement for the antenna is the same with the template
even though the mast has a different shape, and mount
the antenna on a flat surface of the mast.
WARNING
When reusing an existing mast, check the condition of holes on the mast and make sure those are
proper to use compared to the hole locations and sizes printed on the mounting template.
