C700 - Marine Satellite Communication System

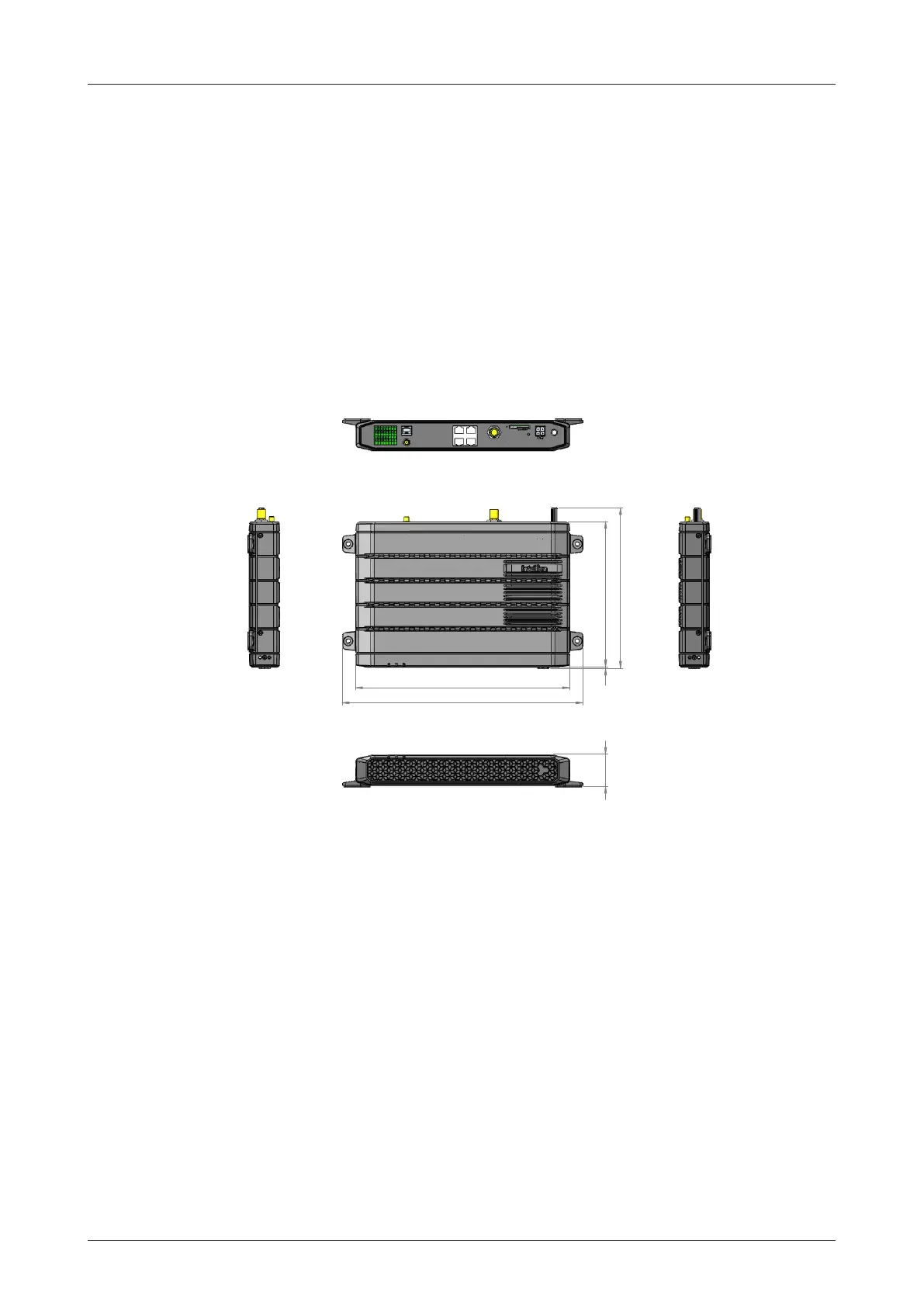

Figure 21: BDU Dimensions (Direct Mounting Type)
Chapter 6. Installing BDU
The Intellian offers two versions of BDU installation, one can be installed to the surface of the wall or desktop,
and one can be installed to the 19-inch rack frame using the
BDU Rack Mount Kit (separate purchase)
.
6.1 BDU Dimensions
Conrm the dimension of the BDU before installing it.
Unit: mm (inch)
42.1
(1.65)
2
(1.65)
190 (7.48)
210 (8.2)
280 (11.02)
315 (12.40)
