1BChapter 2: Installation

TruVision DVR 11 and DVR 11c User Manual 9

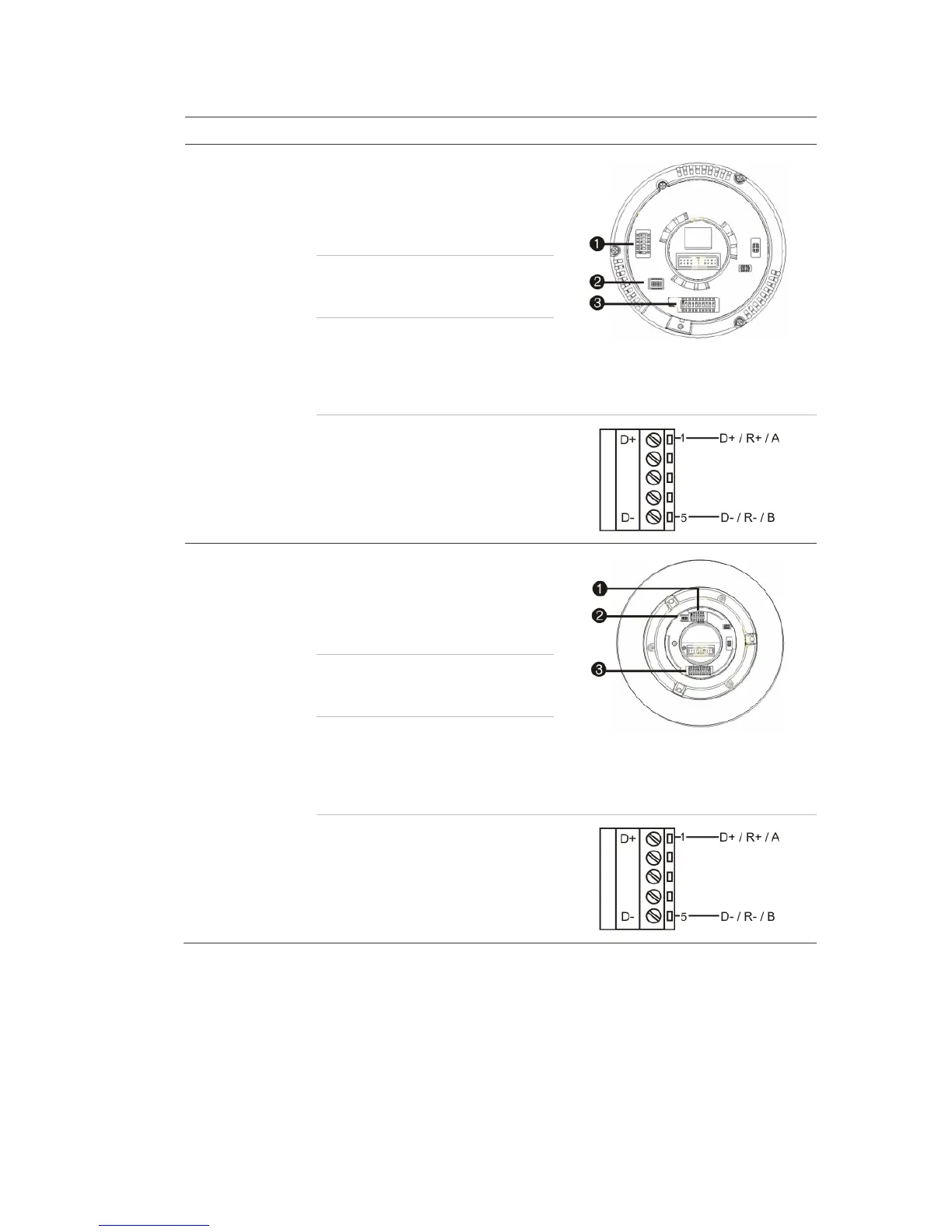

Table 3: PTZ protocols for Interlogix cameras

Camera

Switch setting

TruVision Mini PTZ

12X: Indoor Dome

Protocol DIP

switches:

• RS-485 (on DVR): 000000

1. Protocol DIP switches

2. RS-

485 communication DIP switches

3. Camera ID DIP switches

• RS-422 (on I/O

box):

100000

RS-485

communication DIP

switches:

110000

Camera ID DIP

switches:

Select the

camera ID

DIP switch

address as

required

RS-422/RS-485 data connector:

TruVision Mini PTZ

12X: Outdoor

Dome

Protocol DIP

switches:

• RS-485 (on DVR): 000000

1. Protocol DIP switches

2. RS-485 communication DIP

switches

3. Camera ID DIP switches

• RS-422 (on I/O

box):

100000

RS-485

communication DIP

switches:

110000

Camera ID DIP

switches:

Select the

camera ID

DIP switch

address as

required.

RS-422/RS-485 data connector:
