Intermec PB22 User Manual

Chapter 1 — Using the PB22 and PB32 Mobile Label and Receipt Printer
18 PB22 and PB32 Mobile Label and Receipt Printer User Guide

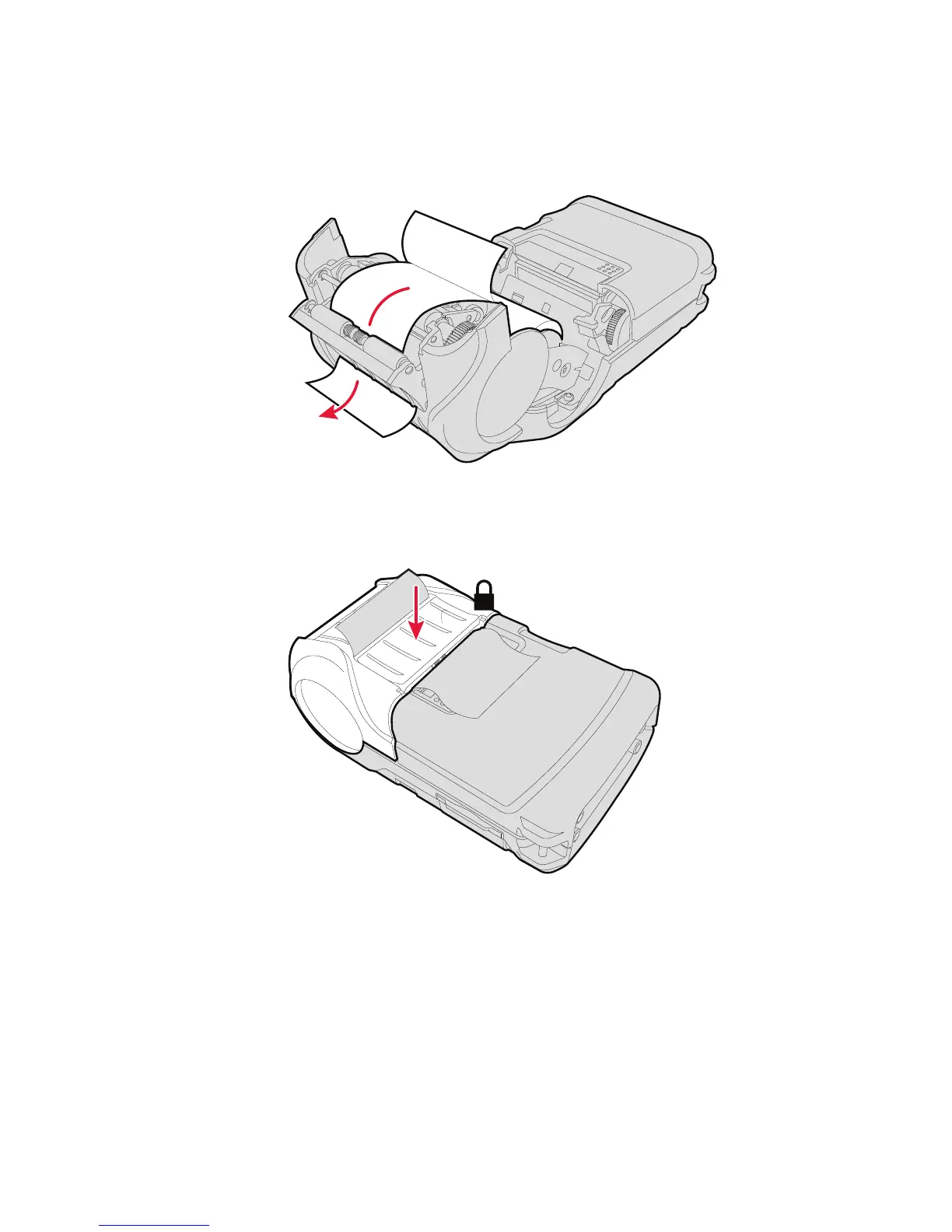

4 Feed the label liner over the self-strip bar and out the back of the
self-strip door.
5 Close the media cover until it latches and press down on the
self-strip door to make sure it locks. The separated liner and media
spool from the self-strip mechanism.

Intermec PB22 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Battery type	Built-in battery
Battery voltage	7.2 V
Bundled software	IPL, Fingerprint, ZSim (ZPLII Simulation), ESC-P, DSim
Media types supported	Labels
Operating temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	176 mm
Width	101 mm
Height	71 mm
Weight	678 g
