Goodrive200 inverters Installation guidelines
22
4.2.2 Installation direction
The inverter may be installed on the wall or in a cabinet.
The inverter must be installed in an upright position. Check the installation site according to
the requirements below. Refer to chapter Dimension Drawings in the appendix for frame
details.

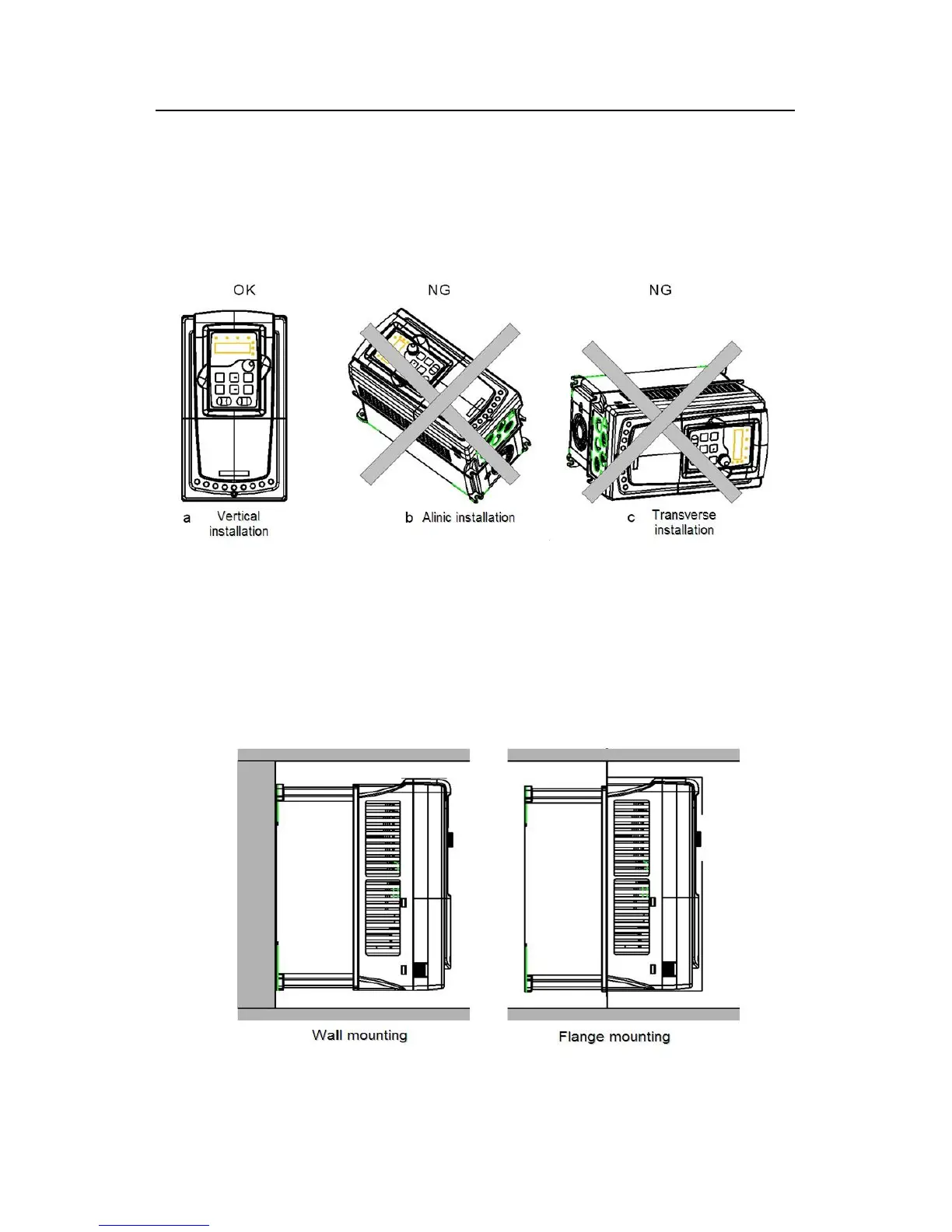

Fig 4-1 Installation direction of the inverter
4.2.3 Installation manner
The inverter can be installed in two different ways, depending on the frame size:
a) Wall mounting (for the inverter≤315kW)
b) Flange mounting (for the inverter≤200kW). Some need optional fange intallation board.
c) Floor mounting (220kW≤the inverter≤500kW). Some need optional base.
Fig 4-2 Installation manner
