Goodrive300-21 integrated machine for air compressor Commissioning guidelines
-13-
AC power
Main motor
R, S, T, ground wire through hole
U1, V1, W1, ground wire through hole
Through-hole of controlling cable
Fan
U2, V2, W2, ground wire through hole
Through-hole of
optional parts cable
Through-hole of
controlling cable
Ventilation hole at the bottom of
integrated machine

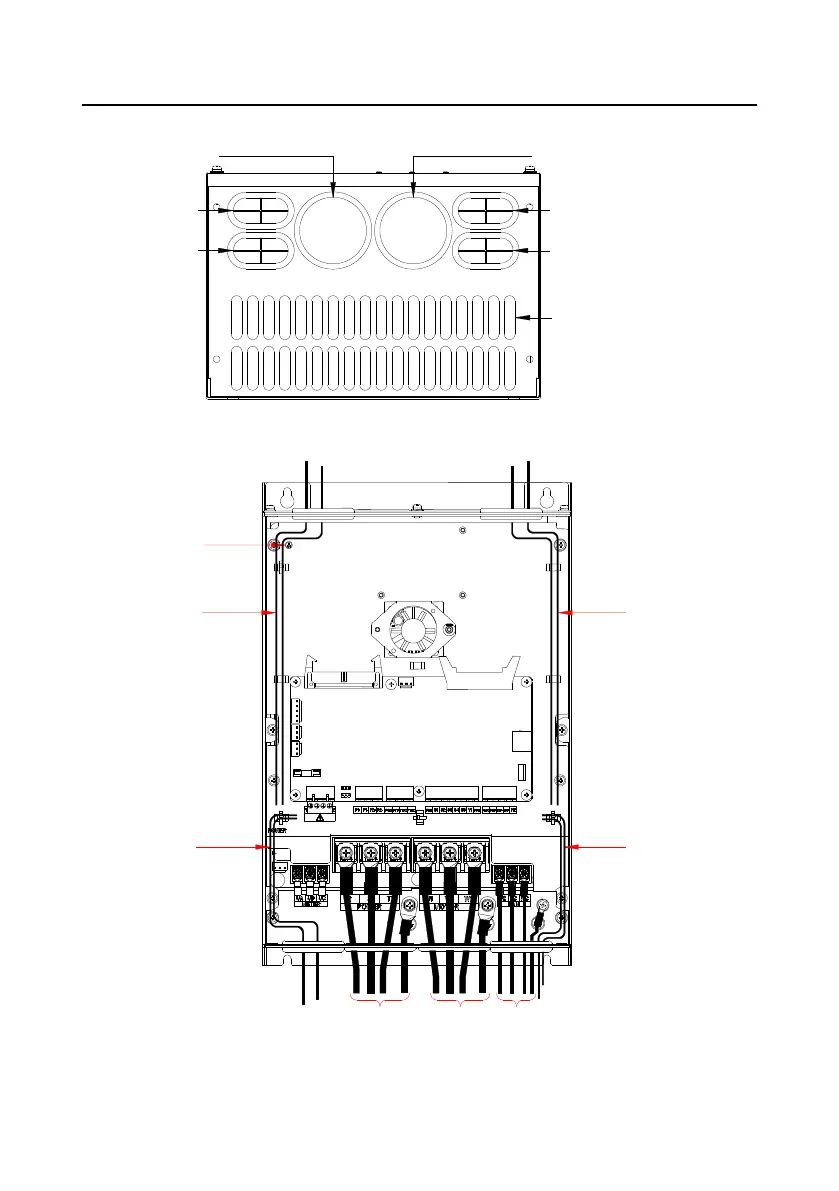

Figure 4-2 Bottom view for 15–22kW
Controlling cableControlling
cable
Controlling cable Controlling cable
AC power cable
Main motor
cable
Fan cable
Data collection
terminal
shielded cable
grounding
Figure 4-3 Front wiring diagram for 15–22kW
